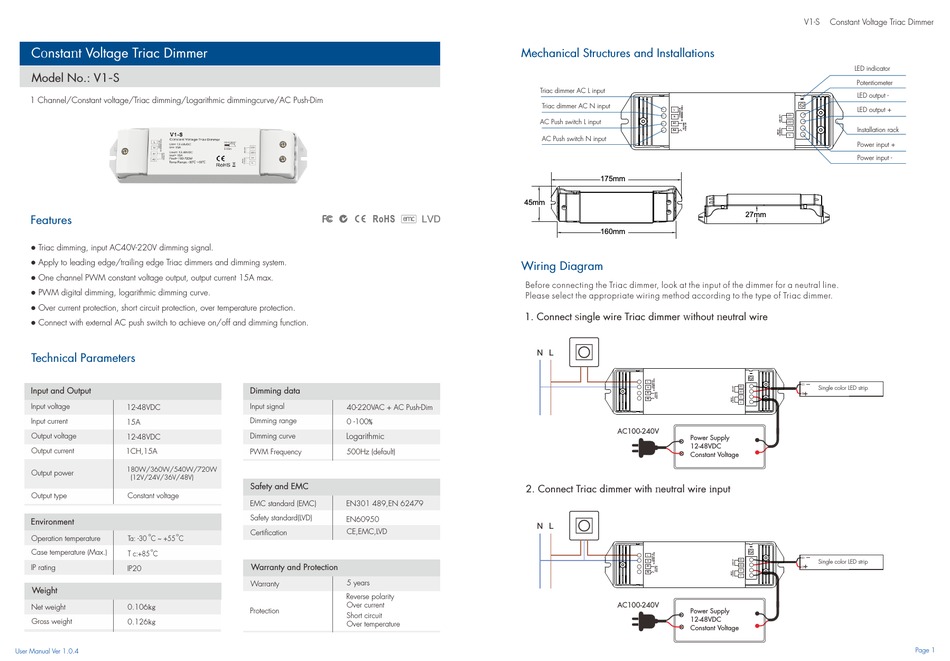

Constant Voltage Triac Dimmer
Model No.: V1-S
1 Channel/Constant voltage
/Triac dimming
/Logarithmic dimming curve / A C Push-Dim
Features
● Triac dimming, input AC40V-220V dimming signal.
● Apply to leading edge/trailing edge Triac dimmers and dimming system.
● One channel PWM constant voltage output, output current 15A max.
● PWM digital dimming, logarithmic dimming curve.
● Over current protection, short circuit protection, over temperature protection.
● Connect with external AC push switch to achieve on/off and dimming function.
Technical Parameters
Input and Output
Input voltage
12-48VDC
Input current
15A
Output voltage
12-48VDC
Output current
1CH,15A
180W/360W/540W/720W
Output power
(12V/24V/36V/48V)
Output type
Constant voltage
Environment
O
O
Operation temperature
Ta: -30
C ~ +55
C
Case temperature
Max.
(
)
T c: +85
O
C
IP rating
IP20
Weight
Net weight
0 . 106kg
Gross weight
0 . 126kg
User Manual Ver 1.0.4
LVD
Dimming data
Input signal
40-220VAC + AC Push-Dim
Dimming range
0 -100%
Logarithmic
PWM Frequency
500Hz (default)
Safety and EMC
EMC standard (EMC)
EN301 489,EN 62479
Safety standard(LVD)
EN60950
CE,EMC,LVD
Certification
Warranty and Protection
5 years
Warranty
Reverse polarity
Over current
Protection
Short circuit
Over temperature
Mechanical Structures and Installations
Triac dimmer AC L input
Triac dimmer AC N input
AC Push switch L input
A1
A2
AC Push switch N input
175mm
45mm
160mm
Wiring Diagram
Before connecting the Triac dimmer, look at the input of the dimmer for a neutral line.
Please select the appropriate wiring method according to the type of Triac dimmer.
1. Connect single wire Triac dimmer without neutral wire
N
L
A1
A2
AC100-240V
Power Supply
12-48VDC
Constant Voltage
2. Connect Triac dimmer with neutral wire input
N
L
A1
A2
AC100-240V
Power Supply
12-48VDC
Constant Voltage
V1-S
Constant Voltage Triac Dimmer
LED indicator
Potentiometer
LED output -
LED output +
Installation rack
Power input +
Power input -
27mm
Single color LED strip
+
Single color LED strip
+
