Пульт SR-2828CCT Black (для MIX-ленты, 1 зона)
PRoduCT InTRoduCTIon
SR-2828CCT is RF touch dimmer with 256 levels logarithmic dimming from 1-100%, which is suit-
able for dimming CCT CW+WW two color led light.
PaRaMeTeR
•
Remote
Part no.
operation Voltage
SR-2828CCT
•
Receiver
Part no.
SR-2501M
SR-2501MEA
SR-2502M
SR-1009FA7
BRIeF InTRoduCTIon
oF BuTTonS
operation Frequency
3VDC
868MHz
Iuput Voltage
12-36VDC
12-36VDC
12-36VDC
12-36VDC
dimension ø/h (mm)
35x141x8.5
Current
output
4x5A
4x(60-180)W
4x8A
4x(96-288)W
4x350mA
4x(4.2-12.6)W
4x700mA
4x(8.4-25.2)W
PRoduCT SIze
Remarks
load 2pcs
CR2025
batteries
Remarks
Constant voltage
Constant voltage
Constant current
Constant current
Advertisement
Related Manuals for Arlight SR-2828CCT
Summary of Contents for Arlight SR-2828CCT

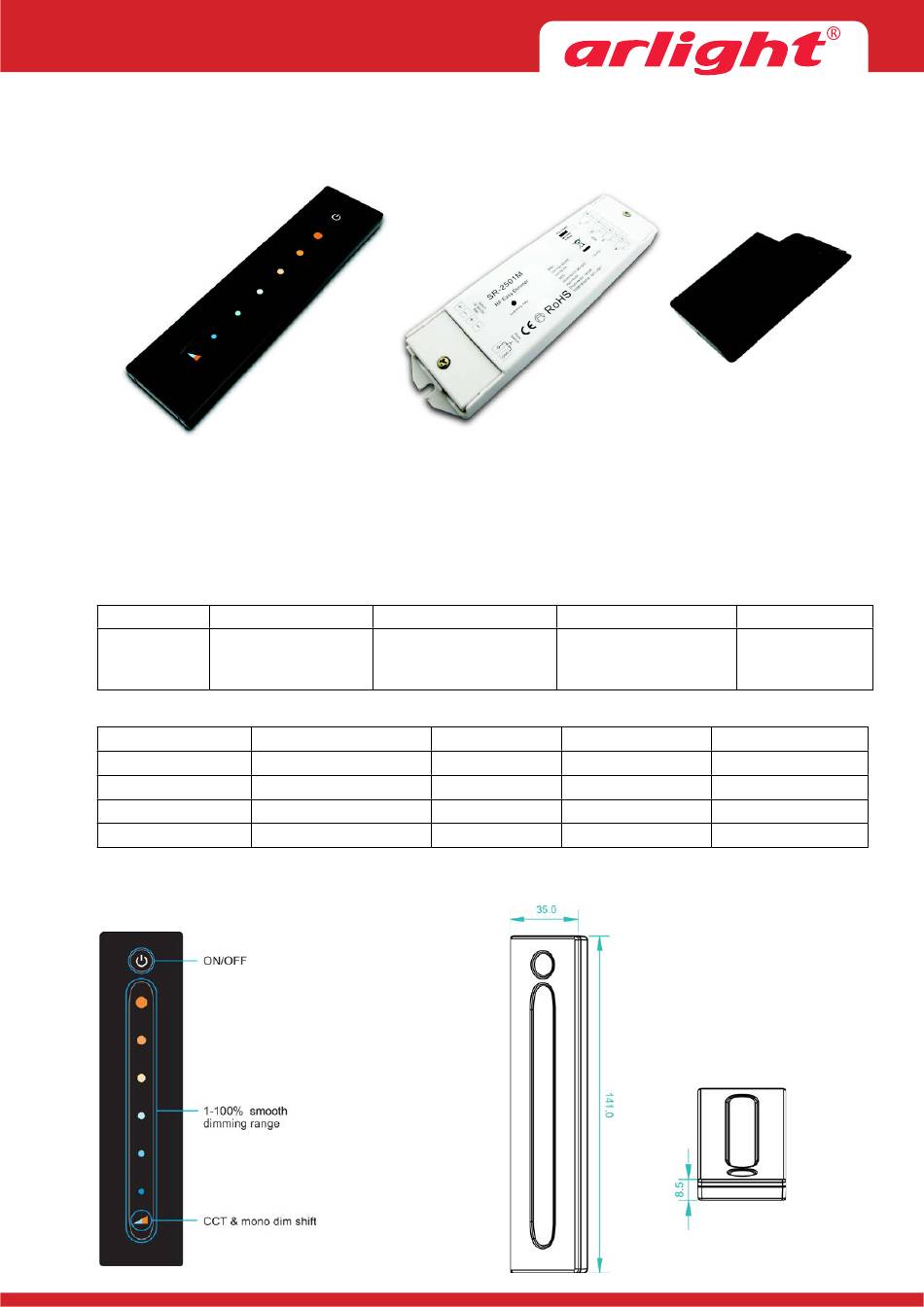

- Page 1 Пульт SR-2828CCT Black (для MIX-ленты, 1 зона) PRoduCT InTRoduCTIon SR-2828CCT is RF touch dimmer with 256 levels logarithmic dimming from 1-100%, which is suit- able for dimming CCT CW+WW two color led light. PaRaMeTeR • Remote Part no. operation Voltage operation Frequency dimension ø/h (mm)
- Page 2 WIRIng dIagRaM oPeRaTIon After you have wired all the receivers according to Figure illustration you need to do the following: 1. Pull off the plastic film cover of the battery at the back of remote. 2. Pair remote with receiver: short press the Learning Key on the receiver, then immediately short slide touch Once you do that, the LED lights will flash.
