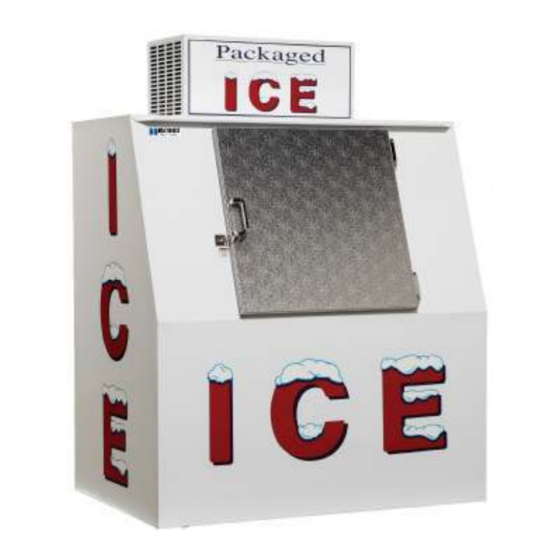

Master Bilt IM-38 Installation And Operation Manual

Master Bilt IM-38 Installation And Operation Manual

Hide thumbs Also See for IM-38:

Advertisement

Quick Links

All manuals and user guides at all-guides.com
INSTALLATION & OPERATIONS MANUAL
MASTER-BILT Products
908 Highway 15 North
New Albany, MS 38652
Phone: 800-6848988
REV 2-29-12
By: LN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IM-38 and is the answer not in the manual?

Questions and answers

Summary of Contents for Master Bilt IM-38

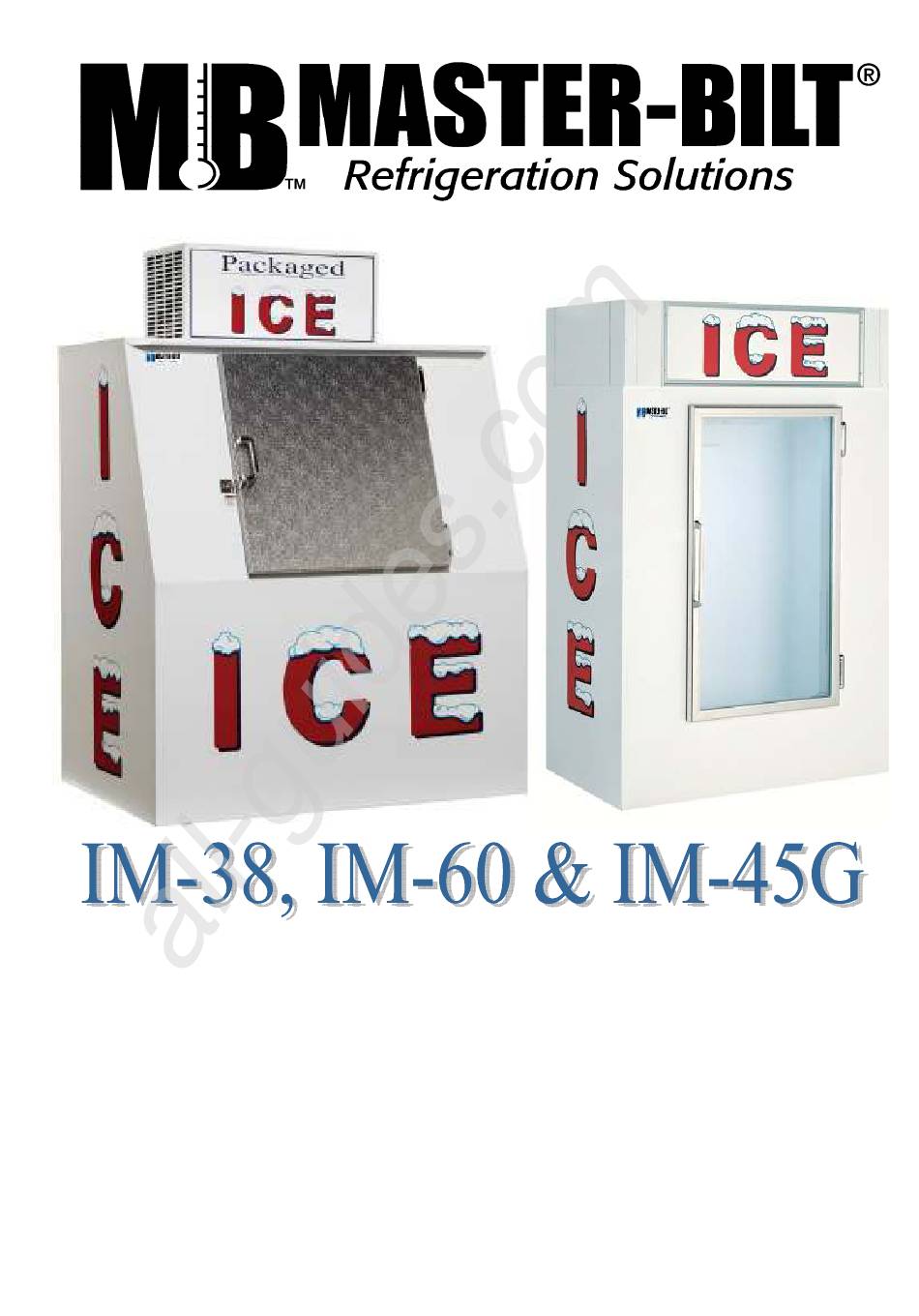

  • Page 1 All manuals and user guides at all-guides.com INSTALLATION & OPERATIONS MANUAL MASTER-BILT Products 908 Highway 15 North New Albany, MS 38652 Phone: 800-6848988 REV 2-29-12 By: LN...
  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com TABLE OF CONTENTS PACKAGING……………………………………………………………………….………………..3 INSTALATION………………………………………………………….…………………………..3 III. OPERATIONS……………………………………………………….…………………….………3-5 1. Electrical………………………………………………………………...………………….…...3 2. Temperature Control…………………………………………..………………………………...4 3. Loading Ice……………………………………………………………….……………….…….5 MAINTENANCE……………………………………………………………………….……………5 1. Refrigeration…………………………………………………………….………………………5 2. Defrosting……………………………………………………………………….………………5 A. Cold Wall (CW) B. Auto-Defrost (AD) C. Condensate Evaporator 3. Electrical…………………………………………………………………………….…………..6 4. Door(s)…………………………………………………………………………………………..6 A.
  • Page 3: Packaging

    All manuals and user guides at all-guides.com Remove plastic overwrap, banding and corrugation packaging. The wooden skid is removed by unscrewing 6-8 hex head screws holding the skid. Glass Door Models: Remove glass door support bracket(s) and protective foam block(s). All merchandisers are tested, inspected and carefully packaged to ensure each unit arrives ready for operation.
  • Page 4: Temperature Control

    All manuals and user guides at all-guides.com The merchandiser must be plugged into a 115 volt, 60 HZ grounded receptacle electrical outlet with a circuit fuse or breaker. (See figure 1). The condensing unit data plate will indicate the maximum fuse/breaker size.
  • Page 5: Loading Ice

    All manuals and user guides at all-guides.com 3. Loading Ice: After merchandiser is operating at required temperature, load with packaged ice. Stacked packaged ice should not exceed heights that will cause poor refrigeration efficiency. Approximately 6" needs to be clear from top of stacked ice to top of inside interior for effective refrigerated ice storage. Auto- Defrost units require good fan air flow for effective circulation.
  • Page 6: Electrical

    All manuals and user guides at all-guides.com Electrical: Inspect each month all power harnesses for any cracks, abrasions or damage to connection plugs. Replace any defective wiring or harnesses. Door(s): Inspect each month for component wear, function and secure attachment. Gasket(s) should be examined for tears or any other problems that would cause loss of seal.
  • Page 7: Cleaning

    All manuals and user guides at all-guides.com 5. Cleaning: Schedule yearly cleaning of merchandiser interior with solution of 8 tablespoons of baking soda to 1 gallon of warm water. DO NOT use strong detergents, abrasive cleansers, solvents, wax or polish as they are likely to leave objectionable odors which may be absorbed by the ice. Wash the outside surfaces with a mild soap and warm water applied with a soft sponge or cloth.
  • Page 8: Cold Wall Wiring Diagram

    All manuals and user guides at all-guides.com...
  • Page 9: Cold Wall Trouble Shooting Flowchart

    All manuals and user guides at all-guides.com...
  • Page 10: Auto-Defrost Wiring Diagram

    All manuals and user guides at all-guides.com...
  • Page 11: Auto-Defrost Trouble Shooting Flowchart

    All manuals and user guides at all-guides.com...
  • Page 12: Replacement Parts

    All manuals and user guides at all-guides.com ITEM DESCRIPTION PART # ITEM DESCRIPTION PART # 1. Condensing Unit: Provide 14. Door, Stucco Stainless Steel 5590025 condensing unit model number 27" x 27" with gasket 15. Door Gasket for 1030016 2. Drier 1323002 27"...
  • Page 13 All manuals and user guides at all-guides.com...
  • Page 14: Warranty

    All manuals and user guides at all-guides.com...
