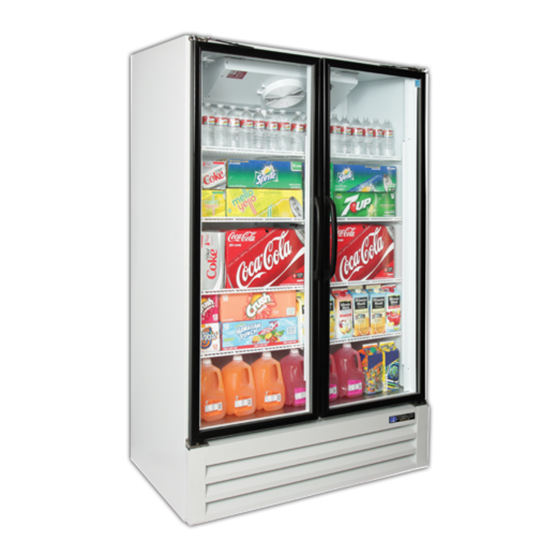

Master Bilt BMG-27 Specification Sheet

BMG-74
FEATURES
NEW
STANDARD TEXTURED FINISH
Standard Black also
white available
CONSTRUCTION
• 24 gauge painted textured steel inte-
rior and exterior
• Cord and plug standard on all self-
contained models
• Replaceable magnetic vinyl door
gaskets
• Five white epoxy-coated, heavy-
duty, welded wire shelves with price
tag molding per door (four cantile-
ver and one bottom)
• Cantilever shelves are two-position
and adjustable in 1" increments
• Equipped with T8 lamps and elec-
tronic ballasts
• Independent on/off light switch
• 2" foamed-in-place "zero ODP" ure-
thane insulation
DOORS
• Door size:
BMG-27 .......................30" x 63"
BMG-48/74 ............. 25
BMG-52/80 ............. 27
• Black door rails and handles
• Extra large, auto-close, triple pane,
safety glass doors
• 90° hold-open feature
• Adjustable torsion bar hinges
• Door hinges easily adjustable for
closing tension and leveling
REFRIGERATION
• Self-contained, factory tested, bot-
tom mounted refrigeration system
• Top mounted low profile interior fan
housing
• Automatic condensate evaporator
• Refrigerant: R-134a
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
ITEM NO. ______________________________________________________
PROJECT ______________________________________________________
LOCATION _____________________________________________________
DATE _________________________ QTY. ___________________________
BMG SERIES
Bottom Mounted
Medium Temp
Glass Door Merchandisers
MODELS
❑ BMG-27 ❑ BMG-74
❑ BMG-48 ❑ BMG-80
❑ BMG-52
These ENERGY STAR
feature highly efficient compressors,
generously-sized condensers and evapora-
tors and EC evaporator motors. They may
also qualify for energy rebate programs.
• Minimum 4" clearance required
between cabinet back and wall
• Temperature range:
34° to 41°F (1° to 5°C)
• R-factor (insulation efficiency rat-
ing): 17.24
WARRANTY
• Standard limited three year
/ " x 63" extended compressor and two year
1
8
/ " x 63" limited parts and labor
1
8
OPTIONS
❑ Add suffix "R" for remote
system (For BMG-48 and BMG-74
only)
❑ Custom colors
❑ Baskets
❑ Casters
❑ Additional shelves
qualified models
®
