Master Bilt Sliding Glass Door Merchandise SMB-430 Specifications

SMB-430
FEATURES
CONSTRUCTION
• 24 gauge painted steel
interior and exterior
• Low profile evaporator coil with
horizontal, forced air system
• Four white epoxy-coated, heavy-
duty, welded wire shelves per
door
• Shelves adjustable in 1/2"
increments
• Dual overhead, high output
fluorescent lamps
• Independent on/off light switch
• 8 foot cord with molded plug
(excluding SMB-870)
• 2" foamed-in-place "zero ODP"
urethane insulation
FINISH
• Sparkling white polyester
enamel interior and exterior
DOORS
• Sliding, dual pane, tempered
glass doors
• Self-closing with cord and sash
system
• Extruded aluminum frame doors
• Stainless steel, ball-bearing door
rollers and tracks
• Full length easy-grip door
handles
REFRIGERATION
• Self-contained, bottom mount,
slide-out refrigeration system
• Electric condensate evaporator
• Minimum 4" clearance required
between cabinet back and wall
• Refrigerant: R-134a
• Temperature range:
34° to 41°F (1° to 5°C)
• R-factor (insulation efficiency
rating): 17.24
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
ITEM NO. ______________________________________________________
PROJECT ______________________________________________________
LOCATION _____________________________________________________
DATE _________________________ QTY. ___________________________

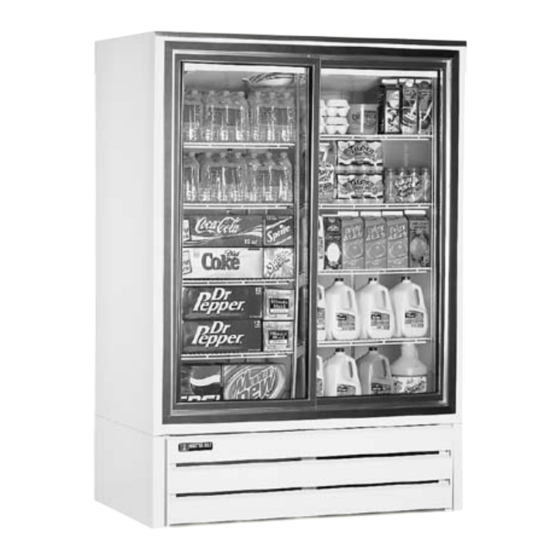

SMB SERIES
Sliding Glass Door
Merchandisers
MODELS
❑ SMB-430
❑ SMB-580
❑ SMB-870
WARRANTY
• Standard limited three year
extended compressor and two
year limited parts and labor
OPTIONS
❑
❑
❑
Casters
Door lock
Extra shelves
