Master Bilt FIP 50 Series Specifications

FIP-50

FEATURES

FEATURES
NEW
STANDARD TEXTURED FINISH
Standard Black also
white available

CONSTRUCTION

• Standard electronic controller with
these features:
– Ability to monitor defrost functions
from the front panel interface
– Audible alarm
– Eliminates room thermostat,
defrost termination/fan delay
control, defrost timer and digital
thermometer or other temperature
indicator
• 24 gauge painted textured steel inte-
rior and exterior
Refrigeration
system features
low maintenance
bare tube
condenser coil.
• 60" x 19" top stainless steel serving
deck
• Extra large, non-fogging front dis-
play window
• Four panes of tempered glass with a
viewing area of 11.7 sq. ft.
• Removable backlit merchandising
sign in stainless steel frame
• Anodized aluminum trim with black
vinyl inlay
• Four adjustable heavy-duty, white
epoxy-coated, welded wire shelves
• Protective front bumper
• Full length fluorescent lamp
• Automatic condensate evaporator
• Independent on/off light switch
• 2" foamed-in-place "zero ODP" ure-
thane insulation
DOORS
• Replaceable magnetic door gasket
• Foamed-in-place rear doors
• Self-closing
REFRIGERATION
• Self-contained, semi-hermetic con-
densing unit
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
ITEM NO. _______________________________________________________
PROJECT _______________________________________________________
LOCATION ______________________________________________________
DATE _________________________ QTY. ____________________________

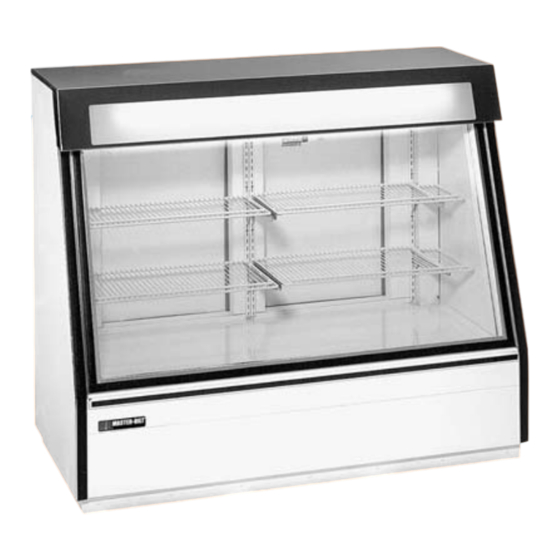

FIP-50 SERIES
Ice Cream And Novelty
Display Merchandiser
MODEL
❑ FIP-50
• Rear air intake and discharge
• Automatic defrost
• Refrigerant: R-404A
• No minimum clearance required on
cabinet sides but front, back and top
must be left open for customer and
operator access
• Temperature range:
0° to -20°F (-18° to -29°C)
• R-factor (insulation efficiency rat-
ing): 17.24
WARRANTY
• Standard limited three year extend-
ed compressor and two year limited
parts and labor
OPTIONS
❑ Custom colors
❑ Casters
