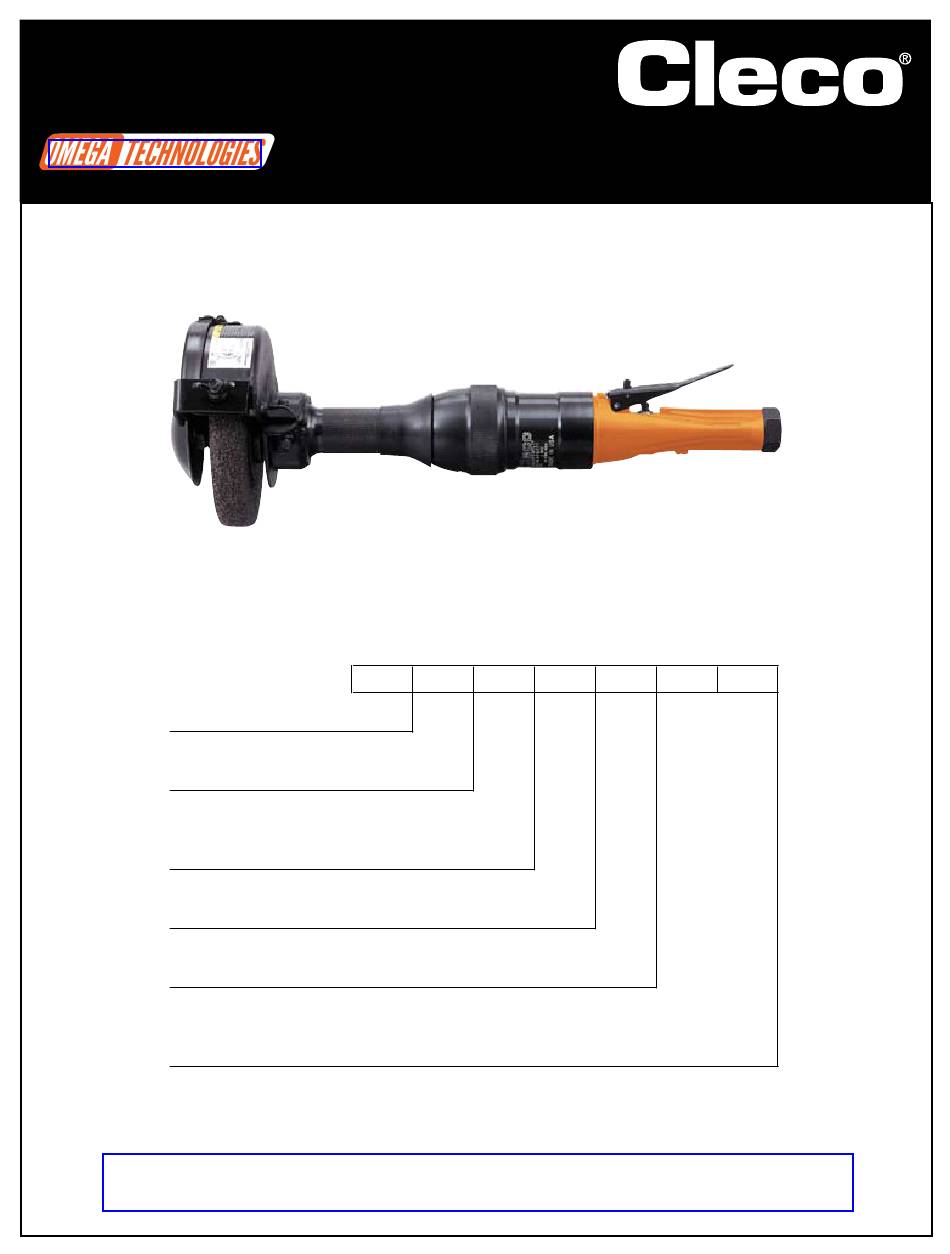

Parts Manual
823130
05/10/2011
Tool Series
5 = 500 Series
Speed Options (RPM)
60 = 6,000
90 = 9,000
Generation
B = Second
Tool Type
H = Horizontal
Throttle
L = Locking Lever
X = Spade
Wheel Type
14 = 4" Type 1
16 = 6" Type 1
https://dotcotool.com/product-category/cleco-tools/cleco-grinders/cleco-horizontal-grinders-
5
XXX
120 = 12,000
P = Plug
For additional product information visit our website at:
cleco-grinders/cleco-500b-series-cut-off-wheel-grinders/
B
H
X
500 Series
Horizontal Grinders
-
XX
Advertisement
Related Manuals for Cleco 500 Series
Summary of Contents for Cleco 500 Series
- Page 1 Parts Manual 823130 05/10/2011 500 Series Horizontal Grinders Tool Series 5 = 500 Series Speed Options (RPM) 60 = 6,000 120 = 12,000 90 = 9,000 Generation B = Second Tool Type H = Horizontal Throttle L = Locking Lever...
-
Page 2: Safety Recommendations
Cracked, chipped or faulty grinding wheels are dangerous. Suspect wheels should not be used and should be Cleco grinders are designed to operate on 90 psig (6.2 bar) max. air pressure. disposed of. Look for cracks, chips, water stains, or signs of abuse or If the tool is properly sized and applied, higher air pressure is unnecessary. - Page 3 Some tasks require more than one minimum 1/3 dia. can break the wheel and type of tool to obtain the optimum operator/tool/task relationship. Cleco of wheel dia. result in severe injury. offers a complete selection of tools including vertical, straight, angle, and...
- Page 4 Safety Recommendations Work gloves with vibration reducing liners and wrist supports are available Proper repair procedures and the use of original Cleco service parts and from some manufacturers of industrial work gloves. Tool wraps and grips are bearings rather than substitutes will return the tool to factory specifications also available from a number of different manufacturers.
- Page 5 REASSEMBLY OPERATING INSRUCTIONS The tool is reassembled in the reverse order of disassembly. All parts should be thoroughly cleaned and inspected for wear before reassem- bly. Particular attention should be paid to the governor assembly, READ SAFETY RECOMMENDATIONS BEFORE replacing any of its' parts that show wear or damage. It is recommended CONNECTING TOOL.
-
Page 7: Name Of Part
PARTS LIST—HOUSING & MOTOR UNIT PART NO. QTY. NAME OF PART 203215 HOUSING (BSLP ONLY) (INCL. 843521, 843526) 203495 INSTRUCTION PLATE (BSLP) 617726 FELT RETAINER RING 812166 CYLINDER PIN 842426 FELT RING 842627 ROTOR LOCK NUT 843521 INSTRUCTION PLATE (BX, BSL) 843526 DRIVE SCREW 844363... - Page 9 PARTS LIST—HANDLE SUBASSEMBLIES LOCK-OFFLEVER SPADE NAME OF PART PART NO. QTY. QTY. 202337 THROTTLE VALVE 622881 "O"-RING 7/8" X 1-1/8" 812977 TRIGGER STOP PIN 832211 THROTTLE STEM BUSHING 832595 THROTTLE VALVE SPRING 834619 "O"-RING 13/16" X 5/`6" 843590 OILER VALVE 844155 THROTTLE VALVE CAP 844303...
- Page 10 FULL LENGTH SPINDLE DRIVING FLANGE Thread Part No. 5/8"-11 869699 WITH CONE/PLUG WHEEL DRIVING FLANGE DRIVING FLANGE Thread Part No. 5/8"-11 869708 CONE GRINDER STUB SPINDLE Thread Part No. (Stub Spindle) 5/8"-11 869703 202574 SPINDLE END NUT Thread Part No. 5/8"-11 843846 FULL LENGTH SPINDLE...
- Page 11 PARTS LIST — 500B EQUIPMENT PART NO. NAME OF PART QTY. 202574 SET SCREW 843846 5/8"- 11 SPINDLE END NUT 847047 2" OD (50mm) OUTER FLANGE 864525 2" OD (50mm) DRIVING FLANGE 864555 1-17/32" OD (39mm) DRIVING FLANGE 864561 1-17/32" OD (39mm) OUTER FLANGE 865993 6"...
-
Page 12: Sales & Service Centers
Sales & Service Centers Note: All locations may not service all products. Please contact the nearest Sales & Service Center for the appropriate facility to handle your service requirements. Dallas, TX Detroit, MI Houston, TX Lexington, SC Apex Tool Group Apex Tool Group Apex Tool Group Apex Tool Group...
