ADTRAN T1/PRI Quick Start Manual

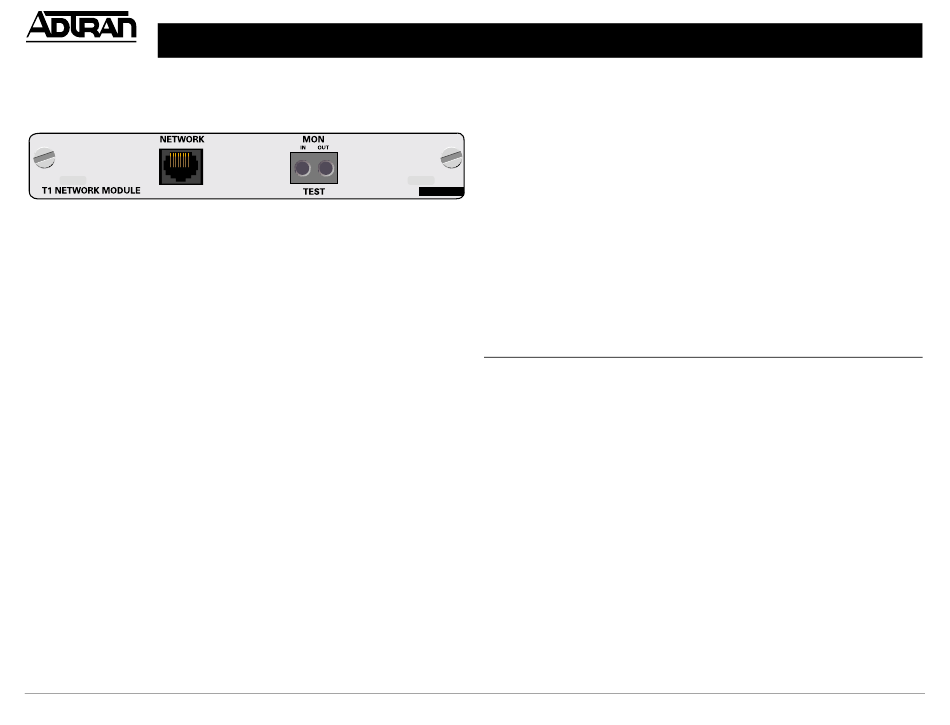

T1/PRI NETWORK INTERFACE MODULE
Quick Start Guide
I I
NSTALLATION NSTRUCTIONS
1. Remove the cover plate from the appropriate Network slot.
2. Slide the T1/PRI Network Interface Module into the ATLAS 550 chassis
until the module is firmly seated in the ATLAS 550 unit.
3. Fasten the thumbscrews at both edges of the network module. Tighten
with a screwdriver.
4. Connect the cables to the associated device.
5. Complete installation of remaining modules and Base Unit as specified
in the Installation chapter of the ATLAS 550 System Manual.
Quick Start Guide, 61200307L2-13A, February, 2003
S
PECIFICATIONS
Line Rate
Capacity
Line Codes
500 Series
Framing
Tests
Connectors
Terminating Impedance
T1 N
ETWORK
Pin
1
2
3
4
5
6, 7, 8
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at
1.544 Mbps, ± 75 bps
T1: 1-24 DS0s
PRI: 23 B+D
AMI (alternate mark inversion) or B8ZS (bipolar
return to zero)
D4 or ESF
Self-test, line loopback, payload loopback
RJ-48C (eight-position, modular jack)
100 ohms ± 5%
( ) C
RJ-48C
ONNECTION
Name Description
R1 RXDATA Receive data from the network ring
T1 RXDATA Receive data from the network tip
Unused n/a
R TXDATA Send data towards the network ring
T TXDATA Send data towards the network tip
Unused n/a
Copyright  2003 ADTRAN, All Rights Reserved
www.adtran.com
P/N 1200307L2
P
INOUT
