Summary of Contents for Stratasys RK1600 WJ

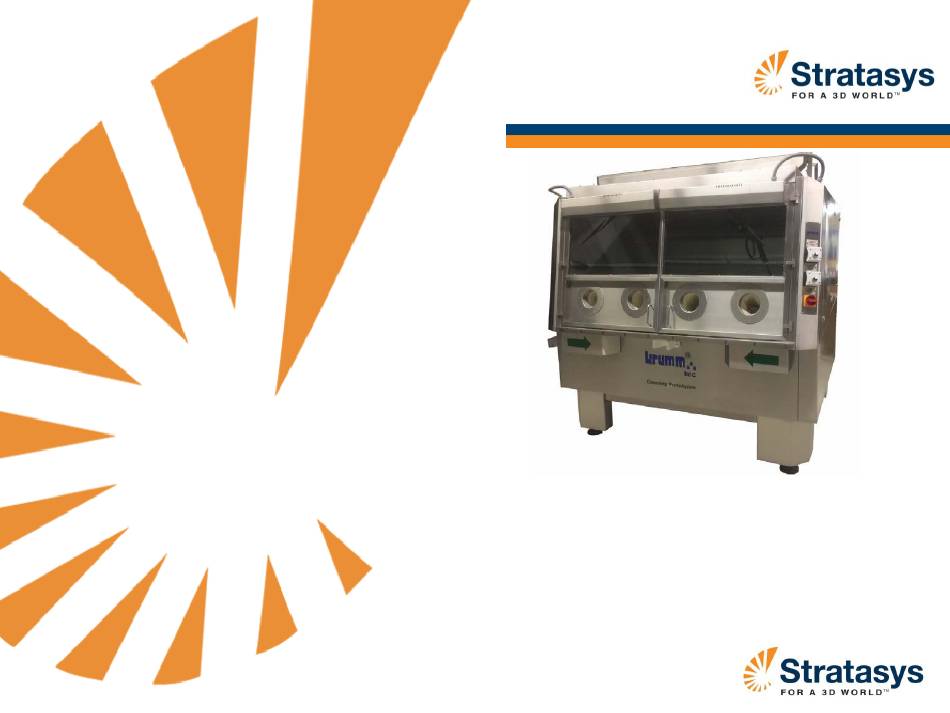

- Page 1 RK1600 WJ...
- Page 2 Objet1000 Water Jet – Major Specifications • Objet1000 Water Jet – RK1600 made by “KRUMM” Germany • Size: 205+-5 X 205+-5 X 190 cm • Weight: 680kg • Ability to clean models in size of: 103.5 X 93 X 90 cm •...
- Page 3 System Description front and upper look...
- Page 4 Back side...
- Page 5 Model Cleaning 1. Open the cleaning unit doors 2. Align the build tray cart with the front of the cleaning unit 3. Align the cart with the cleaning unit 4. Adjust the cart height until it locks into place on the cleaning unit. 5.
- Page 6 Inserting and Removing the build tray...
- Page 7 7. Insert the tray 8. Insert the hands into the openings and press the water gun...
- Page 8 WJ installation 1. The unpacking and the placing of the WJ should be done by professional movers and it is customer’s responsibility 2. In order to place the WJ on it designated place supplied in the start up kit wheels can be used...
- Page 9 Suggested WJ room layout.
- Page 10 Plumbing and GND connections Before shipment, the cleaning unit is tested and the pump drain plug is removed, to allow the internal parts of the pump to dry. If this plug is not installed before connecting the water supply, intake water will immediately leak from the pump, and flood the area.
- Page 11 4. Connect the GND, Water and Compressed air to the WJ 5. Connect the drain to the WJ...
- Page 12 Adjusting the docking guides Video which illustrating KRUMM RK1600 WJ...
- Page 13 Replacing water pump oil after 50 working hours from installation (operator)
-
Page 14: Cleaning The System
Cleaning the system • Periodically after 2-3 hours of intensive cleaning the WJ need to be cleaned • The basket filters should be removed... - Page 15 Block Diagram Main Control Board 220V Wiper 1 Wiper 2 Switch Main Pump Switch Power Lamp 1 Lamp 2 Light Pump 220V Switch Wiper...
- Page 16 Troubleshooting table...
- Page 17 Thank you!
