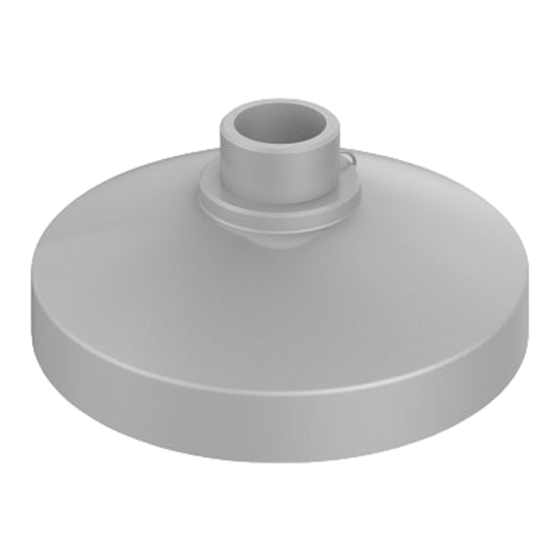

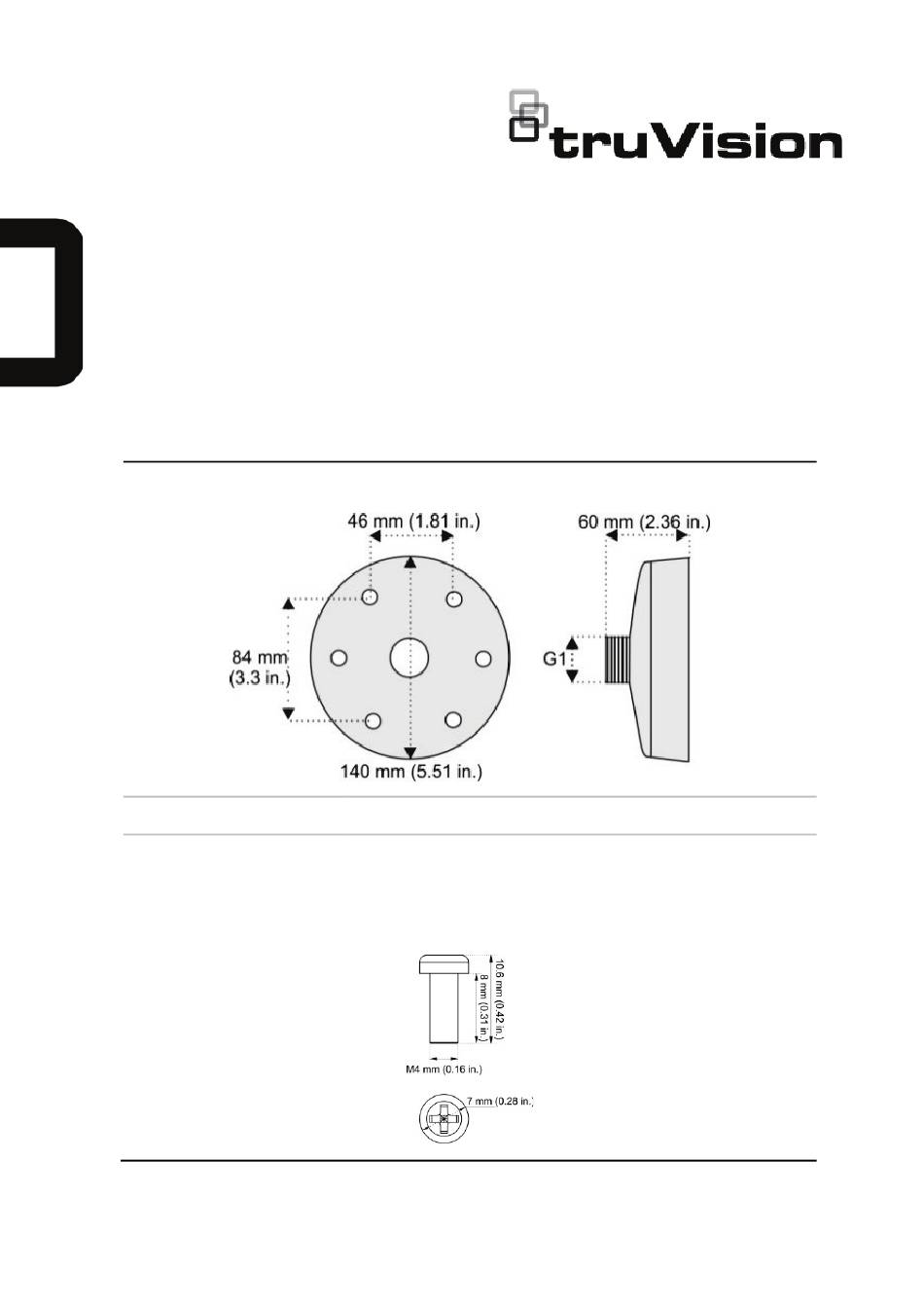

- Page 1 TruVision TVD-CB3 Cup Base Installation Instructions Dimensions Dimensions: Weight: 335 g (0.73 lb.) Accessories: Screw A: 3 pcs. Used to install the camera adapter plate to the cup base. P/N 1073419-EN • REV E • ISS 05JUL21...
-
Page 2: Supported Devices
• TVT-5502 • TVT-5601 Installing a TVD-CB3 cup base to a dome camera It is a similar process for a turret camera. Refer to the turret camera installation guide for details. When assembling a TVD-CB3 to a dome camera, you require: •... - Page 3 Please refer to the camera mounts guide to verify if an adapter plate is needed and included with your camera. • Adapter plate mounting screws To mount a dome camera to a TVD-SNB wall mount with a TVD-CB3 cup base: Route the camera cables through the wall mount.
- Page 4 Loosen the screws on the bubble assembly using the Torx wrench that is supplied with the camera. Remove the bubble assembly and liner from the dome module. Connect the cables to the dome camera. Attach the dome assembly of the camera (A) to the camera adapter plate, using the screws provided with the camera.
- Page 5 Reattach the bubble assembly to the camera. To mount a dome camera to a TVD-PPB pendant bracket with a TVD- CB3 cup base: It is a similar process for a turret camera. Refer to the turret camera installation guide for details. P/N 1073419-EN •...
- Page 6 Screw the pendant mounting plate onto the pendant mount tube and tighten with the locking screw, as shown. Route the camera interconnect cables through the pendant mount. Attach the mount to the ceiling using the expansion anchors that are included with the pendant mount. Screw the cup base onto the pendant mount and tighten with the locking screw.
- Page 7 Loosen the screws on the dome assembly (1) using the using the Torx wrench that is supplied with the camera and remove the dome bubble assembly and liner (2). Connect the cables to the dome camera. Using screws that are supplied with the camera, attach the dome assembly to the mounting plate.
- Page 8 Reattach the dome liner and bubble assembly to the camera. P/N 1073419-EN • REV E • ISS 05JUL21...
- Page 9 Installing a TVD-CB3 cup base to a turret camera It is a similar process for a dome camera. To mount a turret camera to a TVD-CBW wall mount with a TVD-CB3 cup base: Route the camera cables through the wall mount. Attach the wall mount to the wall using the expansion anchors that are provided with the TVD-CBW.
- Page 10 Rotate the trim ring counterclockwise to remove it from the camera. Attach the camera base to the adapter plate using the screws provided with the camera. Connect the cables from the camera to the cables routed through the wall mount. Reattach the camera to the camera base.
-
Page 11: Legal Information
Legal information Copyright © 2021 Carrier. All rights reserved. Specifications subject to change without prior notice. Trademarks and TruVision names and logos are a product brand of patents Aritech, a part of Carrier. Certification Contact EMEA: https://firesecurityproducts.com information Australian/New Zealand: https://firesecurityproducts.com.au/... - Page 12 Product Please consult the following web link to retrieve the documentation electronic version of the product documentation. The manuals are available in several languages. P/N 1073419-EN • REV E • ISS 05JUL21...
