TruVision TVF-5201 Configuration Manual
  1. Manuals
  2. Brands
  3. TruVision Manuals
  4. Digital Camera
  5. TVF-5201
  6. Configuration manual

TruVision TVF-5201 Configuration Manual

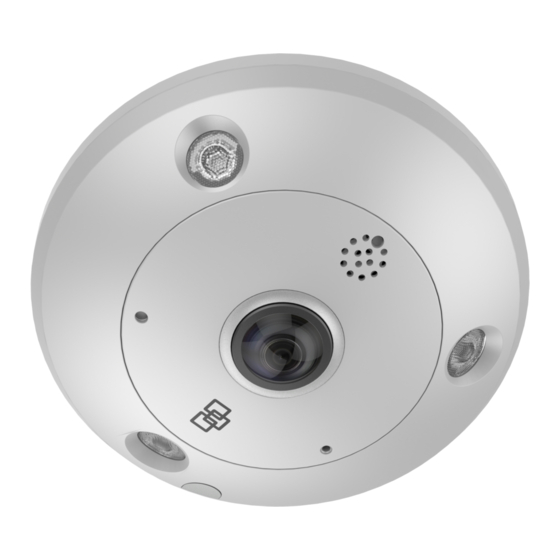

6mp and 12mp 360 camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TruVision 6MP and 12MP
360° Camera
Configuration Manual
P/N 1073657-EN • REV B • ISS 08JUL21
