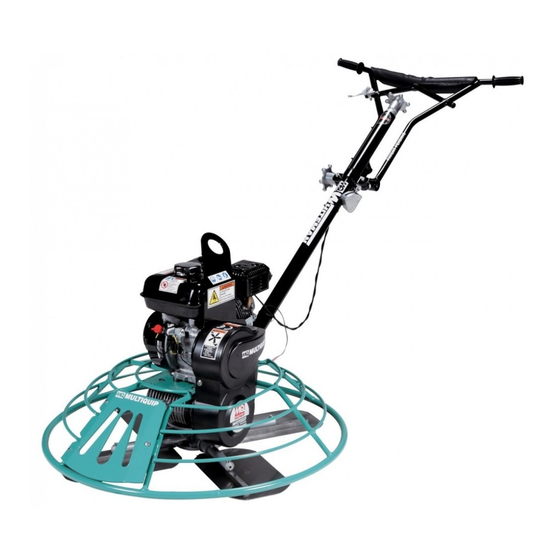

Walk-behind trowel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION AND PARTS MANUAL
HDA-SERIES
WALK-BEHIND TROWEL
Revision #9 (07/02/10)
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
P/N 20920

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WHITEMAN HDA Series and is the answer not in the manual?

Questions and answers

Related Manuals for MULTIQUIP WHITEMAN HDA Series

Summary of Contents for MULTIQUIP WHITEMAN HDA Series

  • Page 1 OPERATION AND PARTS MANUAL HDA-SERIES WALK-BEHIND TROWEL Revision #9 (07/02/10) To find the latest revision of this publication, visit our website at: www.multiquip.com THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES. P/N 20920...

  • Page 2: Proposition 65 Warning

    PROPOSITION 65 WARNING Engine exhaust some its constituents, and some dust created by power sanding, sawing, grinding, drillingandotherconstructionactivities contains chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. Some examples of these chemicals are: Leadfromlead-basedpaints.
  • Page 3 NOTES HDA-SERIES WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV. #9 (07/02/10) — PAGE 3...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS HDA-Series Honda GX340K1QA2 Engine Walk-Behind Trowel Air Cleaner Assembly........68-69 Camshaft Assembly ......... 70-71 Proposition 65 Warning ........... 2 Piston Assembly ..........72-73 Table Of Contents ........... 4 Crankcase Cover Assembly ......74-75 Parts Ordering Procedures ........5 Crankshaft Assembly ........

  • Page 5: Parts Ordering Procedures

    , 2006 Order via Internet (Dealers Only) Best Deal! If you have an MQ Account, to obtain a Username Order parts on-line using Multiquip’s SmartEquip website! and Password, E-mail us at: parts@multiquip. com. View Parts Diagrams Order Parts To obtain an MQ Account, contact your District Sales Manager for more information.

  • Page 6: Training Checklist

    TRAINING CHECKLIST TRAINING CHECKLIST This checklist will lists some of the minimum requirements for machine maintenance and operation. Please feel free to detach it and make copies. Use this checklist whenever a new operator is to be trained or it can be used as a review for more experienced operator’s.

  • Page 7: Daily Pre-Operation Checklist

    DAILY PRE-OPERATION CHECKLIST DAILY PRE-OPERATION CHECKLIST . l e . l e i t i d t i P o i t t i w o i t t l e t u l o i t COMMENTS: HDA-SERIES WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV. #9 (07/02/10) — PAGE 7...

  • Page 8: Safety Message Alert Symbols

    This Owner's Manual has been developed to provide provide ample free flow air. complete instructions for the safe and efficient operation of the MultiQuip HDA-SERIES WALK-BEHIND TROWEL. For engine maintenance information, please refer to the engine manufacturers instructions for data relative to its safe operation.
  • Page 9 SAFETY MESSAGE ALERT SYMBOLS Accidental Starting Respiratory Hazard ALWAYS place the engine ON/OFF switch in the OFF position, when the ALWAYS wear approved respiratory protection. trowel is not in use. Over Speed Conditions Sight and Hearing hazard NEVER tamper with the factory settings of the engine governor or settings.

  • Page 10: Rules For Safe Operation

    , or if fuel is spilled on a hot! engine. ■ NEVER use accessories or attachments, which are not recommended by Multiquip for this equipment. Damage to the equipment and/or injury to user may result. ■ Manufacturer does not assume responsibility for any accident ■...
  • Page 11 RULES FOR SAFE OPERATION ■ DO NOT operate this trowel unless all guards and safety ■ Keep the trowel in proper running condition. devices are attached and in place. See pages 16 and 17. ■ Make sure that there is no buildup of concrete, grease, oil or ■...

  • Page 12: Operation And Safety Decals

    OPERATION AND SAFETY DECALS OPERATION AND SAFETY DECALS The HDA-SERIES walk-behind trowel is equipped with a number of operation and safety decals. These decals are provided for operator safety and maintenance information. Should any of these decals become unreadable, replacements can be obtained from your dealer.

  • Page 13: Specifications (Trowel)

    SPECIFICATIONS (TROWEL) SPECIFICATIONS (TROWEL) Top View Side View Figure 2. HDA-SERIES Trowel Dimensions i r e i f i o i t – A i t f i – B ) r e – C – D – t i t a s b l 1 / .

  • Page 14: Specifications (Engines)

    SPECIFICATIONS (ENGINES) SPECIFICATIONS (ENGINES) i f i o i t - r i r t s - r i r t s i l y , r e i l y , r e z i r l a t t f a i l o z i r...

  • Page 15: General Information

    Please contact This walk-behind trowel is designed to be moved and handled your nearest Multiquip Dealer for a replacement should the in several ways. The easiest way to lift the trowel is to use the original manual disappear or otherwise become unusable.

  • Page 16: Controls And Components

    CONTROLS AND COMPONENTS Figure 3. HDA-SERIES Walk-Behind Trowels PAGE 16 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 17 CONTROLS AND COMPONENTS Figure 3 shows the location of the basic controls or components, 10. Trowel Lifting Point – Insert the auxiliary lifting tube here. for the HDA-SERIES trowel. Listed below is a brief explanation See Figure 20. of each control or component 11.

  • Page 18: Basic Engine

    BASIC ENGINE BASIC ENGINE Figure 4. Engine Controls and Components INITIAL SERVICING The engine (Figure 4) must be checked for proper lubrication and Choke Lever – Used in the starting of a cold engine, or in cold weather conditions. The choke enriches the fuel filled with fuel prior to operation.

  • Page 19: Assembly And Installation

    ASSEMBLY AND INSTALLATION ASSEMBLY AND INSTALLATION Before the trowel can be put into operation there are some components that must be installed before the trowel can be used. This section provided general instructions on how to install those components. Instruction sheet P/N 20485 provides further details for the handle assembly.
  • Page 20 If handle height adjustment is desired, a handle wedge kit can be pitch (Figure 12). purchased for your trowel by ordering P/N 2576 from your Multiquip dealer. These wedges are placed between the handle and the gearbox to adjust the operating height of the handle. This kit comes complete with wedges, new bolts and installation instructions.
  • Page 21 ASSEMBLY AND INSTALLATION Lock the spring in the compressed position, by releasing Pre-load Adjustment (Quick-Pitch™ Models Only) the blade pitch adjustment trigger, (Quick-Pitch™ model). After the Quick-Pitch™ handle has been installed on the Remove one brass set nut from the blade pitch cable end trowel, spring pre-load adjustment will be required.

  • Page 22: Pre-Inspection

    PRE-INSPECTION PRE-INSPECTION CAUTION CAUTION CAUTION CAUTION CAUTION NEVER operate the trowel in a confined area or enclosed area structure that does not provide ample free flow of air . Figure 16. Engine Oil Dipstick (Removal) ALWAYS wear approved eye and hearing protection before operating the trowel.
  • Page 23 PRE-INSPECTION Blade Check Explosive Fuel Check for worn or damaged blades. Check to see if one blade is worn out while the others look new. If this is the case there could be a blade pitch problem. Refer to the maintenance section of this manual for blade pitch adjustment procedure.

  • Page 24: Initial Start-Up

    INITIAL START-UP INITIAL START-UP Using a crane to move a machine with a lift bail is highly recommended, and is perfectly safe for the machine. Extra care DO NOT use your trowel until this section has been read and is should be taken when lifting the machine off the ground, however.
  • Page 25 INITIAL START-UP 6. If the engine has started, slowly return the choke lever 3. Place the centrifugal safety stop switch (Figure 23) in the (Figure 24) to the OPEN position. If the engine has not started "ON" position. repeat steps 1 through 5. 7.

  • Page 26: Operation

    OPERATION OPERATION Maneuvering the Trowel The following steps are intended as a basic guide to machine 1. Get into the operator’s position behind the handle. With a operation, and are not to be considered a complete guide to secure foothold and a firm grasp on the handles slowly concrete finishing.
  • Page 27 OPERATION Continue to practice maneuvering the trowel. Try to practice as if (Figure 30) below illustrates a typical walk-behind trowel you were finishing a slab of concrete. Practice edging and application. Practice maneuvering the trowel. The trick is to let covering a large area.

  • Page 28: Options

    If you need replacement blades, consult your parts list in this Figure 33. Clip-On Float Blade manual for part numbers and order them from your Multiquip parts dealer or importer. Combo Blades...
  • Page 29 OPTIONS Lifting Bail There is a heavy duty, center balance type lifting bail (Figure 35) made specifically for your trowel. These bales are ideal for lifting and transporting your trowel. They are designed to lift the finisher and balance it on it’s center of gravity, providing great stability while lifting.

  • Page 30: Maintenance

    MAINTENANCE MAINTENANCE Trowel Arm Adjustment Procedure The following procedure should be See the engine manual supplied with followed to adjust trowel arms when your machine for appropriate engine NOTE NOTE it becomes apparent that the trowel maintenance schedule and troubleshooting guide for problems. is finishing poorly or in need of routine maintenance.
  • Page 31 MAINTENANCE 2. Start engine, and bring trowel blades up to full speed and look 2. Loosen the jam nut and cone point square head set for the following conditions: screw, and carefully lift the upper trowel assembly off of the spider assembly. A slight tap with a rubber mallet ■...
  • Page 32 MAINTENANCE Trowel Arm Flatness Test 3. Should the trowel arm inserts (bronze bushing ) come out with the trowel arm, remove the bushing from the trowel arm 1. Using a piece of 3/4 inch thick steel plate or any surface which and set aside in a safe place.
  • Page 33 MAINTENANCE Trowel Arm Adjustment 3. Unscrew the locking bolts on the adjustment tool, and place the trowel arm into the adjustment fixture channel (Figure 45). Shown in (Figure 45) is the adjustment fixture with a trowel arm A thin shim may be required to cover the blade holes on the inserted.
  • Page 34 MAINTENANCE 11. Carefully lift the upper trowel assembly , line up the key- V-Belt Removal and Replacement way on gear box main shaft and insert into spider assembly. 1. Remove the two T-Bolts and lock-washers that hold on the belt guard and remove the belt guard. 12.

  • Page 35: Troubleshooting (Trowel)

    TROUBLESHOOTING (TROWEL) l i k t i w t i w l i K t i w u f l o i t . y r i l p . l l a l i f r e t i t i n t i w o i t i o i t...
  • Page 36 TROUBLESHOOTING (TROWEL) t l e . t l y t r f i r t u l c e l c u l c e v i e r i u l c f i r t u l c t u l p i l u l s...

  • Page 37: Troubleshooting (Engine)

    TROUBLESHOOTING (ENGINE) i t a l i r b t i s c i f f t l u t r a f " , s i l l i a . " g t r o r i c i u c i c i f o i t...

  • Page 38: Explanation Of Codes

    A blank entry generally indicates that the item is not sold assembly/kit that can be purchased, or is not available separately or is not sold by Multiquip. Other entries will for sale through Multiquip. be clarified in the “Remarks” Column.

  • Page 39: Suggested Spare Parts

    SUGGESTED SPARE PARTS HDA-SERIES TROWEL 1 TO 3 UNITS WITH HONDA GX340K1QA2 AND GX390K1QA2 ENGINES. 1 to 3 Units Qty..P/N ......Description 1 ...20478 ....GRIP, LEFT 1 ...20463 ....GRIP, RIGHT 2 ...20856 ....SAFETY SWITCH 1 ...20285 ....CABLE STANDARD HANDLE 1 ...20297 ....

  • Page 40: Nameplate And Decals

    NAMEPLATE AND DECALS PAGE 40 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 41 DECAL: MQ WHITEMAN 13" 1736 DECAL: ARROWS 1735 DECAL: PRE-LOAD INDICATOR 11246 DECAL: OIL CHECK ..........1 ..PART OF DECAL KIT P/N 12620 NAMEPLATE ............1 ..CONTACT MULTIQUIP ..................SERVICE DEPT. 1940 DECAL: MQ WHITEMAN (SMALL) 11092 DECAL: CE 11246...
  • Page 42 STANDARD HANDLE ASSY. (OLD STYLE) DETAIL “A” DETAIL “B” DETAIL “A” DETAIL “B” APPLY THREAD LOCK (LOCTITE 242 BLUE OR EQUIVALENT). PART OF ENGINE ASSEMBLY. COMPLETE HANDLE ASSY, P/N 20299 NO LONGER AVAILABLE. WHEN REPLACING ENTIRE ASSY, USE P/N 22258. SEE STANDARD HANDLE ASSY. (NEW STYLE) PAGE 42 —...
  • Page 43 STANDARD HANDLE ASSY. (OLD STYLE) PART NO. PART NAME QTY. REMARKS 20478 GRIP, HANDLE 20774 COVER, PAD HANDLE 20818 DECAL, STD PITCH..........1....OBSOLETE ON LATER ....................MODELS 20817 WHEEL, HAND HANDLE 0281 BEARING, THRUST, NICE 607 20282 BEARING, TROWEL CONTROL 0122 C SCREW, SHS 3/8-16 X 1/2 3615...
  • Page 44 STANDARD HANDLE ASSY. (NEW STYLE) APPLY THREAD LOCK (LOCTITE 242 BLUE OR EQUIVALENT). PAGE 44 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 45 STANDARD HANDLE ASSY. (NEW STYLE) PART NO. PART NAME QTY. REMARKS 0786 SCREW, BHC 1/4-20 X 3/8 NYL PATCH ,NP 0786A SPACER, SLIDE BLOCK GUIDE 1116 NUT, BRASS JAM 5/16-18 1284 SCREW, HHC 3/8-16 X 1 1/2 3233 WASHER, FENDER, 1.5OD X 3/8ID 9154 SCREW, HHC 3/8-16 X 1 3/4 10133...
  • Page 46 QUICK-PITCH™ HANDLE ASSY. (OLD STYLE) DETAIL “A” DETAIL “A” DETAIL “B” DETAIL “B” APPLY THREAD LOCK (LOCTITE 242 BLUE OR EQUIVALENT). PART OF ENGINE ASSEMBLY. COMPLETE HANDLE ASSY, P/N 12645 NO LONGER AVAILABLE. WHEN REPLACING ENTIRE ASSY, USE P/N 22257. SEE QUICK PITCH HANDLE ASSY.
  • Page 47 QUICK-PITCH™ HANDLE ASSY. (OLD STYLE) PART NO. PART NAME QTY. REMARKS 20478 GRIP, HANDLE 20774 COVER, PAD HANDLE 10136 WASHER, FLAT 3/8 SAE 12556 HANDLE, ADJUSTABLE 20526 DECAL, LATCH WARNING 21171 THROTTLE 20527 DECAL, Q.P. WARNING 20389 HANDLE, QUICK-PITCH ™ 1746 TRIGGER, QP CHROMED 12405...
  • Page 48 QUICK-PITCH™ HANDLE ASSY. (OLD STYLE) DETAIL “A” DETAIL “A” DETAIL “B” DETAIL “B” APPLY THREAD LOCK (LOCTITE 242 BLUE OR EQUIVALENT). PART OF ENGINE ASSEMBLY. COMPLETE HANDLE ASSY, P/N 12645 NO LONGER AVAILABLE. WHEN REPLACING ENTIRE ASSY, USE P/N 22257. SEE QUICK PITCH HANDLE ASSY.
  • Page 49 QUICK-PITCH™ HANDLE ASSY. (OLD STYLE) PART NO. PART NAME QTY. REMARKS 1736 DECAL, ARROW 1718 NUT, QP TRIM CONTROL ADJUST 1732 BOLT, STRIPPER 3/8 X 1/2 1717 SCREW, QP TRIM ADJUSTMENT 12642 TUBE, MAIN HANDLE 1758 DECAL, PATENT QP 20845 SWIVEL, ENGINE THROTTLE CABLE 21173 HOUSING, THROTTLE CABLE 74”...
  • Page 50 QUICK-PITCH™ HANDLE ASSY. (NEW STYLE) PAGE 50 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 51 QUICK-PITCH™ HANDLE ASSY. (NEW STYLE) PART NO. PART NAME QTY. REMARKS 1116 NUT, BRASS JAM 5/16-18 1665 SCREW, HHC 3/8-16 X 2 1715 Q.P. SPRING CENTER BALANCE 1717 SCREW, QP TRIM ADJUSTMENT W/A 1718 NUT , QP TRIM CNTL ADJUSTMENT 20389 HANDLE, QP 1729...
  • Page 52 4-BLADE SPIDER ASSY. PAGE 52 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 53 4-BLADE SPIDER ASSY. PART NO. PART NAME QTY. REMARKS 12208 WEAR RING 12778 FLANGE BEARING 10816 THRUST COLLAR ............. 1 ... INCLUDES ITEMS W/# 9009 WEAR PLATE 11039 BUSHING 0164 B RADIUS HEAD 3/8- 16 x 1-1/4” 1875 INT. SHKP. WASHER 3/8” 1876 JAM NUT 3/8- 16 0105...
  • Page 54 GEARBOX & ENGINE MOUNTS ASSY. PAGE 54 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 55 GEARBOX & ENGINE MOUNTS ASSY. PART NO. PART NAME QTY. REMARKS 12909 SEAL, OIL TCM 10172VTB-H 2295 SCREW, HHC 1/4-20 X 7/8 9047 FLANGE, COUNTERSHAFT 2309 O-RING, 2-13/16" VITON 12583 SPACER, 1.38OD X 1.06 X 1.168L 232 A BEARING, CUP, TIMKEN 1932 9045 BEARING, CONE, TIMKEN 1986 1580...
  • Page 56 ENGINE, 11 HP HONDA ASSY. PAGE 56 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 57 ENGINE, 11 HP HONDA ASSY. PART NO. PART NAME QTY. REMARKS 1388 ENGINE 11 HP HONDA 1391 HHCS 5/16-24 x 1-1/2" 0161 C LOCK WASHER 5/16" 0300 B FLAT WASHER 5/16" 0310 SQUARE KEY 1/4X1/4X1.1/2" 2480 CLUTCH, 4" P-G 35 DEGREE 1" 1488 WIRE, SAFETY SWITCH 1475...
  • Page 58 ENGINE, 13 HP HONDA ASSY. PAGE 58 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 59 ENGINE, 13 HP HONDA ASSY. PART NO. PART NAME QTY. REMARKS 3364 ENGINE 13HP HONDA 1391 HHCS 5/16-24 x 1-1/2" 0161 C LOCK WASHER 5/16" 0300 B FLAT WASHER 5/16" CLUTCH, COMET 302353C ......1 ... INCLUDES ITEM W/% 11535 1304 SQUARE KEY 1488...
  • Page 60 GUARD RING ASSY. PAGE 60 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)

  • Page 61: Guard Ring Assembly

    GUARD RING ASSY. PART NO. PART NAME QTY. REMARKS 9178 GUARD RING ASSEMBLY HDA-SERIES WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV. #9 (07/02/10) — PAGE 61...
  • Page 62 STABILIZER RING ASSY. SEE DETAIL “A” DETAIL “A” APPLY LOCTITE 242 BLUE OR EQUIVALENT. PAGE 62 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 63 STABILIZER RING ASSY. PART NO PART NAME QTY. REMARKS 0161 C WASHER, LOCK, 5/16 MED 1237 SCREW, SCH 5/16-18 X 7/8, NYL, NP 1723 ROD END, 5/16-24 MALE 6014 C NUT, HEX FINISH 5/16-24 7311 RING, STABILIZER, HD-4 HDA-SERIES WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV. #9 (07/02/10) — PAGE 63...
  • Page 64 BLADES & ARM ADJ. FIXTURE ASSY. (OPTIONS) PAGE 64 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 65 BLADES & ARM ADJ. FIXTURE ASSY. (OPTIONS) PART NO. PART NAME QTY. REMARKS COMBO FLOAT & FINISH BLADE ....4 ..CONTACT UNIT SALES DEPT./ACC. ITEM ENDURO COMBO FLOAT &FINISH BLADE . 4 ..CONTACT UNIT SALES DEPT./ACC. ITEM FLOAT BLADE ..........4 ..CONTACT UNIT SALES DEPT./ACC. ITEM FINISH BLADE ..........
  • Page 66 LIFTING BAIL ASSY. (OPTION) PAGE 66 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 67 LIFTING BAIL ASSY. (OPTION) PART NO. PART NAME QTY. REMARKS LIFTING BAIL ASSY. (13 HP MODEL) . 1 .... CONTACT UNIT SALES DEPT./ACC. ITEM 10229 HHCS 5/16-24X1" 0161 A LOCK WASHER 5/16" LIFTING BAIL ASSY. (11 HP MODEL) . 1 .... CONTACT UNIT SALES DEPT. /ACC. ITEM 2360 RUNNER, BELT (11 HP MODEL) HDA-SERIES WALK-BEHIND TROWEL —...
  • Page 68 HONDA GX340K1QA2 — AIR CLEANER ASSY. PAGE 68 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 69 HONDA GX340K1QA2 — AIR CLEANER ASSY. PART NO. PART NAME QTY. REMARKS 16271ZE2000 GASKET, ELBOW 17210ZE3505 ELEMENT, AIR CLEANER 17218ZE3505 FILTER, OUTER 17231ZE3W00 COVER, AIR CLEANER 17232891000 GROMMET, AIR CLEANER 17235ZH9N00 NOSE, MUFFLER 17238ZE2310 COLLAR, AIR CLEANER 17239ZE1000 COLLAR B, AIR CLEANER 17410ZH9N00 ELBOW, AIR CLEANER .......
  • Page 70 HONDA GX340K1QA2 — CAMSHAFT ASSY. PAGE 70 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)

  • Page 71: Camshaft Assembly

    HONDA GX340K1QA2 — CAMSHAFT ASSY. PART NO. PART NAME QTY. REMARKS 14100ZE3305 CAMSHAFT ASSEMBLY ......1 ... INCLUDES ITEMS W/ 14410ZE3013 ROD, PUSH 14431ZE2010 ARM, VALVE ROCKER 14441ZE2000 LIFTER, VALVE 14451ZE1013 PIVOT, ROCKER ARM 14568ZE1000 SPRING, WEIGHT RETURN 14711ZE3000 VALVE, IN. 14721ZE3000 VALVE, EX.
  • Page 72 HONDA GX340K1QA2 — PISTON ASSY. PAGE 72 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 73 HONDA GX340K1QA2 — PISTON ASSY. PART NO. PART NAME QTY. REMARKS 13010ZE3003 RING SET, PISTON- STANDARD 13011ZE3003 RING SET, PISTON- OS 0.25 13012ZE3003 RING SET, PISTON- OS 0.50 13013ZE3003 RING SET, PPISTON- 0.75 13101ZE3W00 PISTON- STANDARD 13102ZE3W00 PISTON- OS 0.25 13103ZE3W00 PISTON- OS 0.50 13104ZE3W00...
  • Page 74 HONDA GX340K1QA2 — CRANKCASE COVER ASSY. PAGE 74 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 75 HONDA GX340K1QA2 — CRANKCASE COVER ASSY. PART NO. PART NAME QTY. REMARKS 06165ZE3000 GOVERNOR KIT, ..........1 ... INCLUDES ITEMS W/ 11300ZE3602 COVER ASSEMBLY, CRANKCASE Q- TYPE ... 1 ... INCLUDES ITEMS W/ 11381ZE3801 GASKET, CASE COVER 15600ZG4003 CAP ASSEMBLY, OIL FILLER ......1 ... INCLUDES ITEMS W/ 15600735003 CAP ASSEMBLY, OIL FILLER ......
  • Page 76 HONDA GX340K1QA2 — CRANKSHAFT ASSY. PAGE 76 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 77 HONDA GX340K1QA2 — CRANKSHAFT ASSY. PART NO. PART NAME QTY. REMARKS 13310ZE3601 CRANKSHAFT Q- TYPE ......1 .....INCLUDES ITEMS W/ 13351ZE3010 WEIGHT, BALANCER 90756ZE2600 KEY 6.3X6.3X43 961006207000 BEARING, RADIAL BALL 6207 HDA-SERIES WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV. #9 (07/02/10) — PAGE 77...
  • Page 78 HONDA GX340K1QA2 — CYLINDER BARREL ASSY. PAGE 78 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 79 HONDA GX340K1QA2 — CYLINDER BARREL ASSY. PART NO. PART NAME QTY. REMARKS 12000ZE3816 CYLINDER ASSEMBLY ....... 1 ... INCLUDES ITEMS W/ 15510ZE2043 SWITCH ASSEMBLY, OIL LEVEL ....1 ... USE FROM ENGINE SN 2639738 TO 2786139 16541ZE3010 SHAFT, GOVERNOR ARM 32197ZE2003 SUB- HARNESS ..........
  • Page 80 HONDA GX340K1QA2 — CYLINDER HEAD ASSY. PAGE 80 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 81 HONDA GX340K1QA2 — CYLINDER HEAD ASSY. PART NO. PART NAME QTY. REMARKS 12200ZF6W01 CYLINDER HEAD ......... 1 ... INCLUDES ITEMS W/ 12204ZE2306 GUIDE, EX. VALVE OS (OPTIONAL) 12205ZE2305 GUIDE, EX. VALVE OS (OPTIONAL) 12216ZE2300 CLIP, VALVE GUIDE 12251ZE3W00 GASKET, CYLINDER HEAD 12310ZE3791 COVER, HEAD 12315ZE3840...
  • Page 82 HONDA GX340K1QA2 — FAN COVER ASSY. PAGE 82 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 83 HONDA GX340K1QA2 — FAN COVER ASSY. PART NO. PART NAME QTY. REMARKS 16731ZE2003 CLIP, TUBE 19610ZE3010ZA COVER, FAN *R8* (BRIGHT RED) 19631ZE3W00 SHROUD 32197ZH8003 SUB- HARNESS .......... 1 ... USE UP TO ENGINE SN 2639737 36100ZE1015 SWITCH ASSEMBLY, ENGINE STOP ..1 ... USE UP TO ENGINE SN 2639737 36100ZH7003 SWITCH ASSEMBLY, ENGINE STOP ..
  • Page 84 HONDA GX340K1QA2 — FLYWHEEL ASSY. PAGE 84 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 85 HONDA GX340K1QA2 — FLYWHEEL ASSY. PART NO. PART NAME QTY. REMARKS 19511ZE3000 FAN, COOLING 28450ZE3W11 PULLEY, STARTER (SCREEN GRID) 31100ZE3701 FLYWHEEL 90201ZE3V00 NUT, SPECIAL 16MM (1) ......1 ... USE FROM ENGINE SN 2536523 90201ZE3790 NUT, SPECIAL 16MM ........1 ... USE UP TO ENGINE SN 2536522 90741ZE2000 KEY, SPECIAL WOODRUFF 25X18 HDA-SERIES WALK-BEHIND TROWEL —...
  • Page 86 HONDA GX340K1QA2 — FUEL TANK ASSY. PAGE 86 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 87 HONDA GX340K1QA2 — FUEL TANK ASSY. PART NO. PART NAME QTY. REMARKS 16854ZH8000 RUBBER, SUPPORTER 107MM 16955ZE1000 JOINT, FUEL TANK 17510ZE3010ZA TANK, FUEL *NH31* (MCKINLEY WHITE) 17510ZE3010ZD TANK FUEL *T34* (SIMPSON BLUE) 17620ZH7023 CAP, FUEL FILLER ..........1 ....INCLUDES ITEMS W/ 17631ZH7003 GASKET, FUEL FILLER CAP 17672ZE2W01...
  • Page 88 HONDA GX340K1QA2 — IGNITION COIL ASSY. PAGE 88 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 89 HONDA GX340K1QA2 — IGNITION COIL ASSY. PART NO. PART NAME QTY. REMARKS 30500ZE2023 COIL ASSEMBLY, IGNITION 30700ZE1013 CAP ASSEMBLY, NOISE SUPPRESSOR 31512ZE2000 GROMMET, WIRE 36101ZE2701 WIRE, STOP SWITCH 430MM 90015883000 BOLT, FLANGE 6X28 HDA-SERIES WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV. #9 (07/02/10) — PAGE 89...
  • Page 90 HONDA GX340K1QA2 — CARBURETOR ASSY. PAGE 90 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)

  • Page 91: Carburetor Assembly

    HONDA GX340K1QA2 — CARBURETOR ASSY. PART NO. PART NAME QTY. REMARKS 16010ZE2812 GASKET SET 16011ZA0931 VALVE SET, FLOAT 16013ZA0931 FLOAT SET 16015ZE2005 CHAMBER SET, FLOAT ....... 1 ... INCLUDES ITEMS W/ % ..................USE UP TO ENGINE SN BE80B A 16015ZE8005 CHAMBER SET, FLOAT .......
  • Page 92 HONDA GX340K1QA2 — CARBURETOR ASSY. PAGE 92 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 93 HONDA GX340K1QA2 — CARBURETOR ASSY. PART NO. PART NAME QTY. REMARKS 16956ZE1811 SPRING, VALVE LEVER 16957ZE1812 GASKET, VALVE 16967ZE0811 CUP, FUEL STRAINER 93500030060H SCREW, PAN (3X6) ........2 ..USE FROM ENGINE SN BE80B B 9430520122 PIN, SPRING (2X12) 99101ZH80880 JET, MAIN #88 (OPTIONAL) 99101ZH80900 JET, MAIN #90 (OPTIONAL)
  • Page 94 HONDA GX340K1QA2 — MUFFLER ASSY. PAGE 94 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 95 HONDA GX340K1QA2 — MUFFLER ASSY. PART NO. PART NAME QTY. REMARKS 18310ZE3W00 MUFFLER 18320ZE3W01 PROTECTOR, MUFFLER 18323ZE3W40 PROTECTOR, EX. PIPE 18330ZE2W00 PIPE, EX. 18331ZE3810 CAP, MUFFLER 18333ZF6W01 GASKET, EX. PIPE 18333ZK6Y00 GASKET, EX. PIPE (WACKER) 18355ZE3010 ARRESTER, SPARK 18381ZE2W10 GASKET, MUFFLER (ARRESTER) 90013883000 BOLT, FLANGE 6X12 (CT200) 90050ZE1000...
  • Page 96 HONDA GX340K1QA2 — RECOIL STARTER ASSY. PAGE 96 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 97 HONDA GX340K1QA2 — RECOIL STARTER ASSY. PART NO. PART NAME QTY. REMARKS 28400ZEW01ZA STARTER ASSY., RECOIL *R8* BGHT RED ... 1 ..INCLUDES ITEMS W/ 28410ZE3W01ZA CASE, RECOIL STARTER *R8* BGHT RED 28421ZE3W01 PULLEY, RECOIL STARTER 28422ZE2W01 RATCHET, STARTER 28441ZE2W01 SPRING, FRICTION 28442ZE2W01 SPRING, STARTER RETURN...
  • Page 98 HONDA GX340K1QA2 — CONTROL ASSY. NO ART WORK PAGE 98 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)

  • Page 99: Control Assembly

    HONDA GX340K1QA2 — CONTROL ASSY. PART NO. PART NAME QTY. REMARKS 16551ZE3000 ARM, GOVERNOR 16555ZE3000 ROD, GOVERNOR 16561ZE3000 SPRING, GOVERNOR 16562ZE3000 SPRING, THROTTLE RETURN 16570ZE3W20 CONTROL ASSEMBLY, REMOTE 16571ZE3W00 LEVER, CONTROL 16574ZE1000 SPRING, LEVER 16575ZE2W00 WASHER, CONTROL LEVER 16576891000 HOLDER, CABLE 16589ZE1000 SPACER, CONTROL LEVER 16584883300...
  • Page 100 HONDA GX340K1QA2 — LABELS ASSY. PAGE 100 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 101 HONDA GX340K1QA2 — LABELS ASSY. PART NO. PART NAME QTY. REMARKS 87521ZE3W01 EMBLEM 87522ZH9000 LABEL, CAUTION 87528ZE2810 MARK, CHOKE (EXTERNAL) 87532ZH8810 MARK, OIL ALERT (E) 89218ZE1000 WRENCH, SPARK PLUG HDA-SERIES WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV. #9 (07/02/10) — PAGE 101...
  • Page 102 HONDA GX390K1QA2— AIR CLEANER ASSY. PAGE 102 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 103 HONDA GX390K1QA2— AIR CLEANER ASSY. PART NO. PART NAME QTY. REMARKS 16271ZE2000 GASKET, ELBOW 17210ZE3505 ELEMENT, AIR CLEANER ......1 ..INCLUDES ITEMS W/ # 17218ZE3505 FILTER, OUTER 17231ZE3W00 COVER, AIR CLEANER ......1 ..USE UP TO ENGINE SN3125749 17231ZE3W01 COVER, AIR CLEANER 17232891000...
  • Page 104 HONDA GX390K1QA2— CAMSHAFT ASSY. PAGE 104 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 105 HONDA GX390K1QA2— CAMSHAFT ASSY. PART NO. PART NAME QTY. REMARKS 14100ZF6W01 CAMSHAFT ASSEMBLY ......... 1 ..INCLUDES ITEMS W/ ..................USE FROM ENGINE SN 2391940 14100ZF6305 CAMSHAFT ............. 1 ..INCLUDES ITEMS W/ ..................USE UP TO ENGINE SN 2391939 14410ZE3013 ROD, PUSH 14431ZE2000...
  • Page 106 HONDA GX390K1QA2— PISTON ASSY. PAGE 106 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 107 HONDA GX390K1QA2— PISTON ASSY. PART NO. PART NAME QTY. REMARKS 13010ZF6003 RING SET, PISTON (STD.) 13011ZF6003 RING SET, PISTON (OS 0.25), OPT. 13012ZF6003 RING SET, PISTON (OS 0.50), OPT. 13012ZF6005 RING SET, PISTON (OS 0.50), OPT. 13013ZF6003 RING SET, PISTON (0.75) NIPPON, OPT. 13101ZF6W00 PISTON (STANDARD) 13102ZF6W00...
  • Page 108 HONDA GX390K1QA2— CRANKCASE COVER ASSY. PAGE 108 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 109 HONDA GX390K1QA2— CRANKCASE COVER ASSY. PART NO. PART NAME QTY. REMARKS 06165ZE3000 GOVERNOR KIT (OPIONAL) ......1 ..INCLUDES ITEMS W/ # 11300ZE3602 COVER ASSY., CRANKCASE (Q TYPE) ..1 ..INCLUDES ITEMS W/ 11381ZE3801 GASKET, CASE COVER 15600ZG4003 CAP ASSEMBLY, OIL FILLER ......1 ..INCLUDES ITEMS W/ % 15600735003 CAP ASSEMBLY, OIL FILLER ......
  • Page 110 HONDA GX390K1QA2— CRANKSHAFT ASSY. PAGE 110 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 111 HONDA GX390K1QA2— CRANKSHAFT ASSY. PART NO. PART NAME QTY. REMARKS 13310ZF6W10 CRANKSHAFT, Q-TYPE ........1 ..INCLUDES ITEMS W/ 13351ZE3010 WEIGHT, BALANCER 90745ZE2600 KEY 6.3X6.3X43 91001ZF6003 BEARING, RADIAL BALL 6207S HDA-SERIES WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV. #9 (07/02/10) — PAGE 111...
  • Page 112 HONDA GX390K1QA2— CYLINDER BARREL ASSY. PAGE 112 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 113 HONDA GX390K1QA2— CYLINDER BARREL ASSY. PART NO. PART NAME QTY. REMARKS 12000ZF6W12 CYLINDER ASSEMBLY, ALERT ...... 1 ..INCLUDES ITEMS W/ ..................USE UP TO ENGINE SN 3020570 12000ZF6W13 CYLINDER ASSEMBLY, ALERT ...... 1 ..INCLUDES ITEMS W/ ..................USE FROM ENGINE SN 3020571 15510ZE2033 SWITCH ASSEMBLY, OIL LEVEL ....
  • Page 114 HONDA GX390K1QA2— CYLINDER HEAD ASSY. PAGE 114 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 115 HONDA GX390K1QA2— CYLINDER HEAD ASSY. PART NO. PART NAME QTY. REMARKS 12200ZF6W01 CYLINDER HEAD ..........1 ..INCLUDES ITEMS W/ 12204ZE2306 GUIDE, VALVE OS (OPTIONAL) 12205ZE2305 GUIDE, EX. VALVE OS (OPTIONAL) 12216ZE2300 CLIP, VALVE GUIDE 12251ZF6W00 GASKET, CYLINDER HEAD 12310ZE2020 COVER, HEAD ..........
  • Page 116 HONDA GX390K1QA2— FAN COVER ASSY. PAGE 116 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 117 HONDA GX390K1QA2— FAN COVER ASSY. PART NO. PART NAME QTY. REMARKS 16731ZE2003 CLIP, TUBE 19610ZE3010ZB COVER, FAN *NH1*, BLACK 19631ZE3W00 SHROUD 32197ZH8003 SUB-HARNESS ........... 1 ..USE UP TO ENGINE SN 2334667 36100ZE1015 SWITCH ASSEMBLY, ENGINE STOP ..1 ..USE UP TO ENGINE SN 2334667 36100ZH7003 SWITCH ASSEMBLY, ENGINE STOP ..
  • Page 118 HONDA GX390K1QA2— FLYWHEEL ASSY. PAGE 118 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 119 HONDA GX390K1QA2— FLYWHEEL ASSY. PART NO. PART NAME QTY. REMARKS 19511ZE3000 FAN, COOLING 28450ZE3W11 PULLEY, STARTER (SCREEN GRID) 31100ZE3701 FLYWHEEL 90201ZE3V00 NUT, SPECIAL 16MM (1) ......1 ..USE FROM ENGINE SN 2263435 90201ZE3790 NUT, SPECIAL 16MM ........1 ..USE UP TO ENGINE SN 2263434 90741ZE2000 KEY, SPECIAL WOODRUFF 25X18 HDA-SERIES WALK-BEHIND TROWEL —...
  • Page 120 HONDA GX390K1QA2— FUEL TANK ASSY. PAGE 120 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 121 HONDA GX390K1QA2— FUEL TANK ASSY. PART NO. PART NAME QTY. REMARKS 16854ZH8000 RUBBER, SUPPORTER 107 MM 16955ZE1000 JOINT, FUEL TANK 17510ZE3010ZB TANK, FUEL *NH1* (BLACK) 17620ZH7023 CAP, FUEL FILLER ........1 ..INCLUDES ITEM W/ 17631ZH7003 GASKET, FUEL FILLER CAP 17672ZE2W01 FILTER, FUEL 91353671003...
  • Page 122 HONDA GX390K1QA2— IGNITION COIL ASSY. PAGE 122 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 123 HONDA GX390K1QA2— IGNITION COIL ASSY. PART NO. PART NAME QTY. REMARKS 30500ZE2023 COIL ASSEMBLY, IGNITION ....... 1 ..USE UP TO ENGINE SN 2108412 30500ZF6W01 COIL ASSEMBLY, IGNITION ....... 1 ..USE FROM ENGINE SN 2108413 30700ZE1013 CAP ASSEMBLY, NOISE SUPPRESSOR 1 31512ZE2000 GROMMET, WIRE 36101ZE2701...
  • Page 124 HONDA GX390K1QA2— CARBURETOR ASSY. PAGE 124 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)

  • Page 125: Carburetor Assembly

    HONDA GX390K1QA2— CARBURETOR ASSY. PART NO. PART NAME QTY. REMARKS 1 #% 16010ZE2812 GASKET SET 16011ZA0931 VALVE SET, FLOAT 16013ZA0931 FLOAT SET 16015ZE2005 CHAMBER SET, FLOAT ......1 ..INCLUDES ITEMS W/ % .................. USE UP TO ENGINE SN BE85B A 16015ZE8005 CHAMBER SET, FLOAT ......
  • Page 126 HONDA GX390K1QA2— MUFFLER ASSY. PAGE 126 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 127 HONDA GX390K1QA2— MUFFLER ASSY. PART NO. PART NAME QTY. REMARKS 18310ZE2W51 MUFFLER 100DB (SILENT) ......1 ..USE UP TO ENGINE SN 2638033 18310ZE2W61 MUFFLER 100DB ........1 ..USE FROM ENGINE SN 2638034 18320ZE2W61 PROTECTOR, MUFFLER 18323ZE3W40 PROTECTOR, EXHAUST PIPE 18330ZE2W00 PIPE, EXHAUST 18331ZE3810...
  • Page 128 HONDA GX390K1QA2— RECOIL STARTER ASSY. PAGE 128 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 129 HONDA GX390K1QA2— RECOIL STARTER ASSY. PART NO. PART NAME QTY. REMARKS 28400ZE3W01ZB STARTER ASSY., RECOIL *NH1*, BLACK..1 ..INCLUDES ITEMS W/ 28410ZE3W01ZB CASE, RECOIL STARTER *NH1*, BLACK 28421ZE3W01 PULLEY, RECOIL STARTER 28422ZE2W01 RATCHET, STARTER 28441ZE2W01 SPRING, FRICTION 28442ZE2W01 SPRING, STARTER RETURN 28443ZE2W01 SPRING, RATCHET 28444ZE2W01...
  • Page 130 HONDA GX390K1QA2— CONTROL ASSY. NO ART WORK PAGE 130 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)

  • Page 131: Control Assembly

    HONDA GX390K1QA2— CONTROL ASSY. PART NO. PART NAME QTY. REMARKS 16551ZE3000 ARM, GOVERNOR 16555ZE3000 ROD, GOVERNOR 16561ZE3000 SPRING, GOVERNOR 16562ZE3000 SPRING, THROTTLE RETURN 16570ZE3W20 CONTROL ASSEMBLY, REMOTE 16571ZE3W00 LEVER, CONTROL 16574ZE1000 SPRING, LEVER 1675ZE2W00 WASHER, CONTROL LEVER 16576891000 HOLDER, CABLE 16578ZE1000 SPACER, CONTROL LEVER 16581ZE3W00...
  • Page 132 HONDA GX390K1QA2— GASKET KIT ASSY. NO ART WORK PAGE 132 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)

  • Page 133: Gasket Kit Assembly

    HONDA GX390K1QA2— GASKET KIT ASSY. PART NO. PART NAME QTY. REMARKS 11381ZE3800 GASKET, CASE COVER 12251ZF6W00 GASKET, CYLINDER HEAD 12391ZE2020 GASKET, CYLINDER HEAD COVER 16221ZF6800 GASKET, CARBURETOR 16223ZE3W00 GASKET, INSULATOR 18333ZE3800 GASKET, EXHAUST PIPE 18333ZF6W01 GASKET, EXHAUST PIPE 18381ZE2W10 GASKET, MUFFLER (ARRESTER) 06111ZF6407 GASKET KIT HDA-SERIES WALK-BEHIND TROWEL —...
  • Page 134 HONDA GX390K1QA2— LABELS ASSY. PAGE 134 — HDA-SERIES WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #9 (07/02/10)
  • Page 135 HONDA GX390K1QA2— LABELS ASSY. PART NO. PART NAME QTY. REMARKS 87521ZF6W01 EMBLEM 87522ZH9000 LABEL, CAUTION 87530ZF6W10 LABEL, SPECIFICATION ......1 ..USE UP TO ENGINE SN 2172909 87532ZH8810 MARK, OIL ALERT (E) 89218ZE1000 WRENCH, SPARK PLUG 87576ZH7W00 LABEL, FUEL CAUTION HDA-SERIES WALK-BEHIND TROWEL —...

  • Page 136: Terms And Conditions Of Sale - Parts

    Multiquip be $5.00. meeting this requirement. liable for loss of profit or good will or for any Special order items.
  • Page 137 NOTES HDA-SERIES WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV. #9 (07/02/10) — PAGE 137...
