Summary of Contents for Iceco APL20

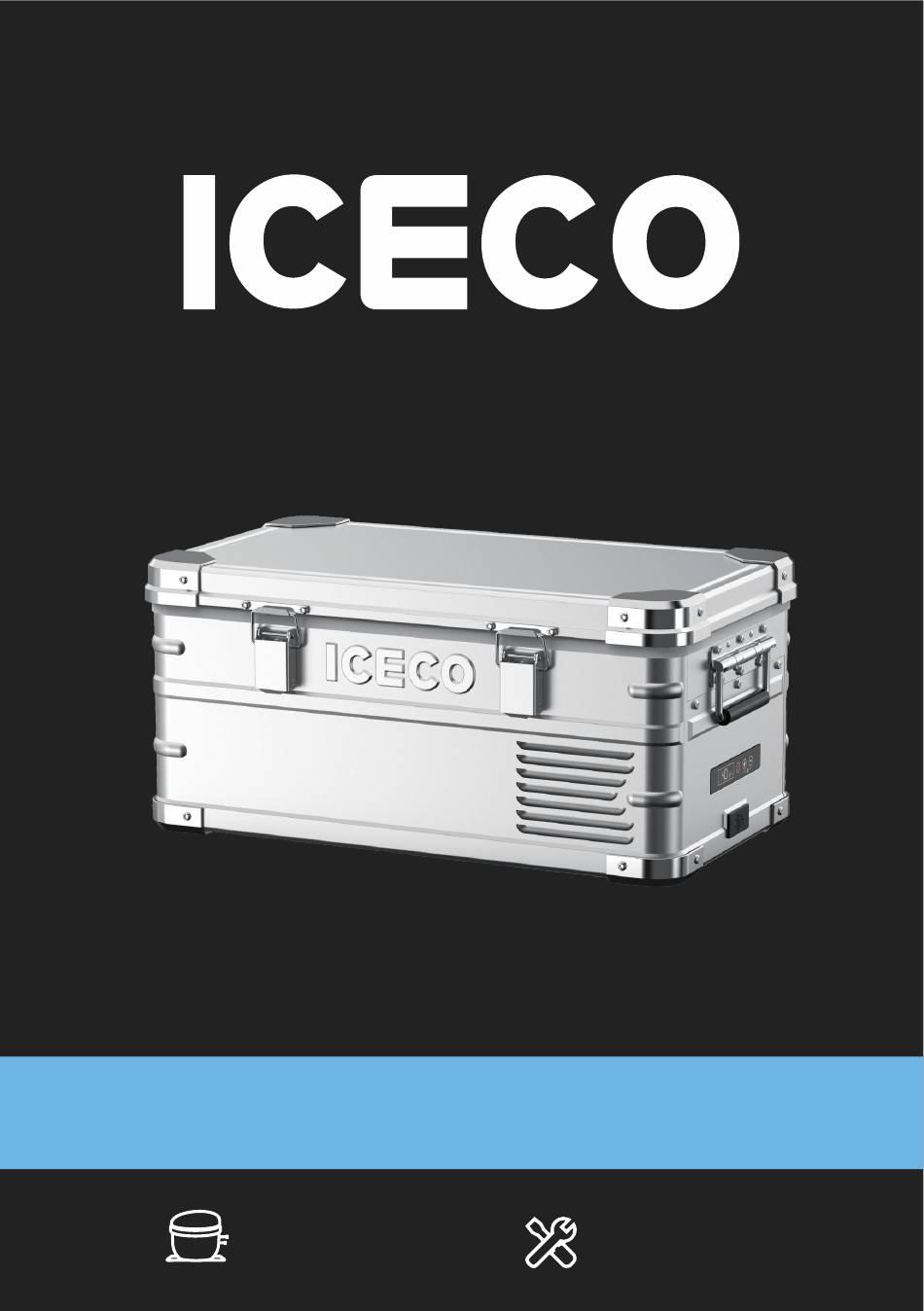

- Page 1 APL20 V5.0 SECOP Compressor Local Technical 5-Year Warranty Support...
-
Page 2: Table Of Contents
Catalogue Supply Details ........Operation ................ON/OFF Button ........MAX/ECO Mode ..... Triple Battery Protection Operation ......Switch Between °C to °F App Control ........Error Code And Solutions ....Cleaning And Maintenance ........... Cleaning ......... Danger Behavior Troubleshooting (Q &... - Page 3 ........4L zone ? Warranty & Return Policy ....Safety Instructions ......Accessories (Purchase Separately) ........Fridge Accessories ......Power Support Series ....ICECO Portable Fridge Catalog...
-
Page 4: Supply Details
Supply Details APL20 APL20 Refrigerator x 1 DC Cigarette 100-240V Universal Lighter Plug Cable x 1 AC Adapter x 1 *Note: The AC adapter is usually used for power bank, vehicles, onboard ships with AC sockets. - Page 5 Model APL20 Color Silver/Other limited colors Dimensions 25.0 x 14.9 x 11.6 inches (L x W x H) (636 x 379 x 294 mm) Net Weight 22.9 lbs (10.4 kg) Capacity 21.0 quarts (20.0 liters) Voltage DC 12/24V Temperature -4°F to 68°F (-20°C to +20°C)
-
Page 6: Operation
Operation Power (Short press to turn on/o ) Temp. Setting (Up) Temp. Setting (Down) -
Page 7: On/Off Button
2.1 ON/OFF Button After powering on, the refrigerator automatically enters standby mode. In the standby state, short press " " button, the refrigerator enters the working state; in the working state, short press " " button, the system enters the standby state. 2.2 MAX &... -
Page 8: Triple Battery Protection Operation
2.3 Triple Battery Protection Operation In the power-on state (press and hold the " " button to turn on the refrigerator; the screen will display the temperature in the power-on state), press and hold the " " and " " buttons at the same time to enter the advanced menu settings. -
Page 9: Switch Between °C To °F
VOLTAGE PROTECTION POSITION HIGH 1Bar 2Bar 3Bar CUT OFF (V) 10.4 11.1 CUT IN (V) 10.9 11.7 12.4 CUT OFF (V) 21.3 22.8 24.3 CUT IN (V) 22.7 24.2 25.7 2.4 Switch Between °C to °F In the power-on state (power on and press the " "... -
Page 10: App Control
App Control Android APP Download and Installation: Android users can nd the "ICECO" app on the Android market, and iPhone users can locate it on the App Store by searching for "ICECO". or Download the app by scanning the QR code above using your mobile phone's QR code scanner. -
Page 11: Error Code And Solutions
Error Code And Solutions Error Code And Solutions Description Code The DC Voltage is below the protection settings and the battery protection mode is activated. The cooling fan is over-loaded with more than 1A of current. Repeated switching of the machine or a faulty input voltage causes this motor start error. - Page 12 Error Code The DC Voltage is below the protection settings and the battery protection mode is activated. Solutions 1. In case of using in the car, turn the car ignition on and start the refrigerator again; 2. In the case of using the AC adapter to connect the electricity at AC socket, you can adjust the battery protection to medium or low mode.
- Page 13 Error Code Repeated switching of the machine or a faulty input voltage causes this motor start error. The pressure di erence in the refrigeration system is too high. Solutions 1. Make sure to turn o the machine and wait for 5 minutes before turning it on again.
- Page 14 Error Code Minimum motor speed error, the compressor is over-loaded, and the motor cannot maintain its minimum speed of 1850 rpms. Solutions 1. Make sure to turn o the machine and wait for 5 minutes before turning it on again. If the compressor starts and then stops a few seconds later, it is an E1 fault, and you need to refer to the above E1 troubleshooting method for troubleshooting;...
- Page 15 Error Code Compressor control module temperature too high or too low protection. (ambient temperature is too high or too low, or the system load is too high, causing the internal temperature of the module/ECU > 212°F or< 14°F) Solutions 1. The compressor will break down at ambient temperatures above 55°C.
- Page 16 E6/LL Error Code The temperature sensing head is loose or damaged. Solutions 1. Check the temperature sensing head to see if the connection is tight. If it is loose, reconnect it and install it in place. 2. If the sensor head is damaged, replacing the sensor head can solve the problem.
-
Page 17: Cleaning And Maintenance
Cleaning And Maintenance 5.1 Cleaning Always unplug the fridge before cleaning the fridge. You can clean the interior and exterior of the fridge by using warm water, mixed with a gentle non-abrasive detergent. You may use a soft sponge, or micro ber cloth. When not in use, it’s better to leave the lids open to reduce odors. -
Page 18: Troubleshooting (Q & A)
Troubleshooting (Q & A) 6.1 Heat Resistance & Water Resistance Heat Resistance ICECO refrigerators are engineered to operate at an ambient temperature of up to 55°C (131°F). Water Resistance ICECO refrigerators can operate under light rain conditions. Please keep the vents above clear of water, and please add some clearances to the bottom of the fridge if the ground is wet. -
Page 19: Why Did It Change Back To The Original Temperature After Setting The Temperature
6.3 Why did it change back to the original temperature after setting the temperature? The Solid/Non-Flashing number on the display is the CURRENT interior temperature. The Flashing number is your SET temperature after adjustment. The compressor will shut o when the SET temperature is reached. -
Page 20: What Is The Function Of Triple Battery Protection? How Do They Work
6.6 What is the function of triple battery protection? How do they work? The triple battery protection is designed to prevent over-discharge and battery depletion. When the measured DC voltage is below the set value, the compressor is shut o to prevent battery depletion. VOLTAGE PROTECTION POSITION HIGH... -
Page 21: What Is The 24 Hours Power Consumption
6.7 What is the 24 hours power consumption? Electrical Electrical Model Model Power Power APL20 GO20 0.293 KW·H 0.433 KW·H APL35 JP30 ProS 0.381 KW·H 0.323 KW·H APL55 JP40 ProS 0.326 KW·H 0.323 KW·H JP30 JP50 ProS 0.452 KW·H 0.405 KW·H... -
Page 22: Why Is There A Temperature Di Erence Between The Actual Temp And The Set Temp In The 4L Zone
6.9 Why is there a temperature di erence between the actual temp and the set temp in the 4L zone ? This is because the main temp control zone of the compressor is the 16L area. Normally, the actual temp in the 4L area will be 9°F higher than the temp in the 16L area (lab data). -
Page 23: Warranty & Return Policy
Please call us: +1 (888) 606 1046 (Mon-Fri 9:00am-6:00pm PT) Please email us: cial@icecofreezer.com (for Amazon/Walmart orders) support@icecofreezer.com for website orders support@iceco-us.com for other orders *Please let us know your order number rst for a quick solution. - Page 24 If the product is received damaged or defective during transportation, you will need to contact our customer service within 2 business days. Make sure to provide relevant photos or videos, your order ID number, and your name. A customer service agent will help assist into solving the issue at a timely manner (Return, Exchange, or Discount Compensation).
-
Page 25: Safety Instructions
Safety Instruction Please read the user manual and safety instructions carefully before using the appliance. By ignoring the safety instructions, the manufacturer cannot be held responsible for the damage. The use of accessories that are not recommended by manufacturer can cause injuries and will invalidate any warranty that you may have. - Page 26 Please don't put hot/warm food into the fridge directly without letting it cooling o . Place/arrange the content of your fridge securely when using the refrigerator inside a moving vehicle. To maximize energy savings, please make sure the lid is closed and secure, and only open the fridge when you need to.
- Page 27 WARNING! Please keep the fridge in a well ventilated area. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical devices inside the food storage compartments of the appliance, unless approved/recommended by the manufacturer.
- Page 28 Further information is provided on the technical data label inside the product. 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 29 DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer: *Take o the doors. *Leave the shelves in place so that children may not easily climb inside.
- Page 30 FCC warning: Any Changes or modi cations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 31: Accessories (Purchase Separately)
Accessories (Purchase Separately) 9.1 Fridge Accessories Insulated Cover APL20 9.2 Power Support Series PB250 PB1000 250Wh 1057Wh Battery Solar Panel Magnetic Battery... -
Page 32: Iceco Portable Fridge Catalog
9.3 ICECO Portable Fridge Catalog Dual Zone Capacity 21 quarts Cooling Range 0°F to 50°F Consumption 0.433 (KW.H/24H) Product Weight 27.5 lbs GO20 Product dimension 22.4 x 12.6 x 12.4 White/Gray (L*W*H) inches /Other limited colors Single Zone Capacity 31/40/50 quarts Cooling Range -4°F to 68°F... - Page 33 Single Zone Capacity 47/78 quarts Cooling Range 0°F to 50°F Consumption 0.4348/0.416 (KW.H/24H) Product Weight 50.6/62.5 lbs Product dimension 27.4 x 15.8 x 19.2/ VL45/74 (L*W*H) 32.3 x 19.4 x 19.6 Green/Other limited colors inches Single Zone Dual Zone Capacity 63/68 quarts Cooling Range 0°F to 50°F...
- Page 34 Cooling Range -4°F to 68°F Consumption 0.293/0.381 (KW.H/24H) Product Weight 22.9/32.0 lbs Product dimension 25.0 x 14.9 x 11.6/ APL20/35 (L*W*H) 27.0 x 14.4 x 15.7 Sliver/Other limited colors inches Dual Zone Capacity 58 quarts Cooling Range -4°F to 68°F Consumption 0.326...
- Page 36 Cooler Than A Cooler +1 (888) 606 1046 (Mon-Fri 9:00am-6:00pm PT) cial@icecofreezer.com (for Amazon/Walmart orders) support@icecofreezer.com (for website orders) support@iceco-us.com (for other orders)
