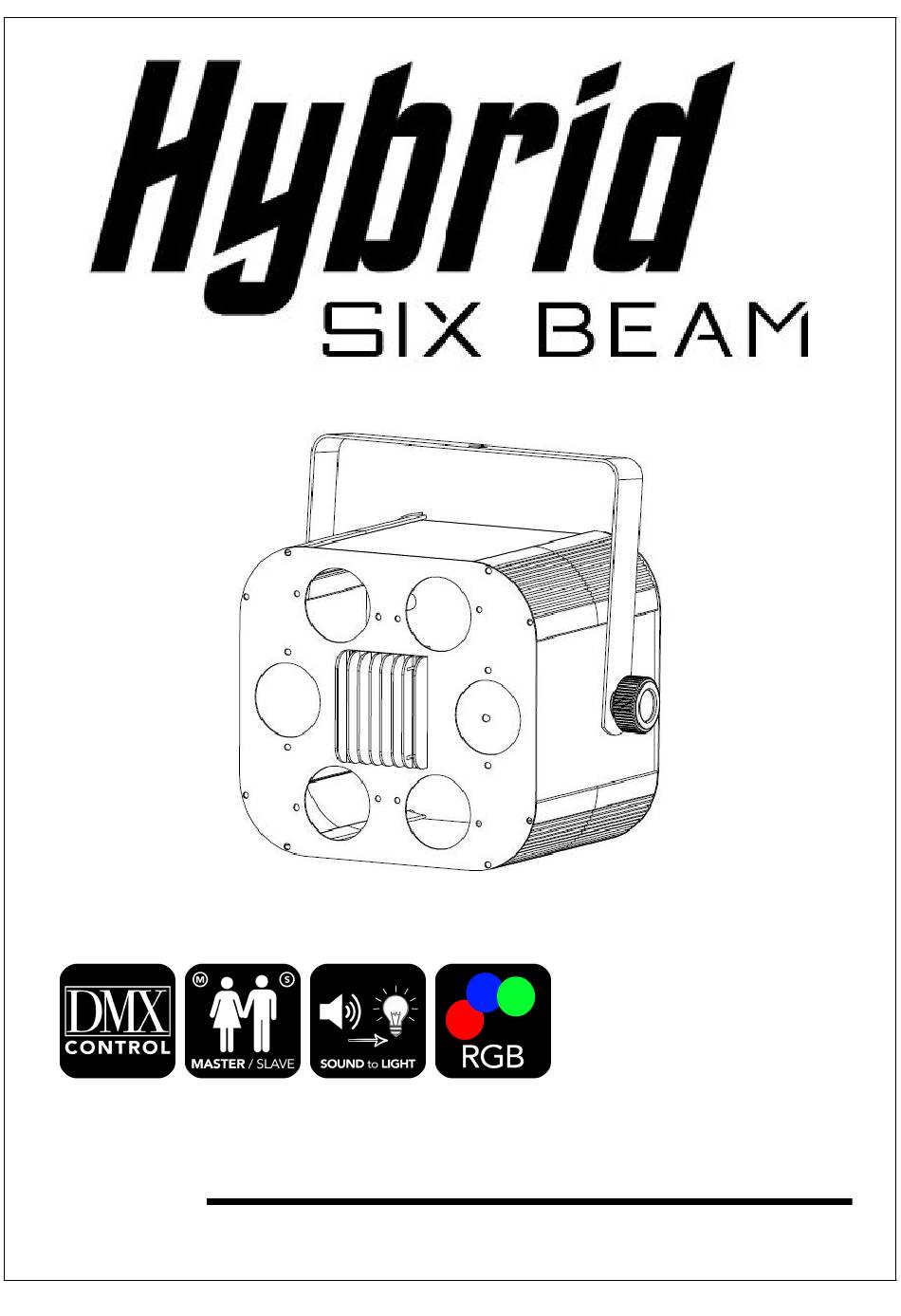

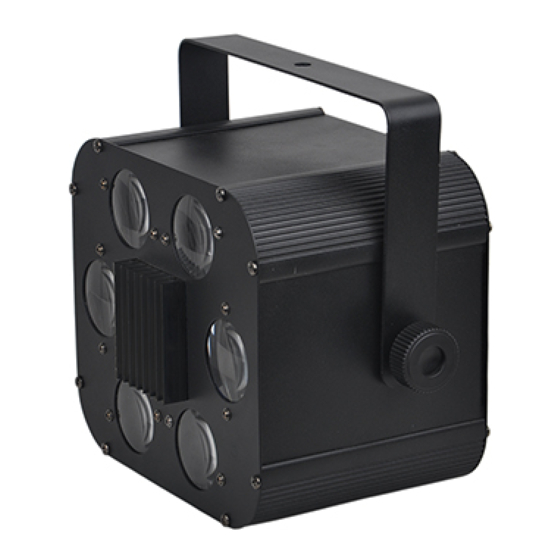

  • Page 1 User Manual Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions 2. Technical Specifications 3. Installation 4. Main Function 5. How To Control The Unit 6. DMX512 Configuration 7. DMX512 Connections 8. Troubleshooting 9. Fixture Cleaning...
  • Page 3 1. Safety Introductions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the fixture to another  user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the fixture.

  • Page 4: Technical Specifications

    2. Technical Specifications  Input Voltage: 220-240 Vac / 50-60 Hz  Power consumption: 15W  Light Source: 9W (3 in 1) LED  Fuse: T 3A (AC 230/250V)  7 DMX Channels  Dimension: 285 x 240 x 280 mm ...

  • Page 5: How To Control The Unit

    1 Microphone：Receive music for the sound active. 2 Dial-up： 4 DMX output：For DMX512 link, use 3/5-pin XLR plug cable to link the next unit. 3 DMX input: For DMX512 link, use 3/5-pin XLR plug cable to input DMX signal. 5.FUSE. 6.ins input：Connect to supply mains power.
  • Page 6 Green Blue Red Fast Strobe Green Fast Strobe Blue Fast Strobe Red+Green Fast Strobe Green+Blue Fast Strobe Blue+Red Fast Strobe X X X Red+Green+Blue Fast Strobe Red Slow Strobe Green Slow Strobe Blue Slow Strobe Red+Green Slow Strobe Green+Blue Slow Strobe Blue+Red Slow Strobe X X X Red+Green+Blue Slow Strobe...
  • Page 7 Value Master...

  • Page 8: Dmx512 Configuration

    6. DMX512 Configuration Channel Value Function 4-127 Clockwise fast to slow 128-255 Counter Clockwise slow to fast 0-255 Red dimmer 0-255 Green dimmer 0-255 Blue dimmer 0-27 28-55 3 colors fade without rotation 56-111 7 colors fade without rotation 112-139 7 colors change with rotation 140-167 7 colors jump with rotation...

  • Page 9: Dmx512 Connections

    7. DMX512 Connections The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. 2. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture.

  • Page 10: Troubleshooting

    8. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The fixture does not work, no light 1. Check the connection of power and main fuse. 2. Measure the mains voltage on the main connector. B.

  • Page 11: Fixture Cleaning

    9. Fixture Cleaning The cleaning of internal must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics. ...
