User Manual
Please read the instructions carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMH 150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hybrid HMH 150

Summary of Contents for Hybrid HMH 150

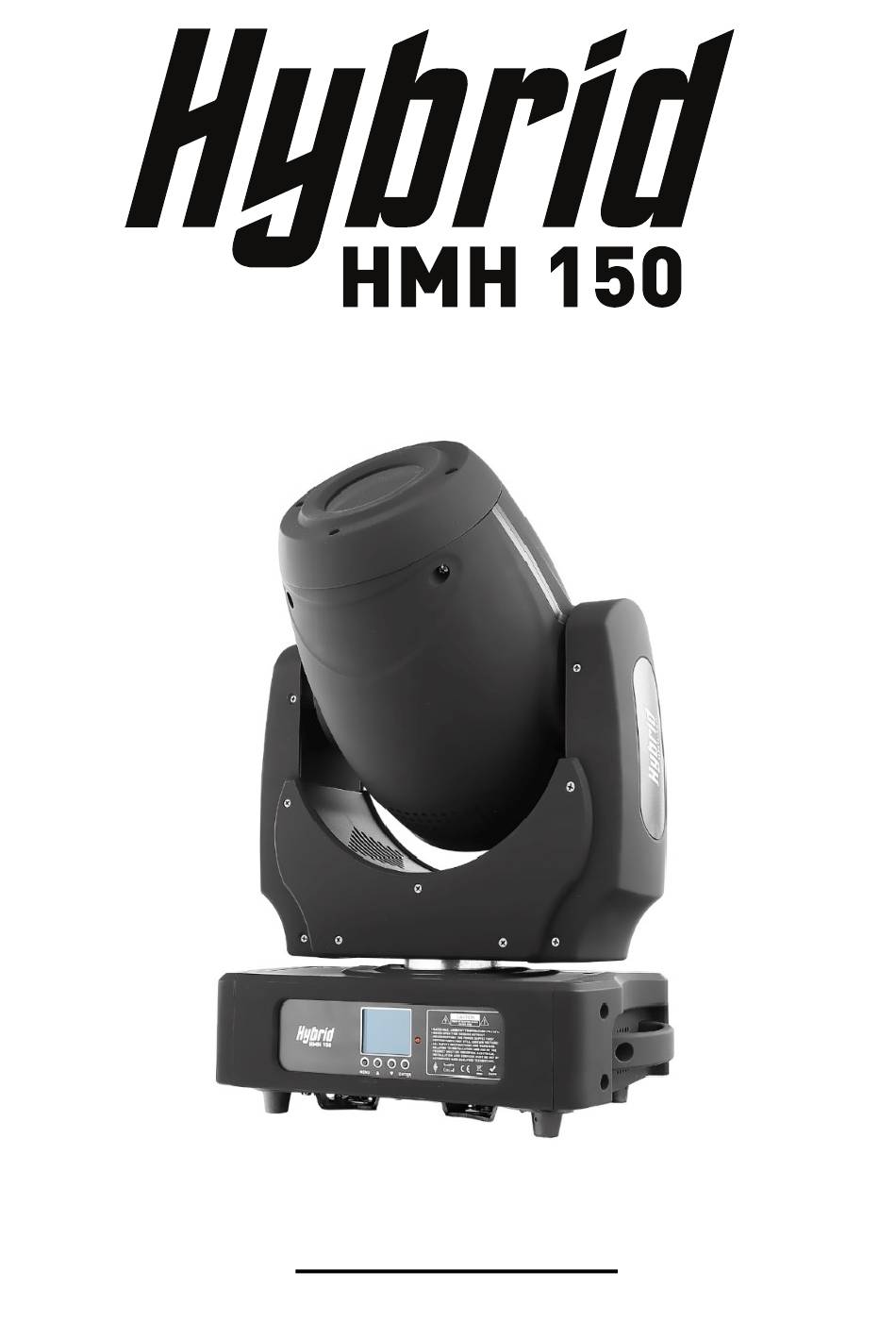

  • Page 1 User Manual Please read the instructions carefully before use...

  • Page 2: Safety Instructions

    Safety Instructions Please read the instructions carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.

  • Page 3: Installation

    the main power suppy immediately.  DO NOT operate in dirty or dusty environments. Clean fixtures regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  DO NOT let cables twist together. ...

  • Page 4: Technical Specifications

    Technical Specifications Power supply - AC 100~240V 50/60Hz Power Consumption - 200W Light Source - 1 X 150W LED Angle Rotating Gobo: 12° 23°(with zoom lens) Movement - Pan: 540° - Tilt: 270° - Pan/Tilt moving speed adjustable. - Automatic Pan/Tilt correction. - Easy calibration and maintenance by magnetic home positioning.

  • Page 5: Home Position Adjustment

    Turn on the unit, press the MENU button, and press the UP/DOWN button until the required function is shown on the monitor. Select the function by the ENTER button. Use the UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return to the last menu. The main functions are shown below (the grey boxes are preset settings）: Address DMX address set...
  • Page 6 Press the MENU button for about 3 seconds into offset mode to adjust the home position. Press the UP/DOWN button to select the password <2323>, press the ENTER button to confirm PARAMETER DEFAULT FUNCTION PAN MOTOR TILT TILT MOTOR COLOUR COLOUR WHEEL GOBO GOBO WHEEL...

  • Page 7: Address Setting

    ATTENTION Termination reduces signal errors and to avoid signal transmission problems and interference. It is always advisable to connect a DMX terminal (Resistance 120 ohm 1/4W between pin2 (DMX-) and pin3 (DMX+) of the last fixture). 1. At the last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 8: Dmx 512 Configuration

    press the ENTER button to store. Press the MENU button to go back to the last menu or idling let the unit idle for one minute to exit menu mode. Please refer to the following diagram to address your DMX512 channel for the first 4 units. Unit 1 Unit 2 Unit 3...
  • Page 9 48-55 Gobo 6 56-63 Gobo 7 64-71 Gobo 7 shake,slow to fast 72-79 Gobo 6 shake,slow to fast 80-87 Gobo 5 shake,slow to fast 88-95 Gobo 4 shake,slow to fast 96-103 Gobo 3 shake,slow to fast 104-111 Gobo 2 shake,slow to fast 112-119 Gobo 1 shake,slow to fast 120-127...
  • Page 10 15 Channels : Channel Function Value 0-255 0-540° Pan 16bit 0-255 Pan fine 16bit Tilt 0-255 0-270° Tilt 16bit 0-255 Tilt fine 16bit P/T Speed 0-255 Pan/Tilt speed from fast to slow White 8-15 Colour 1 16-23 Colour 2 24-31 Colour 3 32-39 Colour 4...
  • Page 11 232-255 Bounce slow to fast None 6 facet prism 7-65 6 facet prism clockwise rotation slow to fast 66-123 6 facet prism Counter-clockwise rotation slow to fast Prism & 124-127 6 facet prism Prism 128-131 None rotation 132-134 Comet prism effect 135-193 Comet prism clockwise rotation slow to fast 194-251...
  • Page 12 136-151 Sound actived Pan&Tilt Marco 1 152-167 Sound actived Pan&Tilt Marco 2 168-183 Sound actived Pan&Tilt Marco 3 184-199 Sound actived Pan&Tilt Marco 4 200-215 Sound actived Pan&Tilt Marco 5 216-231 Sound actived Pan&Tilt Marco 6 232-247 Sound actived Pan&Tilt Marco 7 248-255 Sound actived Pan&Tilt Marco 8 Zoom...

  • Page 13: Troubleshooting

    Troubleshooting The following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, it has no light and the fan does not work 1. Check the power cable is connected and main fuse. 2.
  • Page 14 Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
