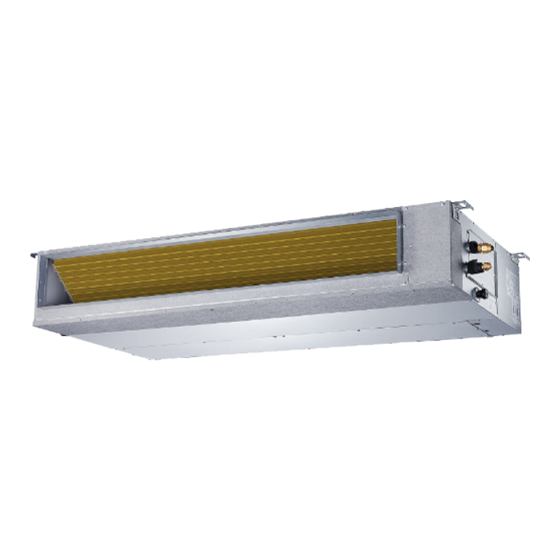

Rinnai Pro Series Operation Manual
Ducted central heating & cooling systems
Hide thumbs
Also See for Pro Series:
- Installation manual (44 pages) ,
- Operation manual (24 pages) ,
- User manual (12 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rinnai Pro Series
Summary of Contents for Rinnai Pro Series
- Page 1 Pro Series Ducted Central Heating & Cooling Systems Operation guide...
- Page 2 Warning Improper installation, adjustment, alteration, service and maintenance can cause property damage, personal injury or loss of life. For more information about buying, using, and servicing of Rinnai appliances call: 0800 RINNAI (0800 746 624). Rinnai New Zealand Limited 105 Pavilion Drive, Mangere, Auckland...
-
Page 3: Table Of Contents
Wi-Fi control ............14 Wi-Fi registration and connection ......15 Limited Warranty ..........16 Central heating and cooling systems, like cars, require regular maintenance and servicing. For reliable operation Rinnai heat pumps / air conditioners should be serviced annually by a licensed tradesperson. -
Page 4: Safety And Important Information
If any of the following conditions occur, turn off your unit immediately and contact your installer or Rinnai for advice: • You smell a burning odour •... -
Page 5: General Information
In severe environments (geothermal areas or areas with caustic gases) take precautions such as applying additional corrosion protection to exposed components. Genuine Rinnai parts Only use the included accessories, parts, and specified parts for installation. Using non-standard parts can cause water leaks, electrical shock, fire, and cause the unit to fail. -
Page 6: Features
Features Feature Explanation Eco mode System will run on an 8-hour saving mode which can reduce energy consumption by up to 60%. Stepless comfort Inverter frequency is smooth ensuring temperatures are technology consistently maintained and operating efficiency is high. Multi outdoor fan speed DC fan motor, outdoor fan speeds increase from two to nine, giving more setting options and energy saving. - Page 7 Feature Explanation Stream cool Inverter PCB’s are cooled by liquid refrigerant allowing for greater performance when the temperature increases outside. Pro-pel coil protection Prevents bacteria growing and improves heat transfer efficiency. Dual sweep Outdoor fan automatically reverses on shutdown to clear dust and debris from the condenser.
-
Page 8: About Your Ducted Unit
Delivering heated or cooled air (often called conditioned air) via a network of ducts in your ceiling or floor cavity, Rinnai ducted systems discreetly delivers powerful home heating and cooling without compromising on your interior design aesthetic. - Page 9 7.2 °C, moisture may begin to freeze on the surface of the outdoor coil. If allowed to build up, this ice would impede the airflow across the coil and reduce the amount of heat absorbed from the outside air. To maintain energy efficient operation the Rinnai system has an automatic defrost cycle.
-
Page 10: Performing Routine Maintenance
If the outdoor coil becomes dirty, use a soft brush or vacuum with a soft brush attachment to clean the exterior surface. If dirt is trapped deep within the coil, contact your installer or Rinnai for service. Condensate Your system removes humidity from your home during the cooling season. -
Page 11: Wired Wall Controller And Functions
Wired wall controllers and functions Your R32 ducted system is compatible with the below wired wall controllers. For full functionality and operation refer to the separate owner and installer guide provided with the controller. °C 26.5°C Standard wall controller Deluxe wall controllers (available in black or white) Feature functions of the wired controllers •... -
Page 12: Troubleshooting
The FAN only mode is selected. In this mode, air blows from the system without cooling or heating. Switch the operation to cooling, heating, or auto. Low refrigerant due to a leak or after long-term use, contact Rinnai. 12 |... - Page 13 Malfunctioning compressor Service person required When to call for service If any of the following conditions occur, turn off your unit immediately and contact your installer or Rinnai. • There is a burning smell coming from the unit • The unit emits loud or abnormal sounds •...
-
Page 14: Wi-Fi Control
Please note NetHome Plus is a third party App not run by Rinnai. For this App to run the home’s Internet router must be running on 2.4 GHz (not 5 GHz)— check the Wi-Fi settings on your device. -
Page 15: Wi-Fi Registration And Connection
As technology and App updates are frequent it has not been placed in this guide. If you are registering and connecting using the Wi-Fi App, please refer to the online user guide available on the Rinnai NZ website. Just enter ‘NetHome Plus app’ in the search field. The steps to register and connect are: 1. -
Page 16: Limited Warranty
6 years 6 years The Rinnai NZ heat pump / air conditioner equipment is warranted against defects in design, materials and workmanship for a period of 6 years from the date the equipment is purchased by the original owner. General warranty terms Rinnai reserves the right to make modifications and change specifications and its parts without notice. - Page 17 9. Rinnai reserves the right to have installed product returned to the factory for inspection. 10. Where a system is installed outside the metropolitan area or further than 40 km from a Rinnai NZ accredited installer or authorised service centre, travel and freight charges (inclusive of insurance) shall be the owner’s responsibility.
- Page 18 Any advice or recommendations given by such parties, including advice about product fitness for purpose and overall system design, sizing and application are not the responsibility of Rinnai. This includes but is not limited to the heat load calculations, airflow and system balancing.
- Page 19 The website will help guide you as to where this information can be found. Warranty claim Please contact Rinnai as soon as possible after the defect and/or fault has been detected. To make a warranty claim, contact Rinnai on 0800 RINNAI (0800 746 624) or email info@rinnai.co.nz. | 19...
- Page 20 Rinnai.co.nz Tel: 0800 746 624 Pro Series ducted central heating & cooling operation guide http://www.youtube.com/rinnainz http://facebook.com.rinnainz 14096-A I 01-23...
