Johnson Controls M9102-AGA-2S Series Quick Start Manual

M9102-AGA-2S, -3S and M9104-xGA-2S, -3S Series Electric Non-Spring Return
Actuators
Description

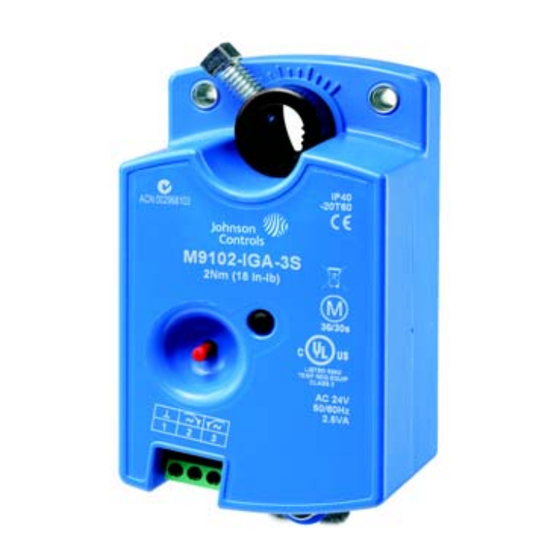

The M9102 and M9104 Series Actuators are
direct-mount, non-spring return electric
actuators that operate on AC 24 V power.
These synchronous motor-driven actuators
provide floating control (AGA), floating control
with automatic shutoff (IGA), and proportional
control with selectable 0-10 or 2-10 VDC
(GGA). The -2S models are equipped with
plenum cables, and the -3S models are
equipped with terminal blocks.
All models are compact in size and are easily
installed on Variable Air Volume (VAV) boxes,
Variable Volume and Temperature (VVT)
two-position zone applications, or small- to
medium-sized dampers with a round shaft up
to 1/2 in. (13 mm) in diameter or a 3/8 in.
(10 mm) square shaft.
The M9102 Series Electric Non-spring Return
Actuators provide a running torque of
18 lb·in (2 N·m), and the nominal travel time is
30-seconds at 60 Hz (36 seconds at 50 Hz) for
90° of rotation. The M9104 Series Electric
Non-spring Return Actuators provide a
running torque of 35 lb·in (4 N·m), and the
nominal travel time is 60-seconds at 60 Hz
(72 seconds at 50 Hz) for 90° of rotation.
Refer to the M9102-AGA-2S, -3S and
M9104-xGA-2S, -3S Series Electric
Non-Spring Return Actuators Product Bulletin
(LIT-1201742) for important product
application information.
Features
• two torques available: 18 and 35 lb·in
(2 and 4 N·m) — offer the most suitable
choice for the specific application
• short 30-second travel time available —
provides a quick response for two-position
zone applications
• 35 dBA nominal audible noise rating —
meets the audible noise requirements for
open ceiling environments
• synchronous drive — provides a constant
rotation time that is independent of the load
• 100,000 cycle rating — provides years of
trouble-free service
• direct shaft mounting with single-screw
coupler — reduces installation time and
provides three-point shaft gripping
• magnetic clutch — protects the actuator
gear train and the damper from damage
due to excessive torque during a stall
condition
• manual gear release — simplifies actuator
setup and adjustments in the field
• plenum cable or screw terminal electric
connections — make wiring quick and easy
The performance specifications are nominal and conform to acceptable industry standards. For applications at conditions beyond these specifications, consult the local Johnson Controls office.
Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products. © 2013 Johnson Controls, Inc.
• floating, floating with timeout, and
proportional 0(2) to 10 VDC control inputs
available — offer a full range of control
input options
• small, compact design — allows installation
in tight-fitting locations
Applications
The M9102 and M9104 Series Electric
Non-spring Return Actuators are designed to
position balancing, control, round, and zone
dampers in Heating, Ventilating, and Air
Conditioning (HVAC) systems. These electric
actuators are also designed to position blades
in a VAV box, or they can be used in VVT
two-position zone applications.
Each actuator mounts directly to the surface in
any convenient orientation using a single
No. 10 self-drilling sheet metal screw (included
with the actuator). No additional linkages or
couplers are required. Electrical connections
on the actuator are clearly labeled to simplify
installation.
Repair Information
If the M9102 or M9104 Series Electric
Non-spring Return Actuator fails to operate
within its specifications, replace the unit. For a
replacement electric actuator, contact the
nearest Johnson Controls® representative.
1-1/4
25/32
(32)
(20)
4-3/32
(104)
1-13/32
(36)
2-13/16
(71)
2-1/4
(57)
M9102/M9104 Series Electric Non-Spring Return Actuator
1
Code No. LIT-1900247
Issued July 15, 2013
M9102/M9104 Series Electric
Non-Spring Return Actuator
Set Screw
Radius
1-3/32
Clearance
(28)
5-5/32
(131)
2-1/16
(52)
Dimensions, in. (mm)
9/16
(14)
3/16
(5)
www.johnsoncontrols.com
