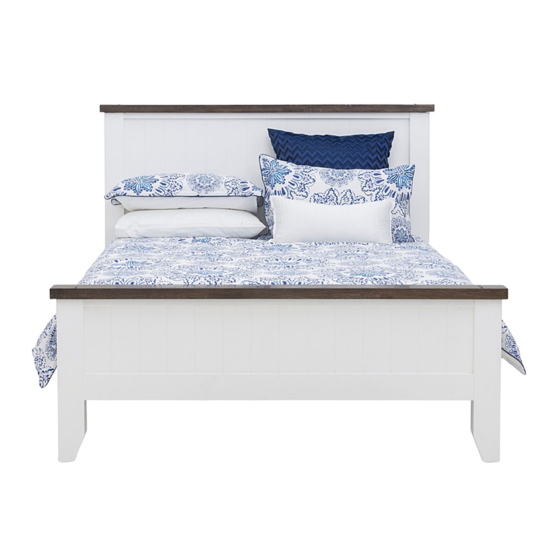

Amart Furniture FRANSCHHOEK 54065 Assembly Instruction Manual

King bed
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084

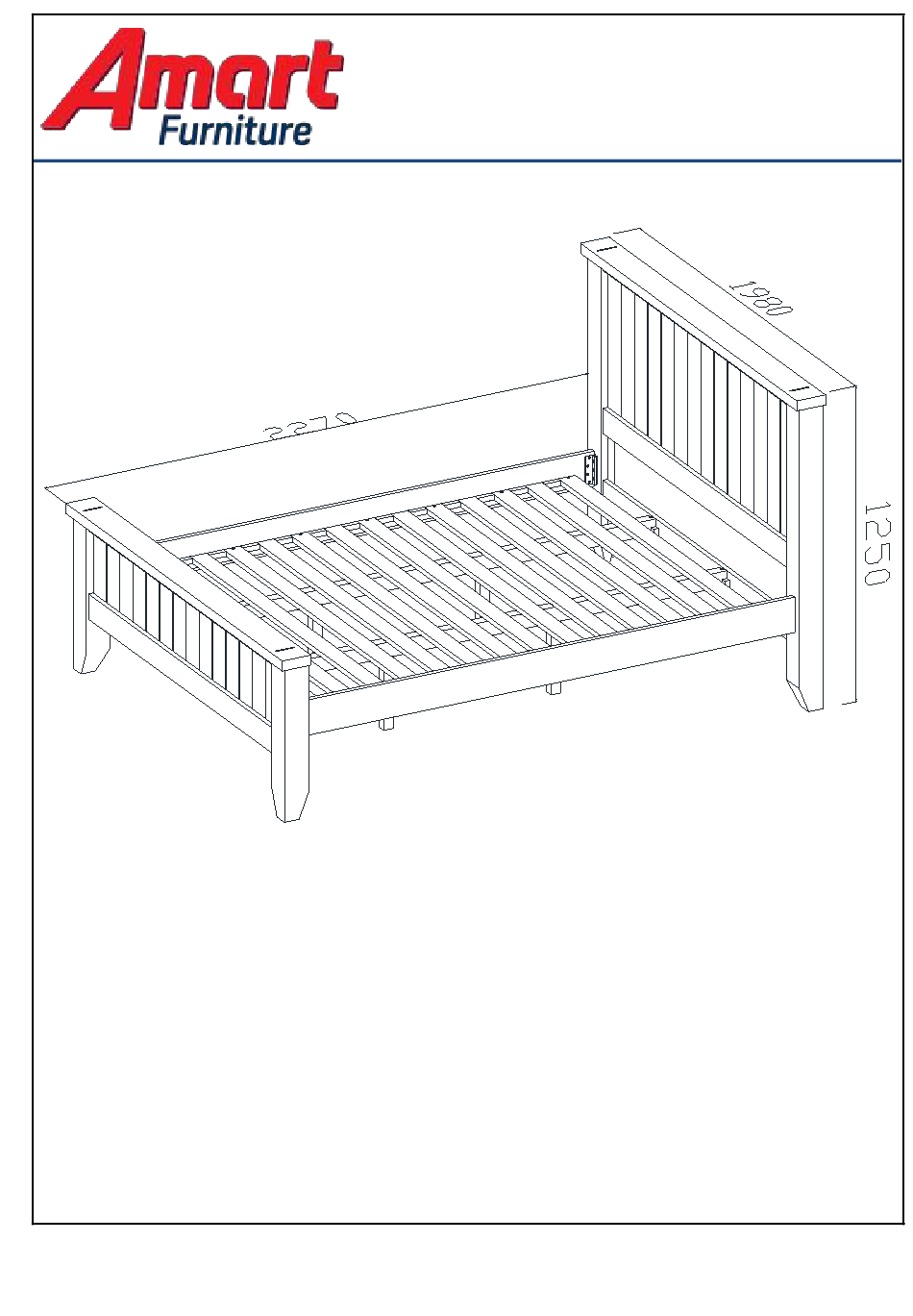

ASSEMBLY INSTRUCTION
LE FRANSCHHOEK- KING BED
ITEM CODE 54065
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
1
54065

Advertisement

loading
Need help?

Need help?

Do you have a question about the FRANSCHHOEK 54065 and is the answer not in the manual?

Questions and answers

Related Manuals for Amart Furniture FRANSCHHOEK 54065

Summary of Contents for Amart Furniture FRANSCHHOEK 54065

  • Page 1 ASSEMBLY INSTRUCTION LE FRANSCHHOEK- KING BED ITEM CODE 54065 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.

  • Page 3: Parts List

    PARTS LIST HEADBOARD FOOTBOARD SIDERAIL CENTRE RAIL SUPPORT LEGS SLATS a. Bolt M6x10 b. Bolt M8x60 c. Allen key M5 d. Allen key M4 8pcs 4pcs e. Screw M4x30 f. Screw M4x40 Flat Washer h. Lock Washer 16pcs 4pcs 4pcs 4pcs 54065...

  • Page 4: Items Required

    ITEMS REQUIRED a. Bolt M6x10 c. Allen key M5 8pcs  Attach side rail ( 3 ) to headboard (1) and footboard (2) using bolts (a).  Tighten with Allen Key (c). 54065...
  • Page 5 ITEMS REQUIRED b. Bolt M8x60 d. Allen key M4 g. Flat Washer h. Lock Washer 4pcs 4pcs 4pcs  Attach Support legs (5) to Centre rail (4) with bolts (b) and Flat Washers (g)&(h).  Tighten with Allen Key (d). 54065...
  • Page 6 ITEMS REQUIRED f. Screw M4x40 4pcs  Attach centre rail (4) to Headboard (1) and Footboard (2) using Screw (f).  Use Screwdriver or Power Drill on Low Speed. 54065...
  • Page 7 ITEMS REQUIRED e. Screw M4x30 16pcs Attach Slats (6) to Siderail (3) using Screw (e).  Use Screwdriver or Power Drill on Low Speed.  Please only screw down every 2 slat.  First and last slats need two screws each. ...
  • Page 8 ASSEMBLY IS COMPLETE CAUTION Always Lift Your Bed When Moving/Relocating – Do Not Drag. Dragging Can Cause The Centre Support Legs To Bend/Break 54065...
  • Page 9 Care and maintenance • A multi-step finish is applied to all our furniture, but all wood comes from nature. Because of this, there will be natural variations in surface texture and grain like knots, mineral streaks and sap runs that may affect the finish. These differences in character are not defects, but distinctions that make each piece of furniture unique.
