900mm
Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia
For any assistance with assembly or for missing parts, please phone
Amart Furniture, Customer Service Freecall 1800 351 084.
ASSEMBLY INSTRUCTION

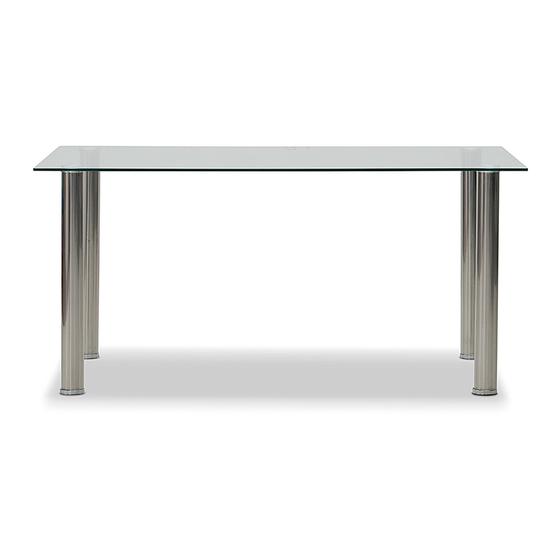

ZIA DINING TABLE
ITEM CODE - 55075
Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia
For any assistance with assembly or for missing parts, please phone
Amart Furniture, Customer Service Freecall 1800 351 084.
1600mm
1-7
750mm
Item Code: 55075
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture 55075
Summary of Contents for Amart Furniture 55075
- Page 1 ASSEMBLY INSTRUCTION ZIA DINING TABLE ITEM CODE - 55075 Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia For any assistance with assembly or for missing parts, please phone Amart Furniture, Customer Service Freecall 1800 351 084. 1600mm 900mm 750mm Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia For any assistance with assembly or for missing parts, please phone Amart Furniture, Customer Service Freecall 1800 351 084.
- Page 2 5. Keep all hardware parts and packaging out of reach of small children. 6. Do not over tighten the screws and bolts as this may damage the the threads. Approximate Assembly 2 persons needed Time:20mins 900mm 1600mm Item Code: 55075...
- Page 3 EXPLODED EXAMPLE Item Code: 55075...
- Page 4 CHECKLIST Washer x 4 Rods 730mm x 4 Hex Nut x 8 Spanner x 1 Nut Tightener x 1 PART NUMBER DIMENSION 1600mm x 900mm x 10mm 75mm x 720mm Chrome Feet Item Code: 55075...
- Page 5 Rods b: Screw the Rods to the aluminium plate on Glass c: Tighten the Hex Nuts to the aluminium plate on Glass Place the Stainless Steel Legs to the aluminium plate on Glass as shown. Item Code: 55075...
- Page 6 Washer x 4 Nut Tightener x 1 Secure the Chromed Feet to the Rods using Hex Nuts and Washers Tighten all nuts, being careful not to over tighten. Now you can turn the assembled product upside down. Item Code: 55075...
- Page 7 Do not strike the glass with hard or pointed items. When cleaning the glass panels, use a damp cloth with washing up liquid or soft soap if necessary. Do not use washing powders or any other substances containing abrasives that may potentially scratch the glass. Item Code: 55075...
