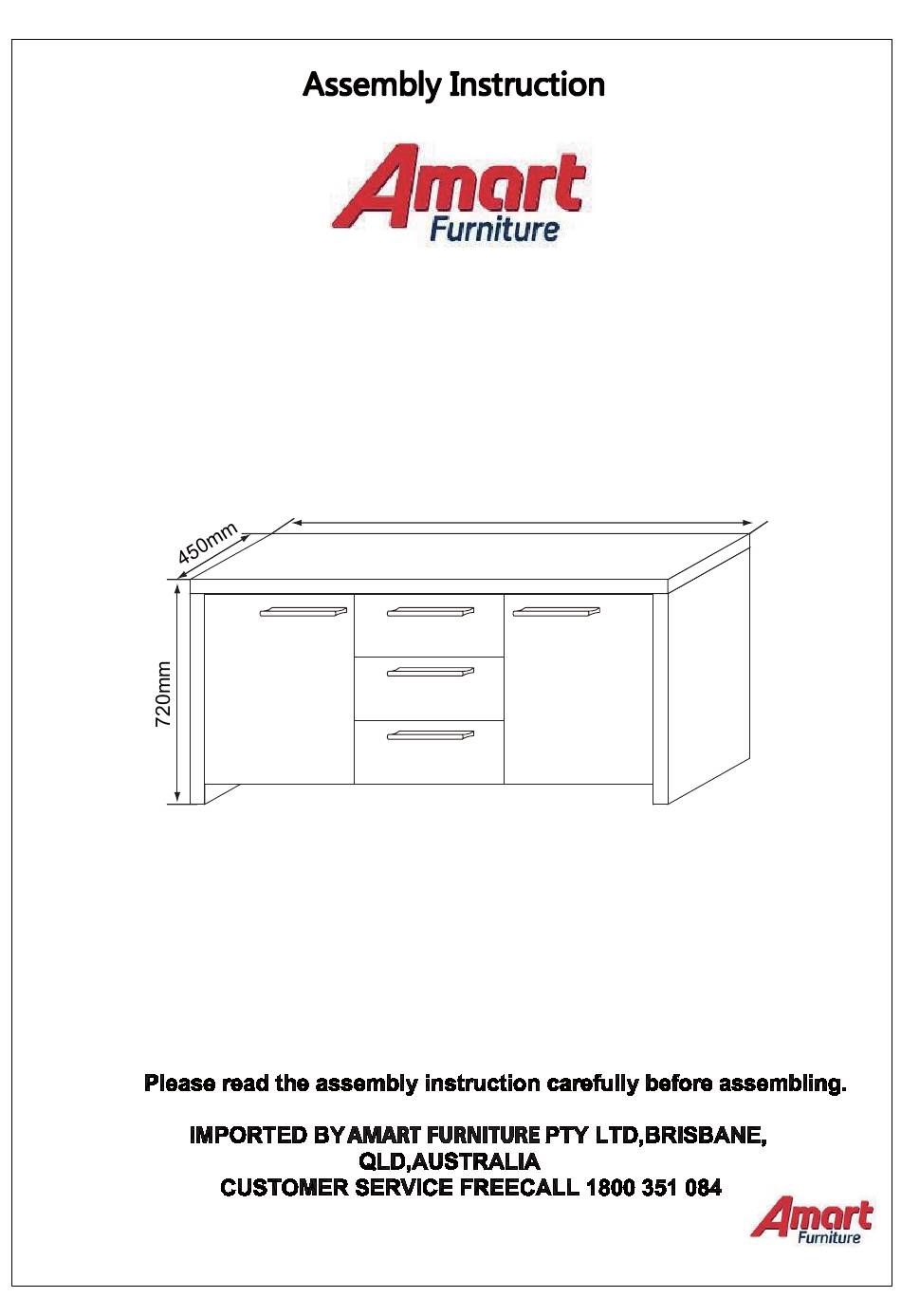

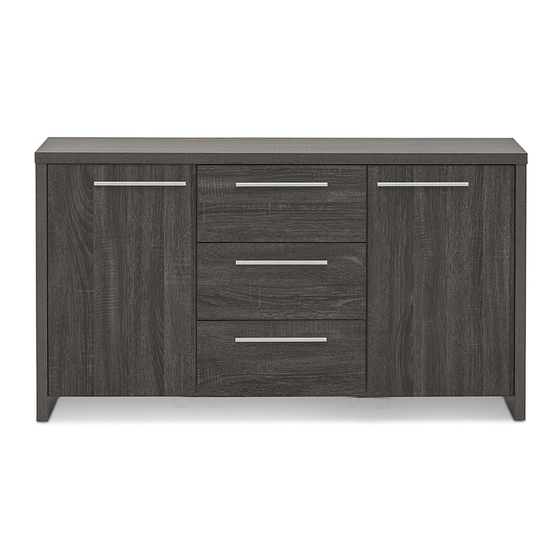

- Page 1 Item Code: 51838 SUMMIT BUFFET 1300mm Item Code: 51838 1-10 2017-6-20...
- Page 2 2000MM WARNING Serious or fatal injuries may occur from furniture toppling over. product Place the heaviest items in lowest drawers the product to become unbalanced necessarily eliminate the risk of furniture toppling over. 2-10 Item Code: 51838 2017-6-20...
- Page 3 3-10 Item Code: 51838 2017-6-20...
- Page 4 CHECKLIST Before you start..1.Choose a clean,level,spacious assembly area. Avoid hard surfaces that may damage the product. 2.Check and ensure that you have all required contents for complete assembly. 3.Always read the assembly instructions carefully before beginning assembly. 4.The packaging and contents can be a choking hazard. Please keep out of reach of small children at all times.
- Page 5 (MM) 1&2 607x429x15 428x140x15 428x387x15 1236x430x15 6&7 448x685x30 1300x450x30 9&10 390x618x15 220x1280x2.7 140x377x15 13&14 140x330x15 384x322x2.7 202x443x15 Item Code: 51838 2017-6-20 5-10...
- Page 6 18xN 3xCR 3xCL STEP 1:Install runner (CL) to panel (1)&(2) with screws (N) . Please pay attention to screw location as shown in diagram. STEP 2:Fix panel (3) between side panel (1)&(2), using screw (A) and dowel (B). STEP 3:Attach panel (4) to panel (1)&(2), using dowel (B) and cam lock part (C)&(D). 6-10 Item Code: 51838 2017-6-20...
- Page 7 STEP 4A:Attach legs (E) to panel (5),using screws (L) . B:Attach panel (5) to the body with screw (A) and dowel (B). TURN OVER STEP 5A:Attach panel (6)&(7) to the body with dowel (B) and cam lock parts (D)&(P). B：Fix foot nail (F) to panel (6)&(7). 7-10 Item Code: 51838 2017-6-20...
- Page 8 STEP 6:Fix top panel (8) to the body ,with dowel (O) and cam lock parts (D)&(P). TURN OVER 3xDL 3xDR 18xN 12xC 12xD 12xA STEP 7:Install drawers as shown in diagram. 1A:Fix cam lock (C) and handle(K) to 2:Join side panels (13)(14) and back drawer front (16) panel(12) with screws (A).
- Page 9 16xN STEP 8A:Install hinges as shown in diagram,and stick part (G) to door corners to reduce noise when opening. B:Assemble drawers to the body. 9-10 Item Code: 51838 2017-6-20...
- Page 10 16xJ STEP 9:Join two back panels with filler (M), and attach back panel (11) to the body with screw (J). 10-10 Item Code: 51838 2017-6-20...
- Page 11 NOTE Item Code: 51838 2017-6-20...
- Page 12 Furniture top Wallboard Bracket Item Code: 51838 2017-6-20...
- Page 13 SAFETY BRACKETS INSTRUCTIONS 1.Attach a bracket to the wallboard with the long screws provided. 2.Attach a bracket to the furniture frame under the top with the short screws provided. 3.Move the furniture into its final position. Thread a strap through the bracket as shown in the illustration, tighten strap until snug.
-
Page 14: Product Care
PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
