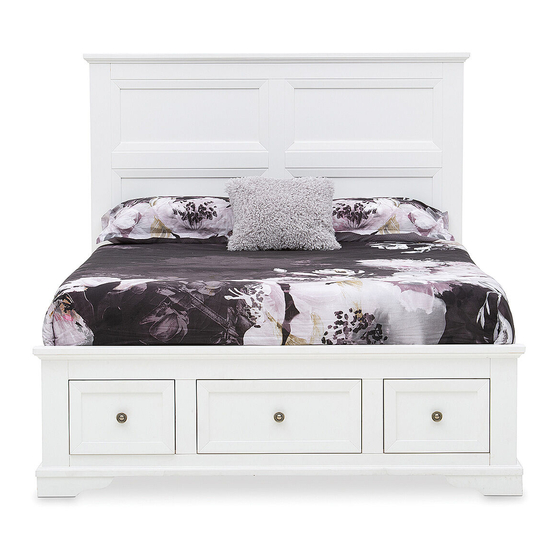

- Page 1 ASSEMBLY INSTRUCTION CHANEL LE KING BED ITEM CODE 56423 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 56423...
-
Page 2: Pre-Assembly Preparation
Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly. Keep all hardware parts and packaging out of reach of small children. Do not over tighten the screws and bolts as this may damage the threads 56423... - Page 3 Bolt M6x60 c. Bolt M8x25 d. Flat washer 20 pcs 6 pcs 8 pcs 14 pcs e. Spring washer f. Allen key g. Screw M4x30 h. Adhesive felt pad 20x20x5 12 pcs 1 pc 20 pcs 14 pcs 56423...
- Page 4 With two people carefully lay the Footboard on to a sheet or piece of cardboard. Attach adhesive felt pad onto the legs. With two people carefully stand the Footboard upright. 56423...
- Page 5 , spring washer and flat washer . STEP 2: Attach side rails to headboard legs , and footboad 2a 2b interlocking the brackets on the siderail with the screws on the headboard/footboard and then push down to lock in place. 56423...
- Page 6 STEP 3 : Tighten the slats and middle rail to all support legs with bolt STEP 4: Affix the Stiffener slat to the side rail with screws bolt 56423...
-
Page 7: Important Note
Once the bed is positioned and the support legs are adjusted to touch floor, the slats can then be laid down and secured before putting on the mattress. · DO NOT push or pull the bed if there is a need for re-positioning as this may result in broken support legs for the centre rail. 56423... - Page 8 suitable and sudden...
