Amart Furniture ANNEKA 54582 Assembly Instruction Manual

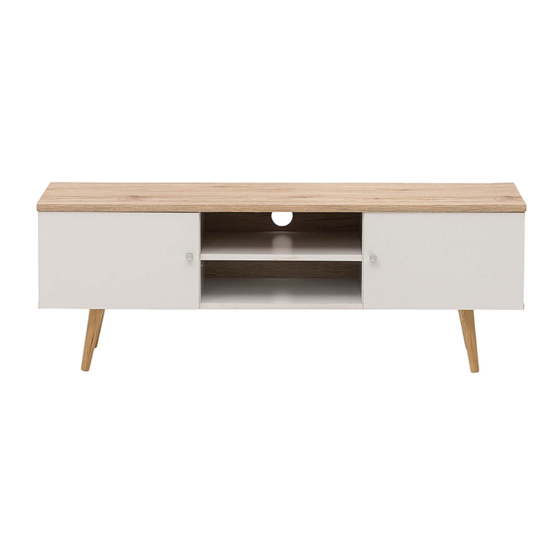

2 door entertainment unit
Hide thumbs

Advertisement

Quick Links

Download this manual

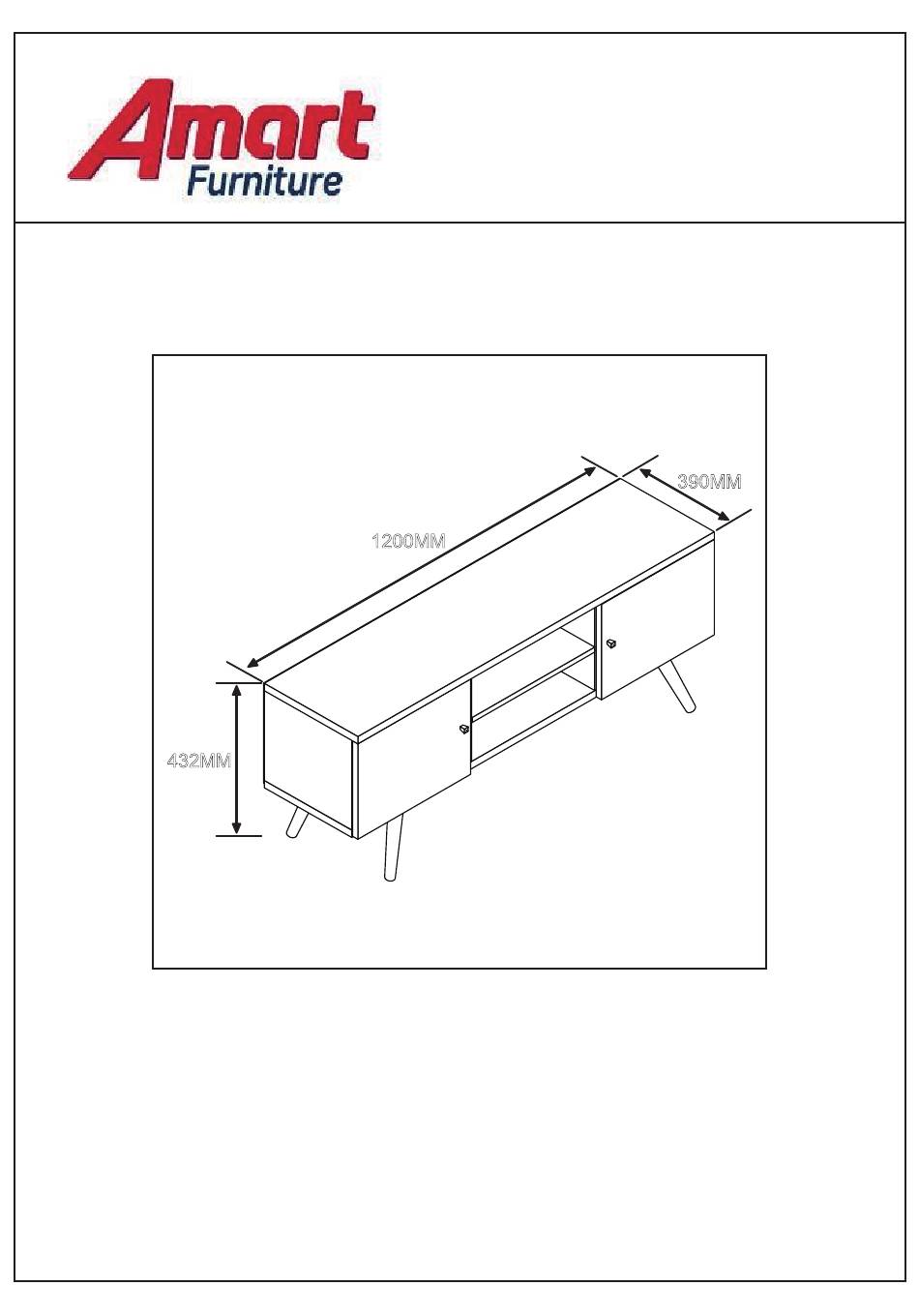

432MM
Imported by
Amart Furniture
For any assistance with assembly or for missing parts please phone
Amart Furniture,
ASSEMBLY INSTRUCTION
ANNEKA 2 DOOR ENTERTAINMENT UNIT
ITEM CODE 54582
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
1200MM
Pty Ltd, Qld, Brisbane Australia.
Customer Service Free call 1800 351 084
1
390MM
54582

Advertisement

loading
Need help?

Need help?

Do you have a question about the ANNEKA 54582 and is the answer not in the manual?

Questions and answers

Related Manuals for Amart Furniture ANNEKA 54582

Summary of Contents for Amart Furniture ANNEKA 54582

  • Page 1 ANNEKA 2 DOOR ENTERTAINMENT UNIT ITEM CODE 54582 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 390MM 1200MM 432MM Imported by Pty Ltd, Qld, Brisbane Australia.

  • Page 2: Before You Start

    PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly Keep all hardware parts and packaging out of reach of small children.
  • Page 3 EXPLODED EXAMPLE LEFT PARTITION PANEL RIGHT PARTITION PANEL SHELF PANEL LEFT SIDE PANEL RIGHT SIDE PANEL TOP PANEL cam lock cam pin dowel BOTTOM PANEL BACK PANEL M15x12mm M7x39mm M8x30mm LEFT DOOR PANEL Cx20 RIGHT DOOR PANEL handle hinge metal plate for leg screw M34x160mm M5x40mm...
  • Page 4 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 54582...
  • Page 5 STEP 1: Insert dowel to left partition panel ,right partition panel and shelf panel Front veneer edge Front veneer edge Bottom edge Left edge Front veneer edge Bottom edge STEP 2: Attach shelf panel to left partition panel and right partition panel with screws .
  • Page 6 STEP 3: Fix cam pin to top panel . Back edge Left veneer edge STEP 4: Insert dowel to left side panel and right side panel . Front veneer edge Front veneer edge Bottom edge Bottom edge 54582...
  • Page 7 STEP 5: Attach top panel to partition panels and side panels with the cam locks . Front veneer edge Front veneer edge Bottom edge Bottom edge STEP 6: Fix metal plates to bottom panel with screws Back edge Left veneer edge 54582...
  • Page 8 STEP 7: Fix legs to the metal plates Back edge Left veneer edge STEP 8: Attach bottom panel onto existing unit with screws . Front veneer edge Front veneer edge Front veneer edge Left veneer edge 54582...
  • Page 9 STEP 9: Fix hinges to right door panel with screws .Attach right door panel to unit by the hings with screws . Fix handles to right door panel with screw . Left veneer edge Bottom veneer edge Left veneer edge Bottom veneer edge Front veneer edge Left veneer edge...
  • Page 10 STEP 10: Fix hinges to right door panel with screws .Attach right door panel to unit by the hings with screws . Fix handles to right door panel with screw . Right veneer edge Bottom veneer edge Right veneer edge Front veneer edge Right veneer edge 54582...
  • Page 11 If there is a problem with the door assembly , please refer to below important note. Customer Attention: To Align Doors & Control Gap In Between Doors. Product doors may need adjusting during & after assembly or once product contains items. Important Note: This can be done by adjusting appropriate screws.
  • Page 12 STEP 12: Fix the back panel to body with screws . Right veneer edge ASSEMBLY COMPLETE DO NOT PUSH OR DRAG THIS FURNITURE – IT WILL CAUSE DAMAGE TO THE LEGS 54582...
  • Page 13 STEP 1: Fix bracket to back panel using screws M3.5*14MM . Put plastic string into bracket. NOTE - This product must be fixed to a wall. Please ensure the correct wall fixings are used. Failure to do so may result in personal injury or cause property damage if the product topples over.
  • Page 14 STEP 2: Fix bracket onto the wall using screws M4*30MM. Join wallboard and the furniture with plastic sting. Furniture top Wallboard Bracket 54582...
  • Page 15 SAFETY BRACKETS INSTRUCTIONS 1.Attach a bracket to the wallboard with the long screws provided. 2.Attach a bracket to the furniture frame under the top with the short screws provided. 3.Move the furniture into its final position. Thread a strap through the bracket as shown in the illustration, tighten strap until snug.

  • Page 16: Product Care

    PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
