Summary of Contents for Omron STC-MBS163POE

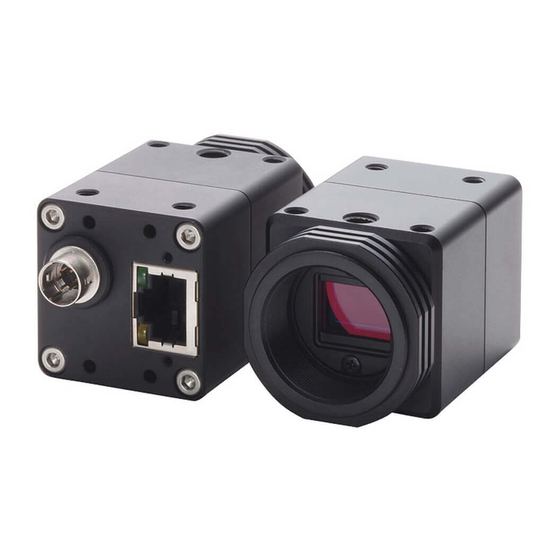

- Page 1 No.18S109-02 GigE Vision Monochrome / Color CMOS PoE Camera STC-MBS163POE Monochrome (1.6M / STC-MCS163POE Color (1.6M / Product Specifications and User’s Guide STC-MBS163POE / STC-MCS163POE 1/71 Product Specifications and User’s Guide...
-
Page 2: Table Of Contents
Naming Method ........................10 Specifications ...................... 11 Electronic Specifications ....................... 11 Spectral Sensitivity Characteristics ..................13 STC-MBS163POE ..........................13 STC-MCS163POE (without IR Cut Filter) ..................13 IR Cut Filter (STC-MCS163POE) ..................... 14 Mechanical Specifications ..................... 14 Environmental Specifications ....................15 Connector Specifications .................. - Page 3 No.18S109-02 Dimensions ......................26 STC-MBS163POE ........................26 STC-MCS163POE ........................27 Sensor Information .................... 28 Pixel Transferring Image ......................28 Camera Operational Modes ................29 Normal Mode ........................... 29 Pulse width trigger mode....................... 30 Timing .............................. 30 Exposure Timing with Positive Polarity Trigger Signal ..............31 Exposure Timing with Negative Polarity Trigger Signal ...............
- Page 4 White balance calculate region setting ..................46 10.8 Gamma correction ....................... 47 10.9 ROI (Region of Interest) ...................... 47 10.10 Pixel Format ........................48 10.11 Binning (Only STC-MBS163POE) ..................48 10.12 Decimation ........................49 10.13 Trigger ..........................50 Trigger signal processing procedure ..................50 10.14 Image Flip ..........................
- Page 5 11.10 EventControl ........................65 11.11 UserSetControl ........................65 11.12 ChunkDataControl ....................... 66 11.13 ActionControl ........................66 11.14 FileAccessControl ....................... 67 11.15 Test Control ......................... 67 11.16 TransportLayerControl ....................... 68 12 Revision History ....................70 STC-MBS163POE / STC-MCS163POE 5/71 Product Specifications and User’s Guide...
- Page 6 Do not use with out of power voltage range Do not wrong wiring. that is specified in the specifications for this This will cause of fire or malfunction. camera. This will cause of fire, electrification or malfunction. STC-MBS163POE / STC-MCS163POE 6/71 Product Specifications and User’s Guide...
- Page 7 It is turn off the camera when maintaining or This will cause of fire, electrification or inspecting the camera. malfunction. This will cause of electrification. [Disposal] Caution It is necessary to dispose as industrial waste. STC-MBS163POE / STC-MCS163POE 7/71 Product Specifications and User’s Guide...
-
Page 8: Product Precautions
Exchange or repair the malfunction camera if the malfunction is occurred by our responsibility. “Warranty” mean is warranty for the delivered camera itself. Please accept the induction damage by the camera malfunction is not included. STC-MBS163POE / STC-MCS163POE 8/71 Product Specifications and User’s Guide... -
Page 9: Software Licensing
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. STC-MBS163POE / STC-MCS163POE 9/71 Product Specifications and User’s Guide... -
Page 10: Introduction
No.18S109-02 Introduction This document describes the specification of the following cameras: STC-MBS163POE / STC-MCS163POE Features GigE Interface Support PoE (Power over Ethernet) Small robust camera housing Maximum frame rate (Full resolution): 70.7 fps @ 1.6M 8bits ... -
Page 11: Specifications
Input Voltage (*2) +10.8 to +26.4 Vdc External power (via 6 pin connector) / Power Over Ethernet (IEEE802.3af) Consumption +12 V / +24 V: 3.6 W, PoE: 4.4 W Default: Bold STC-MBS163POE / STC-MCS163POE 11/71 Product Specifications and User’s Guide... - Page 12 Black Level Optimum Target Luminance IM-600 (Topcon) Gamma Factory Setting (*2) The camera operates with external power when power suppling by external power supply and PoE to camera at same time. STC-MBS163POE / STC-MCS163POE 12/71 Product Specifications and User’s Guide...
-
Page 13: Spectral Sensitivity Characteristics
No.18S109-02 Spectral Sensitivity Characteristics STC-MBS163POE STC-MCS163POE (without IR Cut Filter) STC-MBS163POE / STC-MCS163POE 13/71 Product Specifications and User’s Guide... -
Page 14: Ir Cut Filter (Stc-Mcs163Poe)
Ethernet connector: RJ45 connector Power- I/O connector: HR10A-7R-6PB (Hirose) or equivalent Camera Mounting Six M3 screw holes (Two on top, four on bottom plate) Weight Approximately 65 g (*1) Excluding the connectors STC-MBS163POE / STC-MCS163POE 14/71 Product Specifications and User’s Guide... -
Page 15: Environmental Specifications
74 deg. C, the camera housing temperature (top plate) will be less than 64 deg. C. Taking these steps will maintain the heat rating of the electronic components of the camera. Upper side of camera Measuring point STC-MBS163POE / STC-MCS163POE 15/71 Product Specifications and User’s Guide... -
Page 16: Connector Specifications
Yellow light: Blinking 1 GB Transferring 100 MB Transferring Please use a 1GB supported NIC, Network Switcher and Ethernet cable. Check the setting of NIC and Network Switcher being used is “1GB transferring”. STC-MBS163POE / STC-MCS163POE 16/71 Product Specifications and User’s Guide... -
Page 17: Power And Control Signal Connector
8) Debounced Line 2 9) User Output 1 10) User Output 2 11) Timer 0 Active 12) Software Signal 0 13) Software Signal 1 14) Logic Block 0 15) Pulse Per Second STC-MBS163POE / STC-MCS163POE 17/71 Product Specifications and User’s Guide... - Page 18 Selected signal for “Software Signal 1” at “Software Signal Control” is out. 14) Logic Block 0 “Logic Block 0” signal is out. 15) Pulse Per Second “Pulse / second” signal (50% Duty, 1 Hz interval) is out. STC-MBS163POE / STC-MCS163POE 18/71 Product Specifications and User’s Guide...
-
Page 19: Opto-Isolated Input
The camera has current limiting circuit on camera. The current limiting resistor does not necessary. Opto-isolated output It is necessary to have current limiting resistor at outside of camera, to keep less than 50 mA. STC-MBS163POE / STC-MCS163POE 19/71 Product Specifications and User’s Guide... -
Page 20: Open Collector Gpio
The camera inside circuit may get damage if accidentally uses as output without current limiting resistor. For safety, please add current limiting resistor even use as input. a) Open Collector GPIO uses as output b) Open Collector GIPO uses as input STC-MBS163POE / STC-MCS163POE 20/71 Product Specifications and User’s Guide... -
Page 21: Input And Output Signal Timing (Hardware Trigger)
SensorReadOut Timer0 Parameter “ TimerDelay ” on GenICam Parameter “ TimerDuration ” on GenICam (*1) Please refers “5.2.6 External Hardware Trigger Input Delay” for more details about “External hardware trigger delay” STC-MBS163POE / STC-MCS163POE 21/71 Product Specifications and User’s Guide... -
Page 22: Input And Output Signal Timing (Software Trigger)
Parameter “ TriggerDelay ” on GenICam Trigger delay Exposure Parameter “ ExposureTime ” on GenICam Image out Output signals FrameTriggerWait ExposureActive FramTriggerInternal SensorReadOut Timer0 Parameter “ TimerDuration ” on GenICam Parameter “ TimerDelay ” on GenICam STC-MBS163POE / STC-MCS163POE 22/71 Product Specifications and User’s Guide... -
Page 23: External Hardware Trigger Input Delay
External Trigger Signal External Trigger Signal with camera internal delay Tdelay 6.2.6.2 External Trigger Signal Delay (Negative polarity trigger signal) External Trigger Signal External Trigger Signal with camera internal delay Tdelay STC-MBS163POE / STC-MCS163POE 23/71 Product Specifications and User’s Guide... -
Page 24: Measured External Trigger Signal Delay Through Opt-Isolated Port (Line 0)
2 μseconds +24 V 53.2 μseconds 2 μseconds Note. Please use this measured delay as reference. The delay time may fluctuate depending on photo coupler variation, pull-up voltage and pull-up resister. STC-MBS163POE / STC-MCS163POE 24/71 Product Specifications and User’s Guide... -
Page 25: Measured External Trigger Signal Delay Through Open Collector Gpio Port (Line 2)
2.2 μseconds 2 μseconds +24 V 0.8 μseconds 2 μseconds Note. Please use this measured delay as reference. The delay time may fluctuate depending on transistor variation, pull-up voltage and pull-up resister. STC-MBS163POE / STC-MCS163POE 25/71 Product Specifications and User’s Guide... -
Page 26: Dimensions
No.18S109-02 Dimensions STC-MBS163POE 2-M3 Depth3.5 2-M2 Depth4 1”-32UNF (C mount) 4-M3 Depth3.5 Unit: mm STC-MBS163POE / STC-MCS163POE 26/71 Product Specifications and User’s Guide... -
Page 27: Stc-Mcs163Poe
No.18S109-02 STC-MCS163POE 2-M3 Depth3.5 2-M2 Depth4 1”-32UNF (C mount) 4-M3 Depth3.5 Unit: mm STC-MBS163POE / STC-MCS163POE 27/71 Product Specifications and User’s Guide... -
Page 28: Sensor Information
Pixel (m) of Data: mth pixel being transferred STC-MCS163POE (Color) Pixel 11 Pixel 21 of Data of Data Pixel 12 Pixel 22 of Data of Data Pixel (m, n) of Data: mth pixel of nth line being transferred STC-MBS163POE / STC-MCS163POE 28/71 Product Specifications and User’s Guide... -
Page 29: Camera Operational Modes
No.18S109-02 Camera Operational Modes Normal Mode Exposure Time Expose Image out * The exposure time for each line is same. STC-MBS163POE / STC-MCS163POE 29/71 Product Specifications and User’s Guide... -
Page 30: Pulse Width Trigger Mode
The expose period is low states of trigger signal. Timing Trigger signal (Positive polarity) Expose Image out Note: The exposure time is active pulse duration of trigger signal. Please refers “Exposure Timing” for more details. STC-MBS163POE / STC-MCS163POE 30/71 Product Specifications and User’s Guide... -
Page 31: Exposure Timing With Positive Polarity Trigger Signal
Note 2: Please refers “5.2.6 External Hardware Trigger Input Delay” for more details about “External hardware trigger delay”. Note 3: Please refers “5.2.6 External Hardware Trigger Input Delay” for shortest active pulse duration of trigger signal. STC-MBS163POE / STC-MCS163POE 31/71 Product Specifications and User’s Guide... -
Page 32: Exposure Timing With Negative Polarity Trigger Signal
Note 2: Please refers “5.2.6 External Hardware Trigger Input Delay” for more details about “External hardware trigger delay”. Note 3: Please refers “5.2.6 External Hardware Trigger Input Delay” for shortest active pulse duration of trigger signal. STC-MBS163POE / STC-MCS163POE 32/71 Product Specifications and User’s Guide... -
Page 33: Edge Preset Trigger Mode
In this trigger mode with negative polarity, the expose starts at falling edge of trigger signal. The exposure duration time is based on preset exposure setting stored by camera setting communication. Timing Trigger signal (Positive polarity) Expose Image out Note: The exposure time is “Exposure Time” on GenICam setting. STC-MBS163POE / STC-MCS163POE 33/71 Product Specifications and User’s Guide... -
Page 34: Exposure Timing With Positive Polarity Trigger Signal
“Line Debounce Time” setting time. Please input trigger signal has more than “Line Debounce Time” time active pulse width trigger signal. Note 2: Please refers “5.2.6 External Hardware Trigger Input Delay” for more details about “External hardware trigger delay”. STC-MBS163POE / STC-MCS163POE 34/71 Product Specifications and User’s Guide... -
Page 35: Edge Preset Trigger Mode (Trigger Input While Image Is Out)
However, if the trigger signal input while exposing with previous trigger signal or output image, trigger signal is disregard. Timing Trigger signal (Positive polarity) Expose Image out Note: The exposure time is “Exposure Time” on GenICam setting. STC-MBS163POE / STC-MCS163POE 35/71 Product Specifications and User’s Guide... -
Page 36: 10 Camera Functions
“User Set Save” CANNOT execute when “Default” was selected at “User Set Selector” User Set Selector Setting Procedure 1. Selects “User Set X” at “User Set Selector” 2. Execute “User Set Save” STC-MBS163POE / STC-MCS163POE 36/71 Product Specifications and User’s Guide... -
Page 37: Loading Camera Settings
Please follow the procedure in below for camera settings put back to factory default settings. Setting Procedure Selects “Default” at “User Set Selector”. Executes “User Set Load”. Select “User Set X” at “User Set Selector”. Executes “User Set Save”. STC-MBS163POE / STC-MCS163POE 37/71 Product Specifications and User’s Guide... -
Page 38: Frame Rate
Selects control gain Digital All: Digital Gain DigitalGain IFloat Type Digital Gain Range: 0 to 255 Default: 0 Digital Gain Formula Gain (x times) = 1 + (“Digital Gain” / 128) STC-MBS163POE / STC-MCS163POE 38/71 Product Specifications and User’s Guide... -
Page 39: Exposure Time
The lower limit of signal is clamped at this setting level. The signal does not lower than this. GenICam Parameters BlackLevel IFloat Type Black Level Range: 12bits output: 0 to 240 10bits output: 0 to 60 8bits output: 0 to 15 Default: 0 STC-MBS163POE / STC-MCS163POE 39/71 Product Specifications and User’s Guide... -
Page 40: Alc (Auto Light Control)
Default: 1 * Sets 10 on Region 4 only Sets the weight for each weight area. AutoLuminancePeak IInteger Type Importance ratio for the brightness peak at ALC control. Range: 0 to 255 Default: 0 STC-MBS163POE / STC-MCS163POE 40/71 Product Specifications and User’s Guide... -
Page 41: Alc Control Method
If AGC and auto shutter are ON for ALC control, auto shutter function maintains brightness first. The AGC function maintains brightness if brightness cannot maintain to “Auto Luminance Target” with auto shutter. STC-MBS163POE / STC-MCS163POE 41/71 Product Specifications and User’s Guide... -
Page 42: Agc (Auto Gain Contorl)
This cannot be set greater than “Gain Auto Limit Max” GainAutoLimitMax IFloat Type Maximum gain for AGC [GainSelector] Range: 0 to 208 Default: 208 This cannot be set smaller than “Gain Auto Limit Min” STC-MBS163POE / STC-MCS163POE 42/71 Product Specifications and User’s Guide... -
Page 43: Auto Shutter
4. Sets “Continuous” for “Exposure Auto” when using auto shutter function. 5. Sets “Exposure Auto Limit Min” and “Exposure Auto Limit Max” when using auto shutter function. 6. Sets “Auto Luminance Target”. STC-MBS163POE / STC-MCS163POE 43/71 Product Specifications and User’s Guide... -
Page 44: White Balance (Only Available For Color Camera)
Sets “OFF” at “Balance White Auto” automatically after sets “Balance Ratio” for all colors. Push to set white balance setting procedure 1. Sets the flat white target then acquires image. 2. Sets “Once” at “Balance White Auto”. STC-MBS163POE / STC-MCS163POE 44/71 Product Specifications and User’s Guide... - Page 45 2. Selects adjusting color from Red, Green or Blue at “Balance Ratio Selector”. 3. Sets gain for selected adjusting color at “Balance Ratio”. The settings can be save into camera with “User Set Control” function. STC-MBS163POE / STC-MCS163POE 45/71 Product Specifications and User’s Guide...
-
Page 46: White Balance Calculate Region Setting
Vertical offset (in line) for region 0 YOffset Range: 0 to 1,079 Default: 0 The white balance calculation region settings are like below: BalanceWhite AutoOffsetY White balance gain BalanceWhite calculation region 0 AutoHeight BalanceWhite BalanceWhite AutoOffsetX AutoWidth STC-MBS163POE / STC-MCS163POE 46/71 Product Specifications and User’s Guide... -
Page 47: Gamma Correction
OffsetY IInteger Type Vertical offset for output image (in line) Range: 0 to 1,076 Default: 0 Adjustable steps: 4 The ROI region settings are below: OffsetY Height ROI region OffsetX Width STC-MBS163POE / STC-MCS163POE 47/71 Product Specifications and User’s Guide... -
Page 48: Pixel Format
RGB8 Each format specified on GenICam PFNC (Pixel Format Naming Convention). 10.11 Binning (Only STC-MBS163POE) Binning is added adjacent pixels into one pixel. The pixel data inside of red square add or average as one pixel. Binning X (OFF), Y (OFF) -
Page 49: Decimation
(*1) Decimation cannot change horizontal only or vertical only. Selection applies for horizontal and vertical. (*2) It is necessary to change exposure time (to shorten exposure time), to increase frame rate when using Decimation. STC-MBS163POE / STC-MCS163POE 49/71 Product Specifications and User’s Guide... -
Page 50: Trigger
Software Signal 0 Software Signal 1 Sensor Logic Block 0 “ AND ” “ OR ” Trigger Source The trigger signal is selectable by GenICam commands. Trigger Source: select trigger type STC-MBS163POE / STC-MCS163POE 50/71 Product Specifications and User’s Guide... -
Page 51: Image Flip
Range: 0 to 4,095 LUT Value IInteger Type The output value for input value that specifies by index Range: 0 to 4,095 4095 4095 LUT Index e.g. LUT usage (low brightness level enhancement) STC-MBS163POE / STC-MCS163POE 51/71 Product Specifications and User’s Guide... -
Page 52: Defective Pixel Correction
Horizontal position for selected index for process defective pixel correction Range: 0 to 1,439 Default: 0 PixelCorrectionY IInteger Type Vertical position for selected index for process defective pixel correction Range: 0 to 1,079 Default: 0 STC-MBS163POE / STC-MCS163POE 52/71 Product Specifications and User’s Guide... -
Page 53: Counter And Timer Control
IEnumeration Type Polarity of reference signal to reset counter Activation CounterReset ICommand Type Rest switch “Activate as switch when selecting “Software” at “Counter Reset Source” CounterValue IInteger Type Returns number of counter STC-MBS163POE / STC-MCS163POE 53/71 Product Specifications and User’s Guide... -
Page 54: E.g. Event Control
“Line 0 Input Rising Edge”, “Line 0 Input Falling Edge”, “Line 2 Input Rising Edge” and “Line 2 Input Falling Edge” Event Notification IEnumeration Type Event notification ON / OFF selection On: Enable event notification Off: Disable event notification STC-MBS163POE / STC-MCS163POE 54/71 Product Specifications and User’s Guide... -
Page 55: Chunk Control
IInteger Type Select camera to apply action command Logical AND of Group Mask of camera and Group Mask of action command is 1 for any bit of 32bits, camera executes action command. STC-MBS163POE / STC-MCS163POE 55/71 Product Specifications and User’s Guide... -
Page 56: Ieee1588
Defined delay between master device and slave device by comparing these messages. If time difference between master device and slave device is occurred, adjust internal clock of slave device to synchronize to master device. Synchronize clock regularly to correcting time drift. STC-MBS163POE / STC-MCS163POE 56/71 Product Specifications and User’s Guide... - Page 57 Timestamp, action command will be scheduled automatically and each camera start exposing at same time. Action Control setting is required when action command generating. IEEE1588 PTP supported Switching HUB M: Master S: Slave e.g. PTP configuration STC-MBS163POE / STC-MCS163POE 57/71 Product Specifications and User’s Guide...
-
Page 58: 11 Genicam Command
Sub minor version of the Transport Layer of the device. DeviceMaxThroughput Maximum bandwidth of the data that can be streamed out of the device. DeviceLinkSelector Selects which Link of the device to control. STC-MBS163POE / STC-MCS163POE 58/71 Product Specifications and User’s Guide... - Page 59 Latches the current timestamp counter into Timestamp Latch Value. TimestampLatchValue Returns the latched value of the timestamp counter. DeviceUserMemory Read / Write the user data from / to the non-volatile memory. STC-MBS163POE / STC-MCS163POE 59/71 Product Specifications and User’s Guide...
-
Page 60: Imageformatcontrol
Maximum width of the image (in pixels). HeightMax Maximum height of the image (in pixels). BinningSelector Selects which binning engine is controlled by the Binning Horizontal and Binning Vertical features. (STC-MBS163POE) BinningHorizontal [BinningSelector] Number of horizontal photo-sensitive cells to combine together. (STC-MBS163POE) BinningVertical [BinningSelector] Number of vertical photo-sensitive cells to combine together. -
Page 61: Acquisitioncontrol
Sets the automatic exposure mode when Exposure Mode is Timed. ExposureAutoLimitMin Determine the lower limit of exposure time when Exposure Auto is set to Continuous. ExposureAutoLimitMax Determine the upper limit of exposure time when Exposure Auto is set to Continuous. STC-MBS163POE / STC-MCS163POE 61/71 Product Specifications and User’s Guide... -
Page 62: Analogcontrol
Determine X offset of targeted region for auto white balance. [BalanceWhiteAutoRegionSelector] (STC-MCS163POE) BalanceWhiteAutoOffsetY Determine Y offset of targeted region for auto white balance. [BalanceWhiteAutoRegionSelector] (STC-MCS163POE) Gamma Controls the gamma correction of pixel intensity. STC-MBS163POE / STC-MCS163POE 62/71 Product Specifications and User’s Guide... -
Page 63: Lutcontrol
UseOutputSelector Selects which bit of the User Output register will be set by User Output Value. UseOutputValue [UseOutputSelector] Sets the value of the bit selected by User Output Selector. STC-MBS163POE / STC-MCS163POE 63/71 Product Specifications and User’s Guide... -
Page 64: Logicblockcontrol
Selects the source of the trigger to start the Timer. TimerTriggerActivation [TimerSelector] Selects the activation mode of the trigger to start the Timer. TimerValue [TimerSelector] Reads or writes the current value (in microseconds) of the selected Timer. STC-MBS163POE / STC-MCS163POE 64/71 Product Specifications and User’s Guide... -
Page 65: Eventcontrol
Save the User Set specified by User Set Selector to the non-volatile memory of the device. UserSetDefault Selects the feature User Set to load and make active by default when the device is reset. STC-MBS163POE / STC-MCS163POE 65/71 Product Specifications and User’s Guide... -
Page 66: Chunkdatacontrol
Provides the mask that the device will use to validate the action on reception of the action protocol message. ActionGroupKey [ActionSelector] Provides the key that the device will use to validate the action on reception of the action protocol message. STC-MBS163POE / STC-MCS163POE 66/71 Product Specifications and User’s Guide... -
Page 67: Fileaccesscontrol
Represents the file operation result. [FileSelector] [FileOperationSelector] FileSize [FileSelector] Represents the size of the selected file in bytes. 11.15 Test Control Name Description TestPendingAck Tests the device's pending acknowledge feature. TestEventGenerate Generates a Test Event. STC-MBS163POE / STC-MCS163POE 67/71 Product Specifications and User’s Guide... -
Page 68: Transportlayercontrol
Controls the Persistent subnet mask associated with the Persistent IP [GevInterfaceSelector] address on this logical link. GevPersistentDefaultGateway Controls the persistent default gateway for this logical link. [GevInterfaceSelector] GevGVCPExtendedStatusCodesSelector Selects the GigE Vision version to control extended status codes for. STC-MBS163POE / STC-MCS163POE 68/71 Product Specifications and User’s Guide... - Page 69 GVSP transmitter must send data stream or the destination IP address from which a GVSP receiver may receive data stream. GevSCSP [Gev StreamChannelSelector] Indicates the source port of the stream channel. STC-MBS163POE / STC-MCS163POE 69/71 Product Specifications and User’s Guide...
-
Page 70: 12 Revision History
Added “LWIP TCP/IP Licensing” information GigE Vision is trademark of AIA. GenICam is trademark of EMVA. Other company names and product names in this document are trademarks of their respective owners. STC-MBS163POE / STC-MCS163POE 70/71 Product Specifications and User’s Guide... - Page 71 No.18S109-02 19F, Ebina Prime Tower 9-50, Chuo 2 chome Ebina-city, Kanagawa 243-0432 Japan TEL 81-46-236-6660 FAX 81-46-236-6661 URL http://www.sentech.co.jp/ STC-MBS163POE / STC-MCS163POE 71/71 Product Specifications and User’s Guide...
