Summary of Contents for Kool Karz Playground KKLB-020

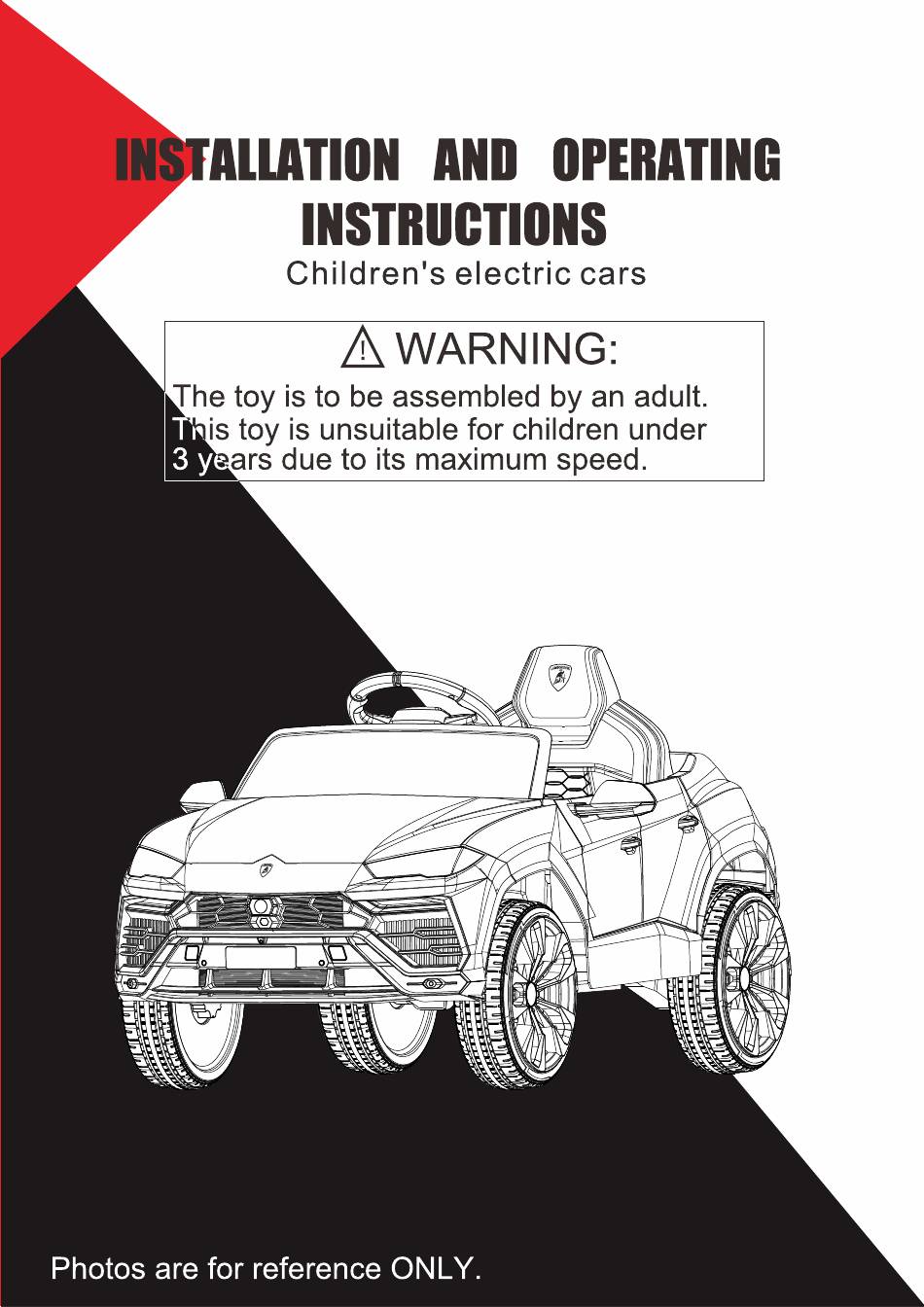

  • Page 1 KKLB-020...
  • Page 2: Installation Instruction

    INSTALLATION INSTRUCTION The illustrations in this instruction are used for easier understanding of the operation method of the product and the product structure. Please note there may be differences between the pictures and the physical item. In order to improve the quality, we may change part of the structure and appearance of the product without an advance notice.
  • Page 3 water (swimming pools) or other bodies of water, sloped surfaces, hills, wet areas, flammable vapors, in alleys, at night or in the dark could result in an unexpected accident. Always use the vehicle in a safe, secure environment with continuous adult supervision.
  • Page 4 immediately give the person water or milk. Do not give water or milk if the patient is vomiting or has a decreased level of alertness. Do not induce vomiting. • Battery posts, terminals and related accessories contain lead and lead compounds (acid), chemicals known to the State of California to cause cancer, reproductive harm and are toxic and corrosive.
  • Page 5 Park the vehicle indoors or cover it with a tarp to protect it from wet weather. Do not leave the vehicle in the sun for long periods of time or fading may occur. Store in shade or cover with tarp. Do not wash the vehicle with a hose.
  • Page 6: Specification

    Specification specification Name 12V 4.5AH( 6- FM- 4.5 ( AH ) * 1 Battery Motor: DC 12V Motor Steering motor: DC 12V Suitableage 37-96 months Max weight 28KG Body size 1050*650*520MM 2-4KM/h Speed Hoursofuse charging 8-12 hours,using 1 hours Input:110V~240V AC Output: DC 12V500MA/ Charger Mainmaterial...
  • Page 7 1 set D(Wheel connecter) C(rear view mirror) H(Wheel Cover) G(Wheel) Q (motor R) I(seat) X (self-tapping screw) Y (motor L) L(M8 spanner) T(Charger)
  • Page 8 ④ ② ② ① ④ ④ ① ③ ③ ③ ③ Step 1: Loosen the screw, gasket from real axle Use the L (M8 spanner) to loosen the② (M8 nut) ①(M8 gasket) and ④ (Circular paper tube) from the ③ (real axle) in a counterclockwise direction.
  • Page 9 ③ ③ ③ ③ ① ① ② ② Step 3: Loosen the screw,gasket from front axle Use the L (M8 spanner) to loosen the ②(M8 nut) ① (M8 gasket) from the③ (front axle) in a counterclockwise direction. ② ① ② ①...
  • Page 10 Step 4: Install the wheel 1. Install the G (wheel) onto the ③ (real axle), put the ① (M8 gasket) , then use the L (M8 spanner) to ghten the ②(M8 nut) in clockwise direc on. Finally install the H (wheel cover) on correct posi on (align and press the buckle of the wheel cap with the grooves of the wheel to fix it) 2.
  • Page 11 Step 7: connect the power First connect the terminal 1 and 2 . then connect the power port 3 and 4 . Step 8: Install the seat Put the I (seat) onto the right place, fix the two hooks (at the back of the seat) into the ①...
  • Page 12 LED Indicator...
  • Page 13 The remote control operation alaways prior to the manual control operation .(The manual control won't work while operating remote control) 1. Turn off the Power Switch on the car. 2. Remove the battery cover on the Remote Control and put in 2 AAA battery, the three LED indicators will flash.
  • Page 14 5-1. Instruction for MP3 multifunction player (Configuration A) ◀◀ ▶ ◀ ◀ ▎ ▎ ▎ ▎ A. Voltage display screen: The value on the display be used to determine whether the battery needs to be charged. B. Adaptor port: Insert flash driver will play the music inside. Only MP3 mode is supported.
  • Page 15 high/low high/low * ONLY one speed for reverse, the high/low switch can not control the reverse speed. Resettable fuse: when the current exceeds a certain rating, the recoverable fuse will automatically cut off the power supply for 5- 10seconds, then the current will be resupplied.
  • Page 16 When battery power is low, please charge it immediately. The charging port is under the seat. (Note: toys can not be operated in the charging state. Toys should be recharged by adult) .
  • Page 17 Trouble elimination methods 1.Yes, the fuse cuts off the power 1. Is the fuse overloaded? (under automatically by 5-20 seconds, then the seat) restart; No, check next reason analysis The motor 2. The pedal switch connector is 2.No, repair foot switch ; Yes, check next good? does not reason analysis...
