Instruction Manual
KKMB-008

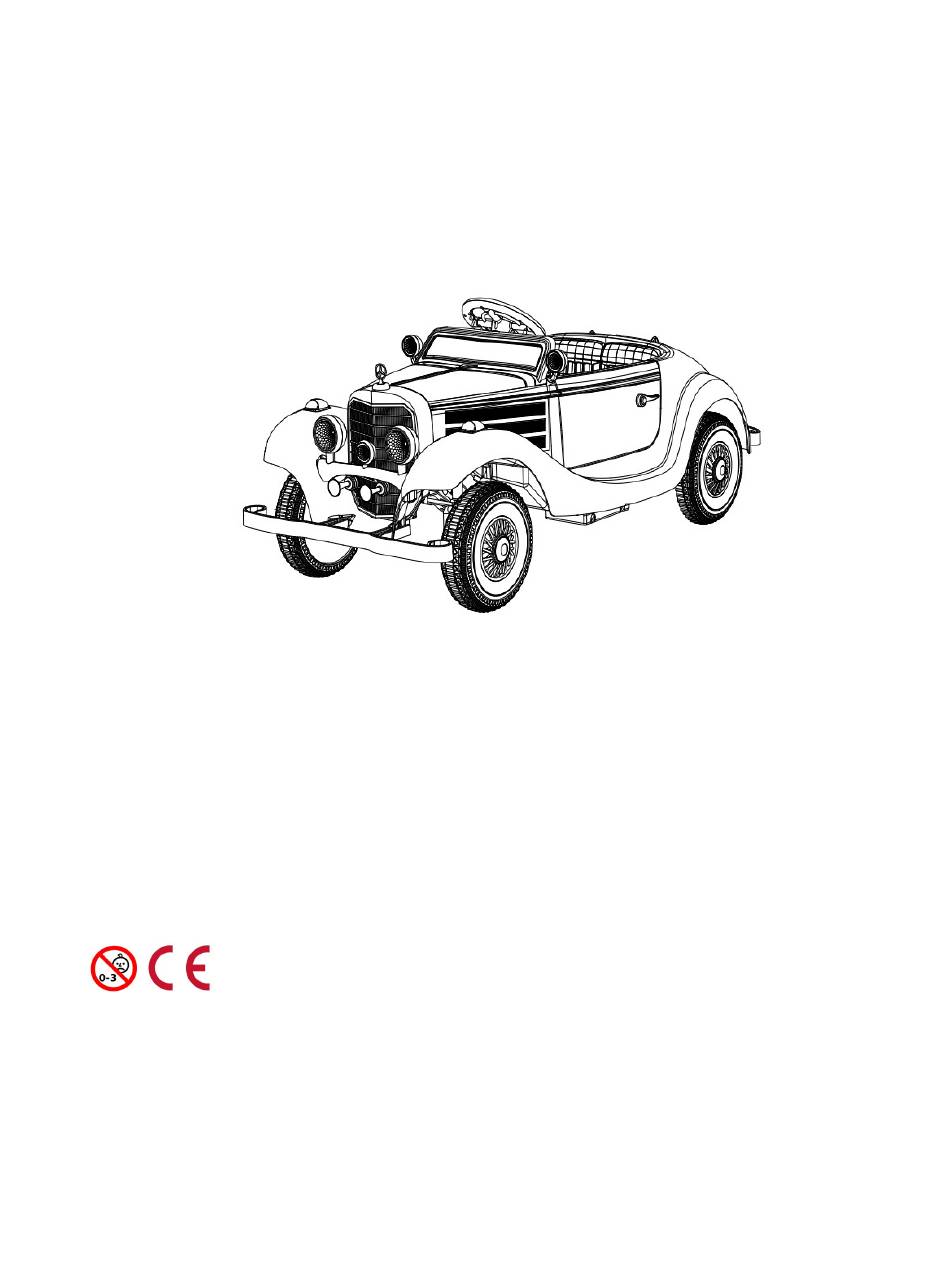

Mercedes Benz Type 540K
Official Licensed Product
Picture for reference only.
Please refer to real object.
◆ Please read the manual carefully before assembling;
◆ Keep the manual safely for future reference;
◆The manual is for assembling and reference only. Details may possibly be improved and updated,
including structure, appearance, packing, functions, and etc. Please refer to the real object as
standard if there is something different from the manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KKMB-008 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kool Karz Playground KKMB-008

Summary of Contents for Kool Karz Playground KKMB-008

  • Page 1 Instruction Manual KKMB-008 Mercedes Benz Type 540K Official Licensed Product Picture for reference only. Please refer to real object. ◆ Please read the manual carefully before assembling; ◆ Keep the manual safely for future reference; ◆The manual is for assembling and reference only. Details may possibly be improved and updated, including structure, appearance, packing, functions, and etc.

  • Page 2: Before Assembling

    1. Before Assembling Warning! Choking Hazard: Small parts, Not for children under 3 years. Dispose of plastic bags carefully. Adult assembly required. Use care when unpacking as components to be assembled may pose small parts/sharp edge hazard. Check if charger is in good condition, including the wire, socket, and all details.

  • Page 3: Exploded View And Parts List

    3. Exploded View and Parts List. Parts Name Part Name Body Plastic wrench Steering Wheel Decoration spare tire Front decoration light(L/R) Screw kit Motor Assembly Manual Windshield Front bumper Front wheel Rear bumper(L/R) Rear wheel(driving) Charger Wheel cover Remote control Note: some parts need to be attached from 2 sides.
  • Page 4 4. Front/rear wheel assembly. 前知 A. Front wheels: As the picture shows, place the washer on the axle and then wheels, washer, one by one, then secure the wheel using the M10 lock-nut, fix the wheel cover onto the wheels accordingly and lock it onto the wheel using plastic clips.
  • Page 5 5. Front and rear bumper assembly. 前知 A. Insert the front bumper to the front part of the car accordingly, then tighten it with 4X14 screws; B. Insert the rear bumpers(left & right) to the rear part of the car body accordingly, then tighten with 4X14 screws;...
  • Page 6 6. Hood opening, and battery cable connecting. A. As the picture shows, press the hood button, and move it toward front side of the car, the hood will then open. The button will be moved back when closing the hood. B.
  • Page 7 7. Steering wheel/windshield/decoration light and spare tire. A. Connect the wire of the steering wheel with the wire from the steering column, then insert the steer wheel onto the steering rod directly; B. As the picture shows, put the windshield and front decoration light onto right position and press it until it is locked by the clips.

  • Page 8: Function Diagram

    8. Function Diagram 1、 Multifunctional control board; 2、 Power switch; 3、 High/Low speed switch; 4、 Mode button: kid mode/parent-kid mode; 5、 Forward /reverse switch; 7、Pedal accelerator switch: pedal to move, release it to stop the car gradually. 8、Steering wheel accelerating button switch(useful only in parent-kid mode) 9、Car horn;...
  • Page 9 9. Functions of Remote: Not e ： Use screwdriver to remove screw and open battery cover，install 2 pc AAA 1.5V battery, and attach cover with screws. The car has remote priority function: while it is controlled by the remote, the pedal switch does not work; Disconnect the remote, the pedal switch will then work.
  • Page 10 10. Warnings & Safety Alert: Warning!  Choking Hazard: Small parts, Not for children under 3 years.  Dispose of plastic bags carefully. These can be dangerous to kids.  Adult assembly required. Use care when unpacking as components to be assembled may pose small parts/sharp edge hazard. Check if the charger is in good state, including the wire, socket, and ...
  • Page 11 11. Special Notes before Charging: Charging must be done by adult. Children are prohibited to touch charger and battery. Warning! 1. Only appointed battery and charger brand are allowed to use to the car. 2. Don’t use the car’s battery or charger to other products. 3.

  • Page 12: Fuse Maintenance

    13. Fuse Maintenance: Inspect the charger carefully regularly to check if everything is OK. If there is somewhere with any problem, stop using until repaired. The car has a self reset fuse. When it’s over loaded or used improperly, the fuse will power off Fuse: the car for 15-20 seconds，and then reset it.

  • Page 13: Troubleshooting

    14. Trouble Shooting Inspections Solutions Troubles Motor not 1. Check if fuse disconnected？ Yes, restart the car； rotating No, check the next； 2. Check if pedal switch in poor contact. Yes，repair the contact. No, check the next； 3. Check if motor terminal connected. No, connect it.
  • Page 14 the battery to other parts of the car. No, reconnect them. Wheels no 1. Check if the driver is over 100 KG. Yes, normal; No, get to next. turning 2. Check if road is not flat. Yes, normal, the car moves normal on flat road.
  • Page 15 DISPOSAL OF BATTERIES: CONTAINS SEALED LEAD ACID BATTERY. BATTERY MUST BE RECYCLED. Dispose old batteries at an approved battery dumping station; Contact your local environmental protection agency office for additional information. Adult assembly required. Use care when unpacking as components to be assembled may pose small parts/sharp edge hazard.
