REER SpA
via Carcano 32
10153 – Torino
Italy
dichiara che le barriere fotoelettriche JANUS TRX / M TRX sono Dispositivi Elettrosensibili di
Sicurezza (ESPE) di :
Tipo 4 (secondo la Norma CEI EN 61496-1:2005; CEI EN 61496-2:2007)
SIL 3 (secondo la Norma CEI EN 61508:2002)
SILCL 3 (secondo la Norma CEI EN 62061:2005 + CEI EN 62061/EC2:2008)
PL e (secondo la Norma UNI EN ISO 13849-1:2008)
declares that the JANUS TRX / M TRX photoelectric safety barriers are :
Type 4 (according the Standard IEC 61496-1:2004; IEC 61496-2:2006)
SIL 3 (according the Standard IEC 61508:1998)
SILCL 3 (according the Standard IEC 62061:2005)
PL e (according the Standard ISO 13849-1:2006)
Electro-sensitive Protective Equipments (ESPE)
realizzati in conformità alle seguenti Direttive Europee:
complying with the following European Directives:
2006/42/CE "Direttiva Macchine"
"Machine Directive"
2004/108/CE "Direttiva Compatibilità Elettromagnetica"
2006/95/CE "Direttiva Bassa Tensione"
"Low Voltage Directive"
e sono identiche all'esemplare esaminato ed approvato con esame di tipo CE da:
and are identical to the specimen examined and approved with a CE - type approval by:
TÜV SÜD Rail GmbH – Ridlerstrasse 65 – D-80339 – Muenchen – Germany
Carlo Pautasso
Direttore Tecnico
Technical Director
Dichiarazione CE di conformità
EC declaration of conformity
"Electromagnetic Compatibility Directive"
Torino, 1/1/2010
Giancarlo Scaravelli
Presidente
President

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JANUS TRX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Reer JANUS TRX

Summary of Contents for Reer JANUS TRX

  • Page 1 Carcano 32 10153 – Torino Italy dichiara che le barriere fotoelettriche JANUS TRX / M TRX sono Dispositivi Elettrosensibili di Sicurezza (ESPE) di : Tipo 4 (secondo la Norma CEI EN 61496-1:2005; CEI EN 61496-2:2007) SIL 3 (secondo la Norma CEI EN 61508:2002)

  • Page 2: Table Of Contents

    PHOTOELECTRIC SAFETY BARRIER JANUS TRX INSTALLATION USE AND MAINTENANCE INDICE INTRODUCTION ........................2 PRINCIPLE OF OPERATION....................3 INSTALLATION ........................4 POSITION ............................. 5 MULTIPLE SYSTEMS ........................5 SAFETY DISTANCE CALCULATION................... 6 VERTICAL POSITION OF THE BARRIER ................... 7 ELECTRICAL CONNECTIONS ....................7 EXTERNAL CONNECTION ......................

  • Page 3: Introduction

    Its non-observance can cause a very serious risk for the exposed personnel. INTRODUCTION The JANUS TRX photoelectric barrier is a double-beam optoelectronic safety system. It belongs to the family of Type 4 electrosensitive devices for the protection of personnel exposed to risks arising from the use of hazardous machinery or plant, according to standards IEC 61496-1,2 and EN 61496-1.

  • Page 4: Principle Of Operation

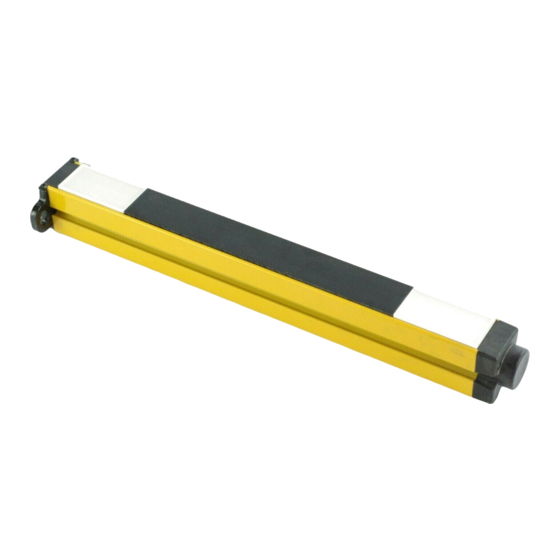

    PRINCIPLE OF OPERATION Figure 1 shows the JANUS TRX way of operation : active element J TRX E/R contains emitter receiver units; the emitted infrared beam, correctly reflected by the two pre-aligned deflection mirrors of the passive element J TRX RR, is received by the receiver of the J TRX E/R.

  • Page 5: Installation

    INSTALLATION Before installing the JANUS TRX safety system, make sure that: The safety system is only used as a stopping device and not as a machine control device. The machine control can be actuated electrically. All dangerous machine movements can be interrupted immediately. In particular, the machine stopping times must be known and, if necessary, measured.

  • Page 6: Position

    (REER labels in the same side) Figure 2 MULTIPLE SYSTEMS JANUS TRX is composed of one active and one reflecting element; when more than one JANUS TRX system is used, precaution must be taken to avoid optical interference between them.

  • Page 7: Safety Distance Calculation

    SAFETY DISTANCE CALCULATION The barrier must be installed at a distance that is greater than or equal to the minimum safety distance S, so that a dangerous point can only be reached after all hazardous machine movements have stopped (Figure 3). According to European standard EN999, the minimum safety distance S must be calculated using the following formula: S = K (t...

  • Page 8: Vertical Position Of The Barrier

    Before making the electrical connections, make sure that the supply voltage complies with the one specified in the technical data sheet. Janus TRX must be supplied with 24V ±20% power supply. The external power supply must comply with the standard EN 60204-1.

  • Page 9: External Connection

    Connector pins. Figure 5 EXTERNAL CONNECTION COLOR NAME TYPE DESCRIPTION OPERATION Brown 24VDC 24VDC power supply Blue 0VDC 0VDC Ground connection White OSSD1 OUTPUT Safety static outputs PNP active high OSSD2 OUTPUT Green Grey EXT_SEL_A INPUT Barrier According the normative configuration EXT_SEL_B INPUT...

  • Page 10: Distance Between Reflecting Surfaces

    DISTANCE BETWEEN REFLECTING SURFACES The presence of reflecting surfaces in proximity of the photoelectric barrier may generate spurious reflections that prevent monitoring. With reference to Figure 6, object A is not detected because surface S reflects the beam and closes the optical path between the active and passive elements.
  • Page 11 Figure 7 After installing the system, check whether any reflecting surfaces intercept the beams, first in the centre and then in the vicinity of the active unit. During these operations, the red LED on the active elements should never, for any reason, switch off.

  • Page 12: Mounting And Optical Alignment

    MOUNTING AND OPTICAL ALIGNMENT The active element J TRX E/R and the the passive element J TRX RR must be mounted the first in front of the other with the same (or less) distance showed in the technical data. Using the fastening brackets and inserts (available on request) fix the active element J TRX E/R and the passive element J TRX RR aligned and parallel.

  • Page 13: Operation And Technical Data

    OPERATION AND TECHNICAL DATA SIGNALS The symbols showed on the 7 segments display of the active elements, The symbols showed on the 7 segments display and the leds of the active elements are visualized depending on the system operation phase. The tables below shows the different signals (ref.

  • Page 14: Configuration And Operation Modes

    CONFIGURATION AND OPERATION MODES The JANUS TRX operation mode is selected realizing appropriate connections on the M12 8 poles of the active element (Table 1 and Table 2). AUTOMATICO MODE In this operation mode the OSSD1 and OSSD2 safety outputs follow the barrier status : •...
  • Page 15 Figure 11 Example of connection of TRX barrier in AUTOMATIC mode without feedback K1K2 MANUAL MODE In this operating mode the safety outputs OSSD1 and OSSD2 are activated (+24VDC) only if the protected area is free and after the reception of the RESTART signal, using a push button or thank to an appropriate control on the SEL_A or SEL_B input (ref.Table 3).
  • Page 16 Figure 12 Example of connection of TRX barrier in MANUAL mode with feedback K1K2 Figure 13 Example of connection of TRX barrier in MANUAL mode without feedback K1K2 • • 8540568 23/12/2009 Rev.3...

  • Page 17: K1/K2 External Contactors Connection

    (+24VDC) through the series of N.C. contacts (feedback) of external contactors. OUTPUT STATUS Janus TRX features two static PNP outputs on the active element, the status of which depends on the condition of the protected area. The maximum load allowed is 500mA at 24VDC, which corresponds to a resistive load of 48Ω.

  • Page 18: Technical Specifications

    TECHNICAL SPECIFICATIONS GENERAL DATA Safety category ≤ 7 Response time 0 ÷ 6 Working range Reset automatic or manual selectable 24 ± 20% Power supply Connections M12 – 8 poles (male) Protection rating IP 65 Max. length of electrical connections Dimensions light 50 x 60 curtain section...

  • Page 19: Dimensions

    Verify that moving the test object close to the two beams, the red led (Figure 9) lights on. The JANUS TRX barrier does not require any specific maintenance operations; however, periodic cleaning of the front protective surfaces of the active and passive unit optics is recommended.

  • Page 20: Troubleshooting

    In any case, when faced with a system stoppage, switch the system off and then on again, to exclude any occasional electromagnetic disturbances. Should the problem persist, contact REER’s service department. In case of continued malfunctioning: •...
  • Page 21 REER's Assistance Service. If correct system operation cannot be restored after carrying out the above procedures, send the equipment to REER’s laboratories, complete with all parts, stating clearly: • the product code number (the P/N field is shown on the product label) •...

  • Page 22: Spare Parts

    SPARE PARTS CONNECTORS C8D5 Straight 8-pin M12 female connector, 5 m cable 1330980 C8D10 Straight 8-pin M12 female connector, 10 m cable 1330981 C8D15 Straight 8-pin M12 female connector, 15 m cable 1330982 C8D95 90° 8-pin M12 female connector, 5 m cable 1330983 C8D910 90°...

  • Page 23: Guarantee

    GUARANTEE All new JANUS TRX systems are guaranteed by REER for a period of 12 (twelve) months under normal working conditions, against defects due to faulty materials and workmanship. During the aforesaid period, REER promises to replace faulty parts free of charge. This guarantee covers both material and labour.
