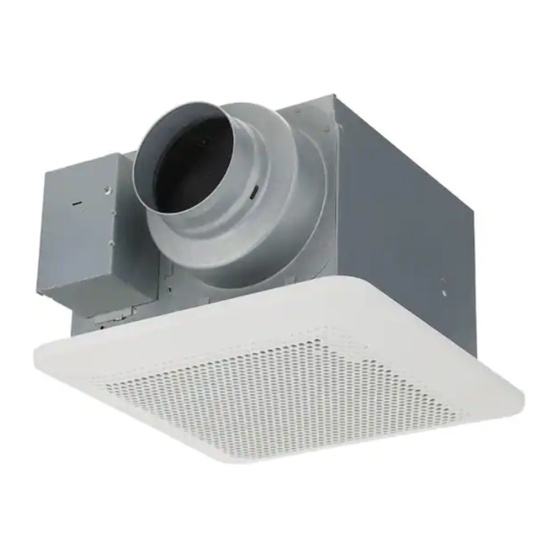

Service Manual Ventilating Fan (North AmericaMarket) RG-C811A WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Fan body Junction box White Neutral Main control circuit AC120V 60Hz Live (Fan) Black (Power supply) Main control Motor circuit Green (Ground wire) WHITE Conduit BLACK GREEN Junction Wire nuts Ground wire Switch box Neutral 120 VAC LINE IN Ground wire Live...
4. Parts List RG-C811A Main Body Section Part No. Part Name Q'ty Remark FFVC811LH900 Frame Assembly FFV11VQC1910 Adapter Assembly FFV08VKS3M915 Connector Plate FFV11QCL1331 Ground Wire FFV11QCL1301A Connector Assy FFV11QCL1912A Junction Cover FFV11QCL1M21AX Motor FFV11QCL1904C Motor Support FFV0400114S Blade 10 FFV7020021S...
