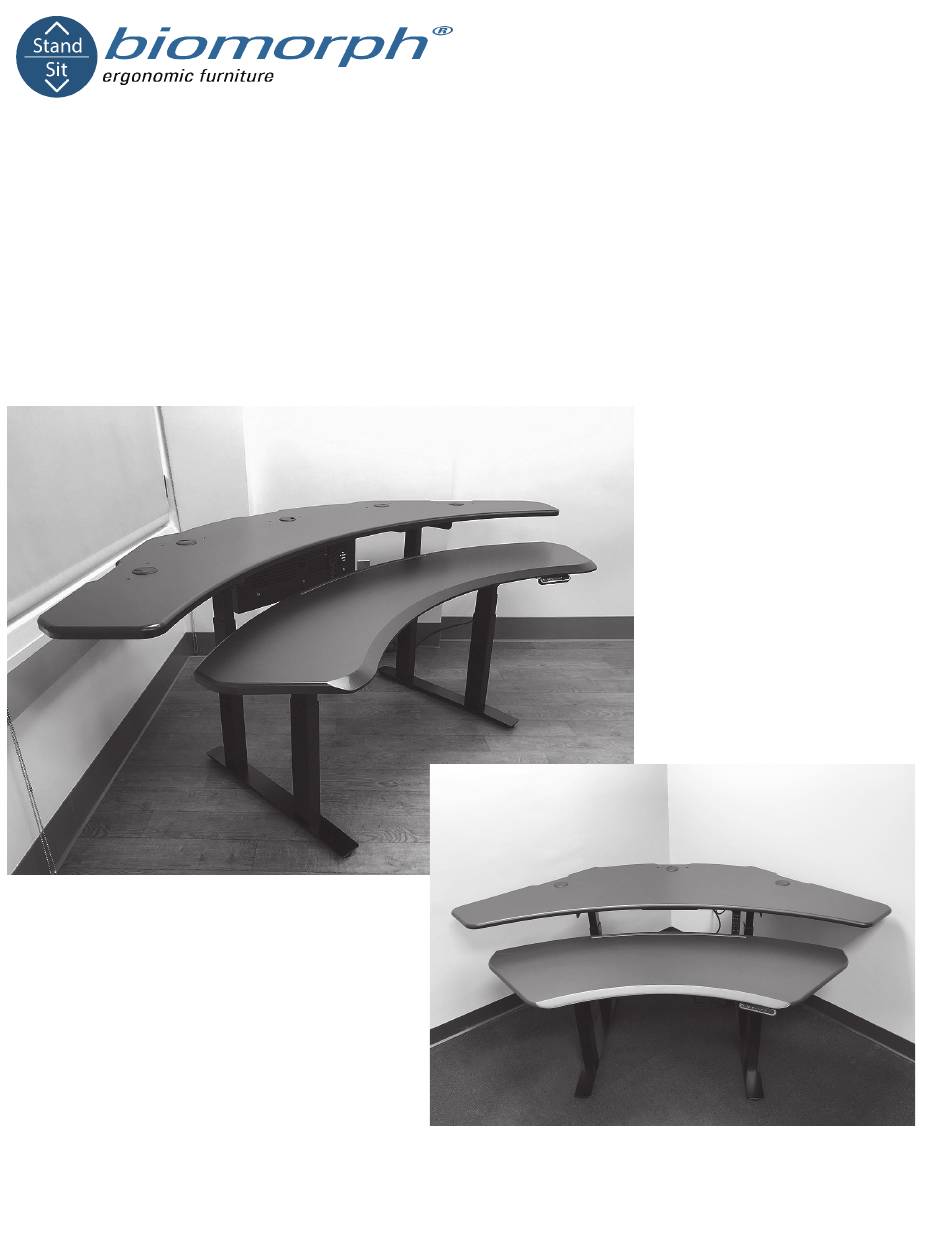

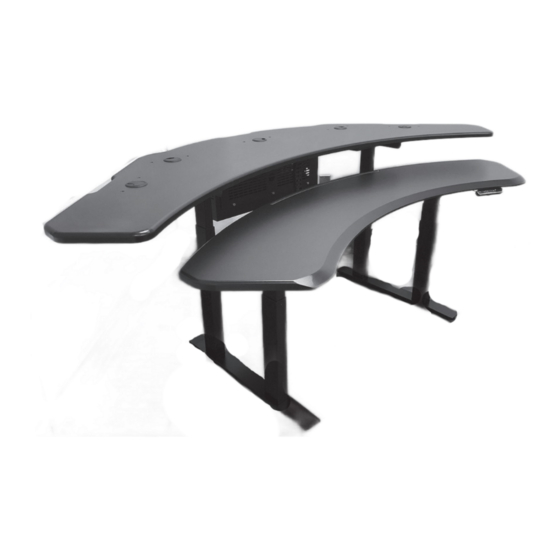

- Page 1 Pro Plus + Personal Plus Ground Support Equipment (US) ltd., DBA Biomorph, 11 Broadway, New York, NY 10004. Tel and Fax 888 302 3375 info@biomorphdesk.com www.biomorph.com Copywright S.Barlow-Lawson 2022...
-
Page 2: Table Of Contents
“Questions? Please call 917.328.8955 for support. IMPORTANT: Any issues at site must be reported to Biomorph immediately at 917 .328.8955, by text or phone and wait on site for response. Also, photos of completed desk(s) must be sent to 917 .328.8955 or vendors@biomorphdesk.com and wait ON SITE for approval. This will avoid potential revisits. Thank you. - Page 3 Assembly Overview Assembly Overview IMPORTANT: DO NOT BUILD THIS TABLE UPSIDE DOWN. FRAME MUST BE BUILT RIGHT SIDE UP , IN PLACE, AND TOPS THEN ATTACHED. If this procedure is not followed then tops will not line up with frame. DO NOT REMOVE PROTECTIVE MATERIAL FROM TOPS UNTIL FINAL ASSEMBLY.
-
Page 4: Qty. 16
Leg Assembly Pro Plus + Personal Plus M6 x 12 Screw Qty. 16 M6 x 12 Screw Qty. 16 Note: Longer end of Foot must face toward Glide front (user) side. Qty. 4... -
Page 5: Qty. 4
Installing Leg-Mounted CPU Holder (optional) Place Leg (A) being installed in Step 3 into Shroud (e). Proceed to Step 4. Align CPU Holder with Shroud Slide CPU Support upward. Tighten screws using Allen and secure using four (4) M6 x Wrench. -
Page 6: Qty. 8
Crossbar Assembly Pro Plus + Personal Plus LH Side RH Side Use these holes. Use these holes. M6 x 12 Screw Qty. 8 LH Side RH Side Use these holes. Use these holes. -
Page 7: Qty. 8
Crossbar Assembly (continued) Pro Plus LH Side RH Side Use these holes. Use these holes. M6 Flange Head Nut Qty. 8 M6 x 12 Screw Qty. 8... -
Page 8: Qty. 8
Crossbar Assembly (continued) Personal Plus LH Side RH Side Use these holes. Use these holes. M6 Flange Head Nut Qty. 8 M6 x 12 Screw Qty. 8... -
Page 9: Qty. 62
Top Assembly Pro Plus + Personal Plus Note: Pro Plus assembly shown below. Personal plus assembles in the same manner. 5 x 25mm Wood Screw Qty. 62... - Page 10 Electrical Components Pro Plus + Personal Plus Note: Pro Plus assembly shown below. Personal plus assembles in the same manner. 45˚ Digital Readout 16mm PH Switch and 45˚ Wood Screw Switch Bracket Qty. 2 Qty 1 45mm PH 4 Port Control Box...
- Page 11 Cable Management Pro Plus + Personal Plus Note: Pro Plus assembly shown below. Personal plus assembles in the same manner. Cable Chains 16mm PH Qty 1 Wood Screws Qty 6 Cable Cab 16mm PH Qty 1 Wood Screws Qty 6...
- Page 12 Cable Diagram Pro Plus IMPORTANT: All cables must be tacked up and made neat with supplied cable guides. NO cables may hang down ex- cept those passing through cable chains. Make sure cables have enough slack between surfaces to allow full height adjustment between surfaces.
- Page 13 Cable Diagram Personal Plus IMPORTANT: All cables must be tacked up and made neat with supplied cable guides. NO cables may hang down ex- cept those passing through cable chains. Make sure cables have enough slack between surfaces to allow full height adjustment between surfaces.
- Page 14 Questions? Call 888 302 3375 Operating your Biomorph Desk DPF1C control switch for Level Series, and Flexo DPF4T control switch for Plus Series Dual Drive Desks Series desks. DPF1C DPF4T May or may not have digital dispplay Toggle between surfaces Setting Initial Height.
- Page 15 Troubleshooting Guide QUESTIONS? PLEASE CALL TECH SUPPORT AT 917 328 8955 when you are in front of the For Biomorph Flexo, Level, and Plus Series Desks desk for real-time diagnosis. Flexo Series Level Series Plus Series Check for obstructions above, below and around the desk that may impede movement through the desk’s full...
