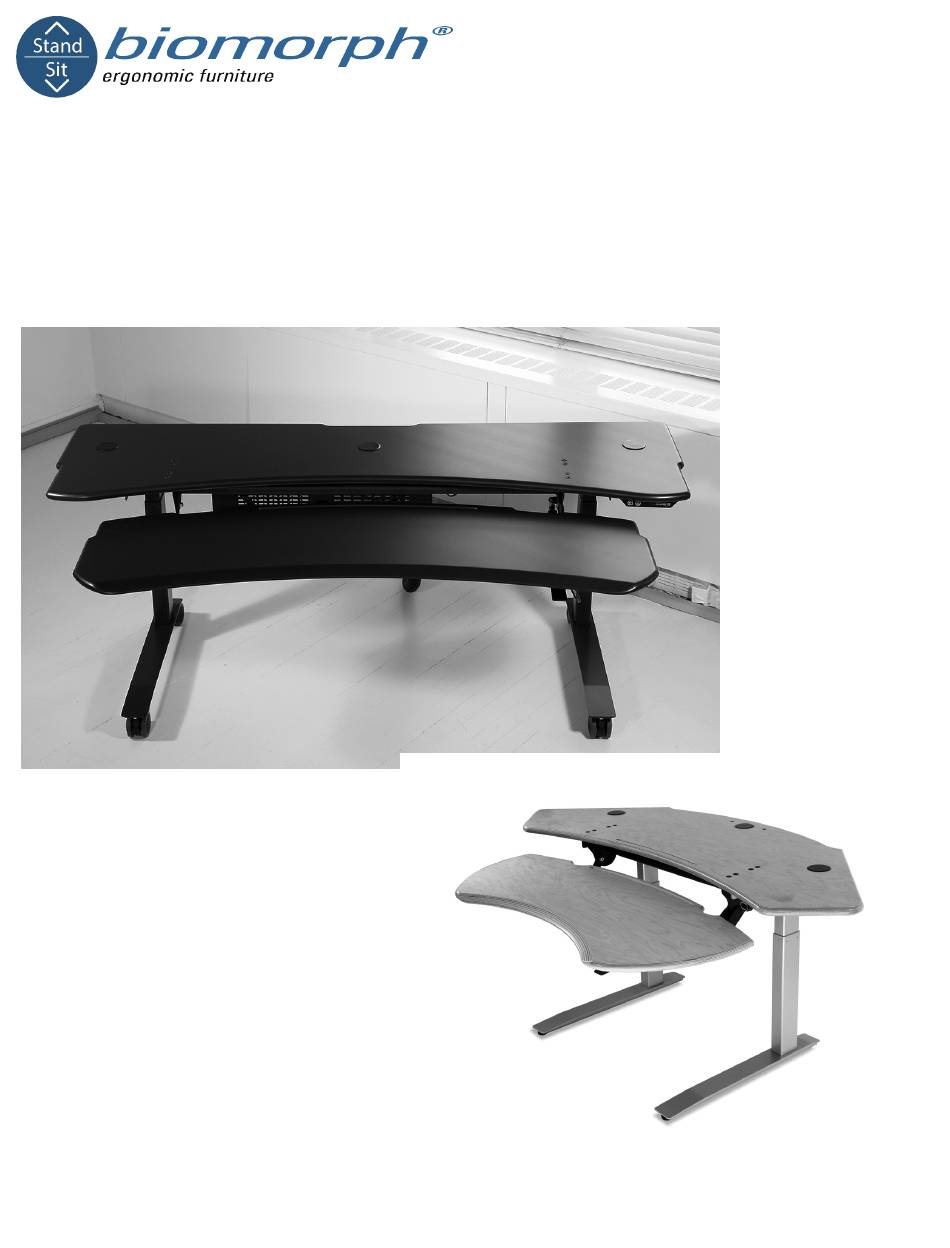

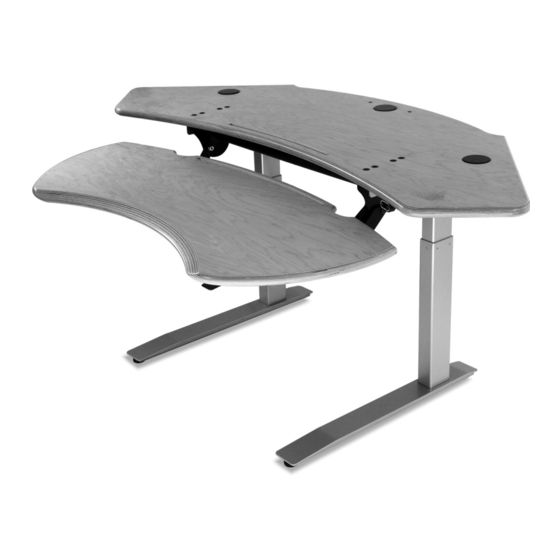

- Page 1 SX2M-A-LL-S-DS SX2M-A-LL-B-DS Flexo Level3 Desk & Flexo Corner Assembly Biomorph Inc., 1045 33rd Street South, St Cloud, MN 56301 Tel and Fax 888 302 3375 info@biomorphdesk.com www.biomorph.com...
- Page 2 “Questions? Please call 917.328.8955 for support. IMPORTANT: Any issues at site must be reported to Biomorph immediately at 917 .328.8955, by text or phone and wait on site for response. Also, photos of completed desk(s) must be sent to 917 .328.8955 or vendors@biomorphdesk.com and wait ON SITE for approval. This will avoid potential revisits. Thank you.
-
Page 3: Assembly Overview
Assembly Overview Assembly Overview IMPORTANT: DO NOT BUILD THIS TABLE UPSIDE DOWN. FRAME MUST BE BUILT RIGHT SIDE UP , IN PLACE, AND TOPS THEN ATTACHED. If this procedure is not followed then tops will not line up with frame. DO NOT REMOVE PROTECTIVE MATERIAL FROM TOPS UNTIL FINAL ASSEMBLY. -
Page 4: Leg Assembly
Leg Assembly M6 x 12 Screw Qty. 4 Leg Assembly (continued) Note: Longer end of Foot must face toward M6 x 12 Screw front (user) side. Qty. 8 Glide Qty. 4... - Page 5 Leg Assembly (continued) M6 x 12 Screw Qty. 4 LH Side RH Side Use these holes. Use these holes.
- Page 6 Crossbar Assembly (continued) 60” LH Side 60” RH Side Use these holes. Use these holes. 72” LH Side 72” RH Side Use these holes. Use these holes. 84” LH Side 84” RH Side Use these holes. Use these holes. M6 Flange Head Nut Qty.
- Page 7 Crossbar Assembly for Corner (continued) Corner” LH Side Corner” RH Side Use these holes. Use these holes. M6 Flange Head Nut Qty. 4 M6 x 12 Screw Qty. 4...
-
Page 8: Top Assembly
Top Assembly 5 x 25mm Wood Screw Qty. 12... - Page 9 Top Assembly Corner 5 x 25mm Wood Screw Qty. 12...
-
Page 10: Electrical Components
Electrical Components 45˚ Digital Readout 16mm PH Switch and 45˚ Wood Screw Switch Bracket Qty. 2 Qty 1 45mm PH 2 Port Control Box Wood Screw Qty 1 Qty. 2... -
Page 11: Cable Management
Cable Management Cable Cab 16mm PH Qty 1 Wood Screws Qty 6... - Page 12 Keyboard Mechanism Installation 16mm PH Wood Screws Qty 8...
- Page 13 Keyboard Mechanism Installation (continued) 1-1/2" Black Hex-Head Nut-Bolt Qty 8...
-
Page 14: Cable Diagram
Cable Diagram IMPORTANT: All cables must be tacked up and made neat with supplied cable guides. NO cables may hang down ex- cept those passing through cable chains. Make sure cables have enough slack between surfaces to allow full height adjustment between surfaces. IMPORTANT: Extend desktops to full opposite heights to ensure that cables will travel w/o stress). - Page 15 Cable Diagram Corner IMPORTANT: All cables must be tacked up and made neat with supplied cable guides. NO cables may hang down ex- cept those passing through cable chains. Make sure cables have enough slack between surfaces to allow full height adjustment between surfaces. IMPORTANT: Extend desktops to full opposite heights to ensure that cables will travel w/o stress).
- Page 16 Questions? Call 888 302 3375 Operating your Biomorph Desk Level Series, Flexo Series, and Pro SuperPlus and Level 3Plus-95 desks with 5 legs. DPF1C control switch for MEMORY 1 MEMORY 3 DOWN MEMORY 2 DIGITAL DISPLAY STORE MEMORY NOTE: DPF1C may or may not have digital display To Raise or Lower Height in Regular Use.
-
Page 17: Troubleshooting Guide
Questions? Call 888 302 3375 Troubleshooting Guide DPF1C control switch for Biomorph Level, Flexo, and DPF4T control switch for Plus Series Desks . For dual surface Plus Series desks, you must reset both Check for obstructions above, below and around the desk that front and rear surfaces, by starting with the front then using may impede movement through the desk’s full adjustment...
