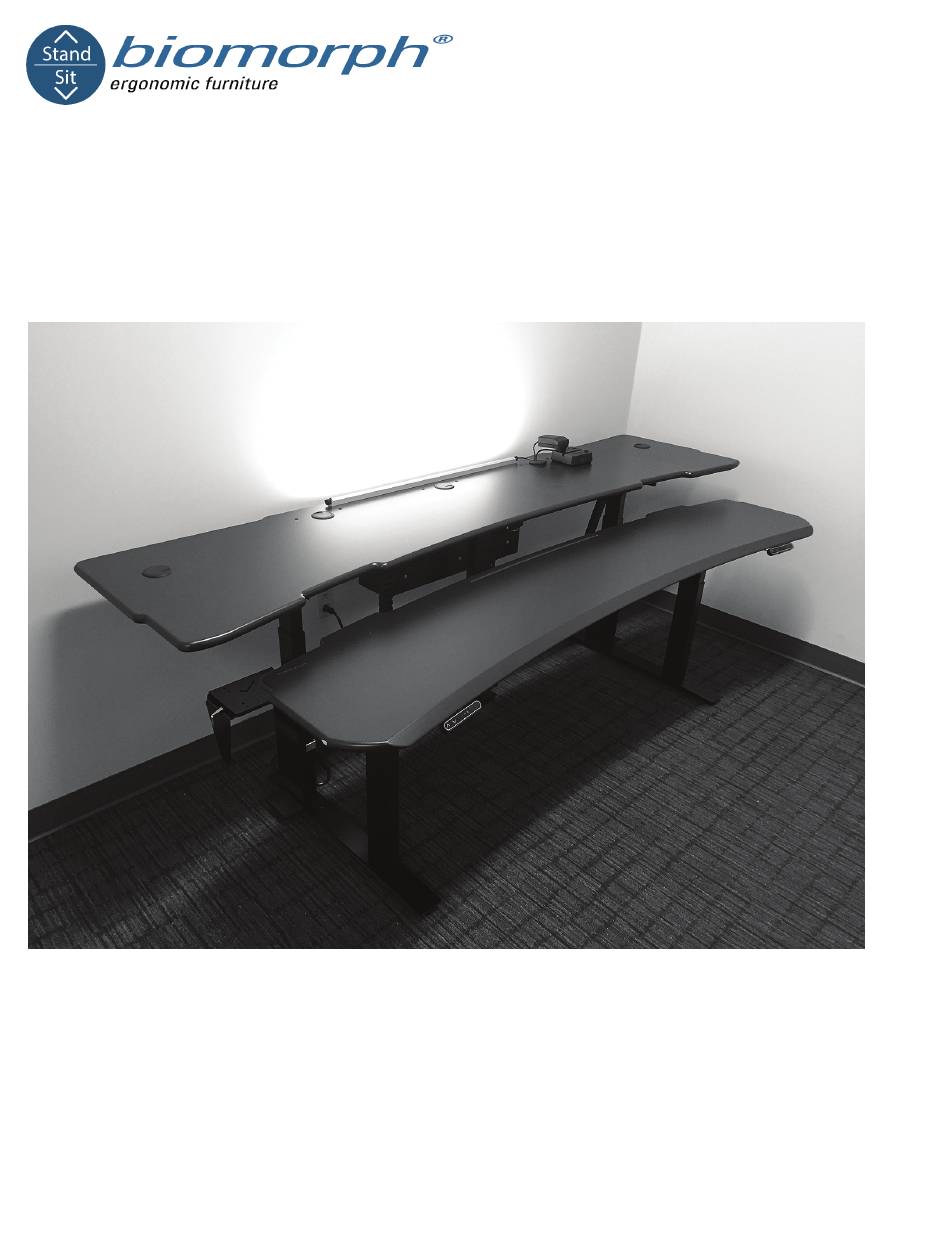

- Page 1 SX5M-BAA-FF-C-B-DSDS SX5M-BAA-FF-C-S-DSDS Level 3Plus-95 ® Ground Support Equipment (US) ltd., DBA Biomorph , 11 Broadway, New York, NY 10004. Tel and Fax 888 302 3375 info@biomorphdesk.com www.biomorph.com Copywright S.Barlow-Lawson 2022...
-
Page 2: Table Of Contents
“Questions? Please call 917.328.8955 for support. IMPORTANT: Any issues at site must be reported to Biomorph immediately at 917 .328.8955, by text or phone and wait on site for response. Also, photos of completed desk(s) must be sent to 917 .328.8955 or vendors@biomorphdesk.com and wait ON SITE for approval. This will avoid potential revisits. Thank you. - Page 3 Assembly Overview Assembly Overview IMPORTANT: DO NOT BUILD THIS TABLE UPSIDE DOWN. FRAME MUST BE BUILT RIGHT SIDE UP , IN PLACE, AND TOPS THEN ATTACHED. If this procedure is not followed then tops will not line up with frame. DO NOT REMOVE PROTECTIVE MATERIAL FROM TOPS UNTIL FINAL ASSEMBLY.
-
Page 4: Qty. 16
Leg Assembly M6 x 12 Screw Qty. 16 M6 x 12 Screw Qty. 16 Note: Longer end of Foot must face toward Glide front (user) side. Qty. 4... - Page 5 Installing Leg-Mounted CPU Holder (optional) Place Leg (A) being installed in Step 3 into Shroud (e). Proceed to Step 4. Align CPU Holder with Shroud Slide CPU Support upward. Tighten screws using Allen and secure using four (4) M6 x Wrench.
- Page 6 Crossbar Assembly LH Side RH Side Use these holes. Use these holes. M6 x 12 Screw Qty. 8 LH Side RH Side Use these holes. Use these holes.
- Page 7 Crossbar Assembly (continued) LH Side RH Side Use these holes. Use these holes. M6 Flange Head Nut Qty. 8 M6 x 12 Screw Qty. 8 LH Side RH Side Use these holes.
- Page 8 Crossbar Assembly (continued) LH Side RH Side Use these holes. Use these holes. M6 Flange Head Nut Qty. 4 M6 x 12 Screw Qty. 4...
-
Page 9: Qty
Assembly Overview M6 x 12 Screw Qty. 8 Glide Qty. 2 Center Leg Assembly (continued) M6 x 12 Screw Qty. 4... - Page 10 Top Assembly 5 x 25mm Wood Screw Qty. 62...
-
Page 11: O 3 Port Control Box
Electrical Components 45˚ Digital Readout 16mm PH Switch and 45˚ Wood Screw Switch Bracket Qty. 2 Qty 1 45mm PH 45mm PH 3 Port Control Box 2 Port Control Box Wood Screw Wood Screw Qty 1 Qty 1 Qty. 4 Qty. - Page 12 Cable Management Cable Chains 16mm PH Qty 2 Wood Screw Qty. 8 Cable Cab 16mm PH Qty 1 Wood Screw Qty. 6...
-
Page 13: Wire Clips
Cable Diagram IMPORTANT: All cables must be tacked up and made neat with supplied cable guides. NO cables may hang down ex- cept those passing through cable chains. Make sure cables have enough slack between surfaces to allow full height adjustment between surfaces. IMPORTANT: Extend desktops to full opposite heights to ensure that cables will travel w/o stress). - Page 14 Questions? Call 888 302 3375 Operating your Biomorph Desk Level Series, Flexo Series, and Pro SuperPlus and Level 3Plus-95 desks with 5 legs. DPF1C control switch for MEMORY 1 MEMORY 3 DOWN MEMORY 2 DIGITAL DISPLAY STORE MEMORY NOTE: DPF1C may or may not have digital display To Raise or Lower Height in Regular Use.
- Page 15 Questions? Call 888 302 3375 Troubleshooting Guide DPF1C control switch for Biomorph Level, Flexo, and DPF4T control switch for Plus Series Desks . For dual surface Plus Series desks, you must reset both Check for obstructions above, below and around the desk that front and rear surfaces, by starting with the front then using may impede movement through the desk’s full adjustment...
