All illustrations in this manual are for explanatory purposes only. Your air conditioner may be
slightly different. The current form is the one that prevails..

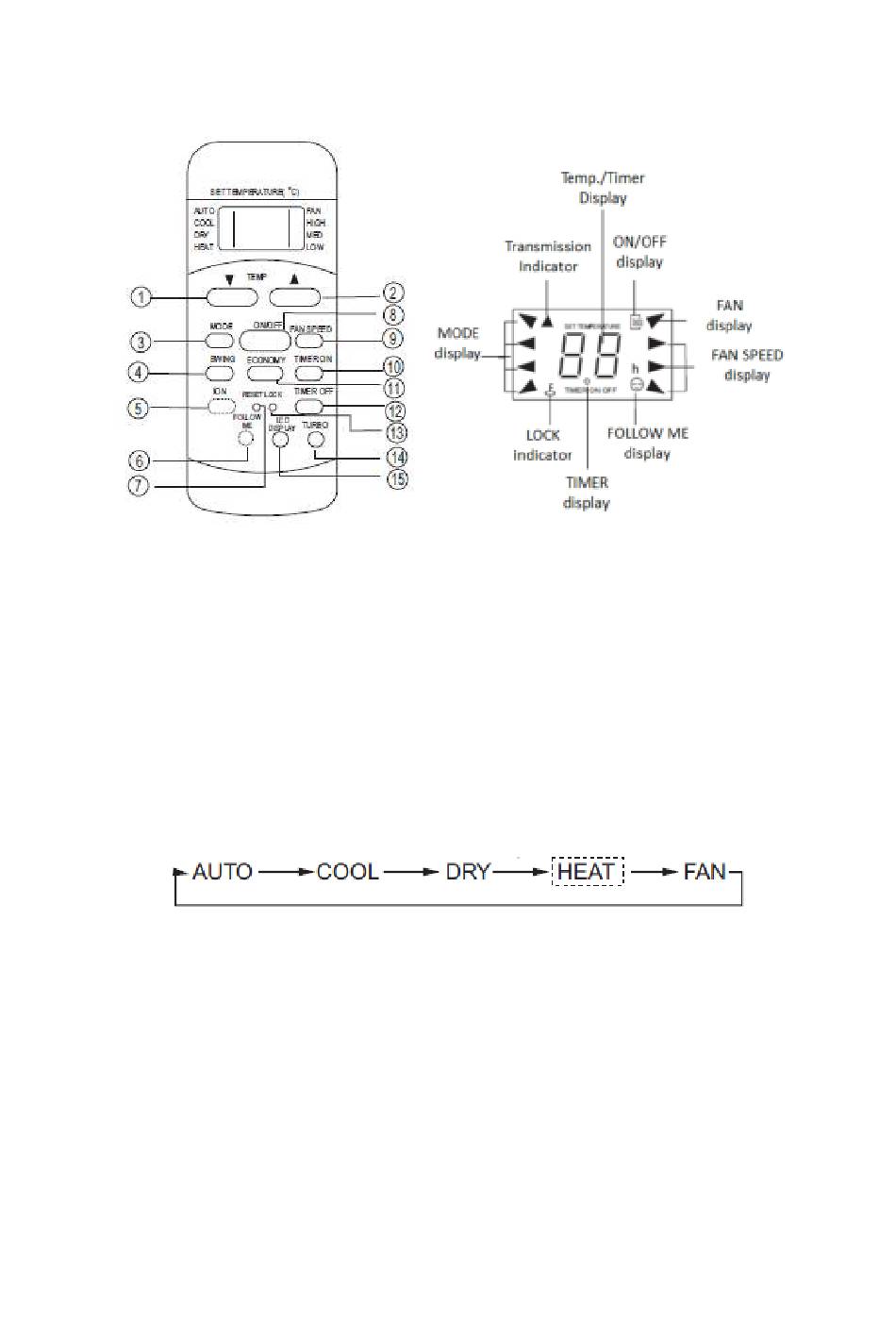

TEMP DOWN Button
1.
Pressing this button decreases the indoor temperature setting from 1ºC (2ºF) to 30ºC (88ºF).
TEMP UP Button
2.
Pressing this button will increase the indoor temperature setting from 1ºC (2ºF) to 30ºC (88ºF).
MODE Button
3.
Each press of the button selects the operating mode, in a sequence like this (Auto / Air Conditioner /
Dehumidifier / Heating / Fan):
Note: Heating "HEAT" mode is only available for reversible devices.
SWING Button (on some models)
4.
Used to stop or start the louver movement or adjust the direction of the airflow up or down.
ION Button (Optional)
5.
By activating this button, the ion generator will energize and help remove pollen and impurities from the air.
FOLLOW ME Button (Optional)
6.
Refer to FOLLOW ME mode
