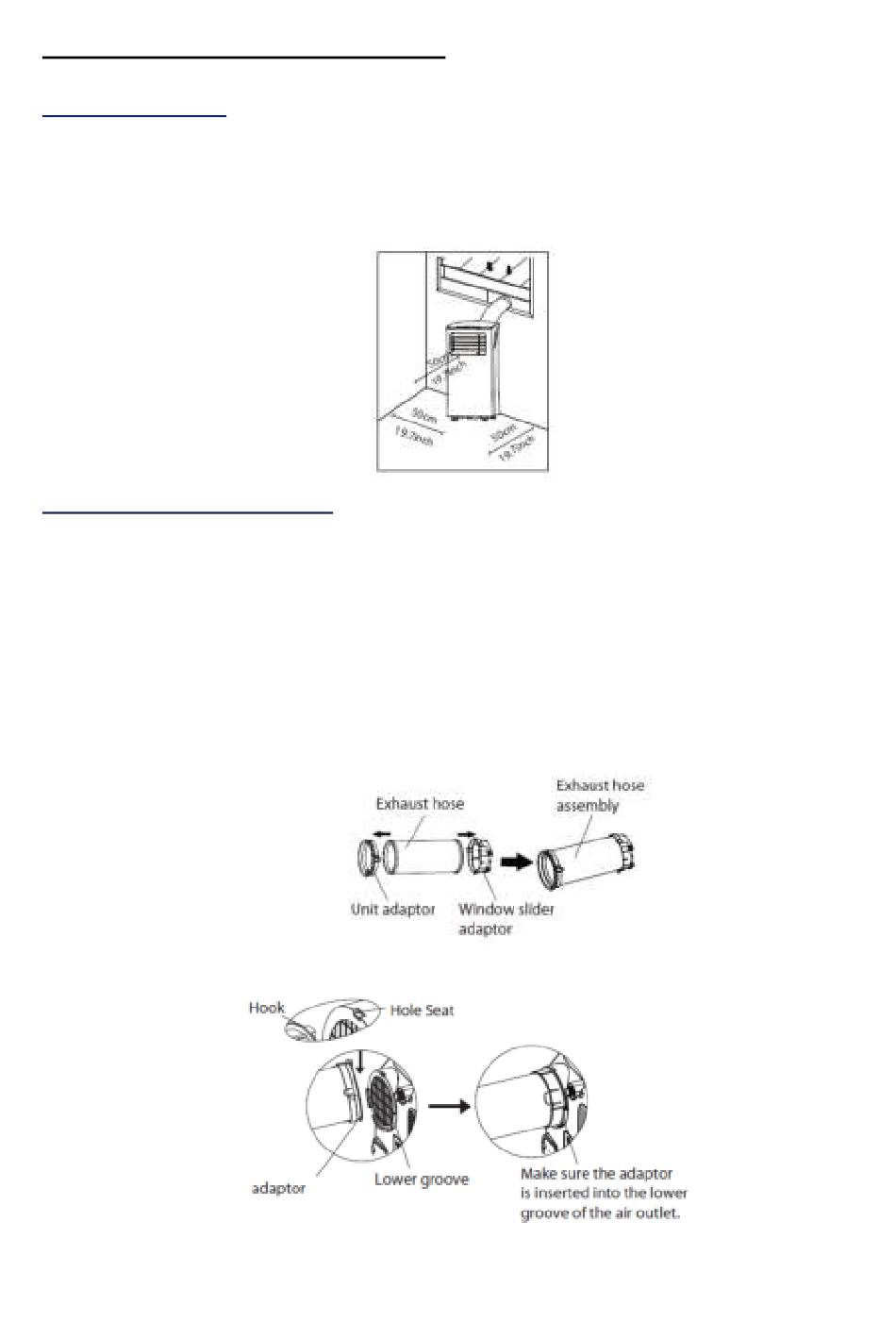

4. INSTALLATION INSTRUCTIONS

Select mounted place
Always place and use the appliance on a dry, level, flat and level surface. Leave at least 50 cm of clearance
behind and on both sides of the appliance and leave at least 50 cm of free space above the appliance
before connection of exhaust pipe.
Assembly method of exhaust pipe
The pipe and the exhaust adapter must be installed or removed in accordance with the operating
instructions.
For AIR CONDITIONER or HEATING mode, the exhaust pipe must be installed.
For FAN or DEHUMIDIFIER mode, the exhaust pipe must be removed.
✓ Step one: Prepare the exhaust pipe by assembling the pipe with the appliance adapter and the
window slider adapter
✓ Step two: Install the exhaust pipe to the air outlet of the air conditioner according to drawing.
41
