Caution:
1. Exhaust pipe is 28cm-150cm long (including adapter). We recommend using the minimum
length so as to save energy for you.
2. The length of exhaust pipe is especially designed in accordance with the specification of the
air conditioner. Please do not use other exhaust pipes of different lengths or materials, in such way
failure may be caused.
Installation of window sealplate
With this product, a window kit is provided.
This kit has been designed to be compatible with most standard horizontal or vertical windows.
We invite you to follow the diagrams below for a good installation.

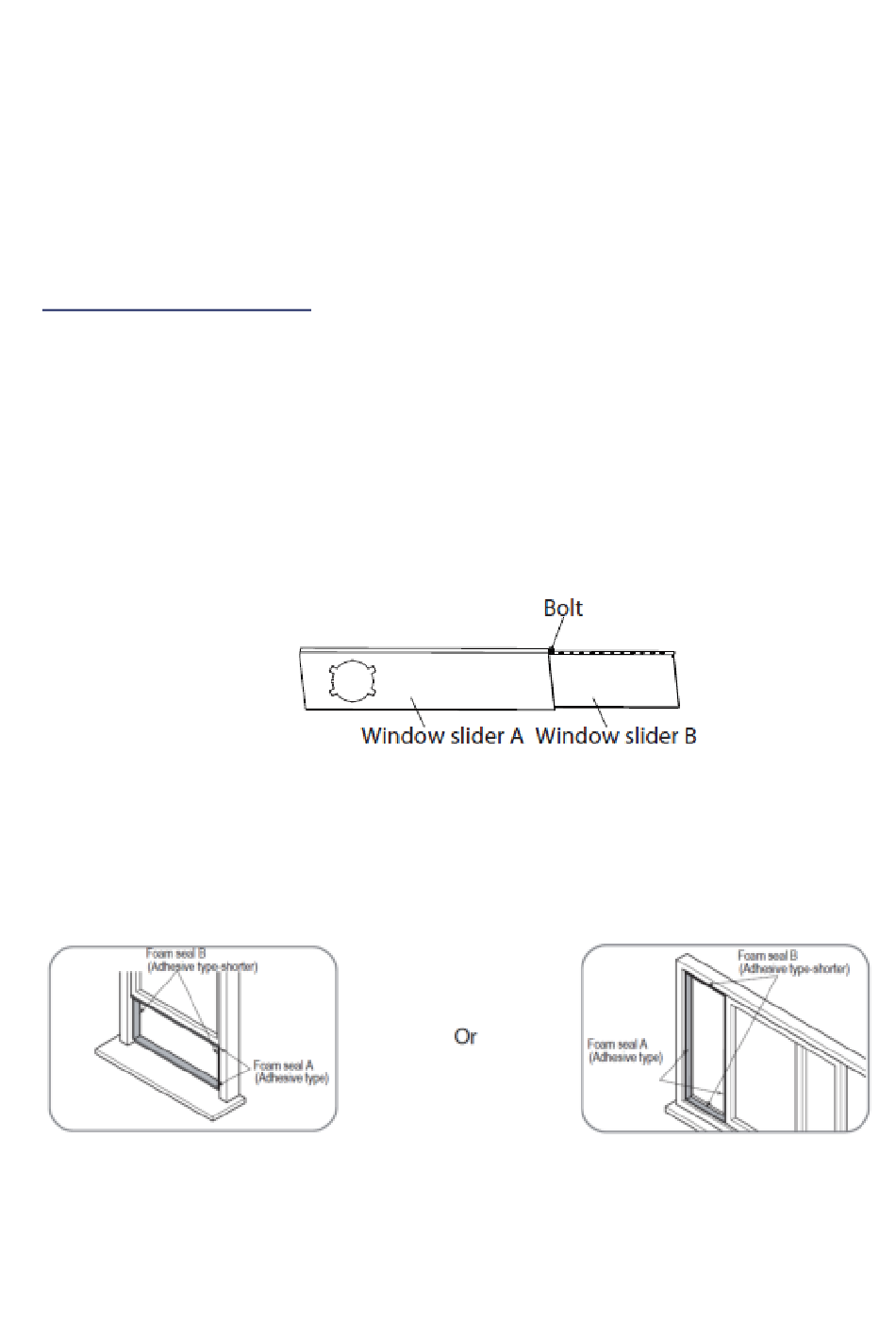

Step 1: Preparing the adjustable window slider
1. Depending on the size of your window, adjust the size of the window slider.
2. If the length of the window requires two or three window sliders, use the bolt(s) to fasten the window
sliders once they are adjusted to the proper length.
Step 2: Type 1: Hung Window or Sliding Window Installation
1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window
sash and frame as shown.
