Removing The 4-Cell Battery - Dell Inspiron 16 5625 Service Manual

Steps
1. Align the screw holes on the battery with the screw holes on the palm-rest and keyboard assembly.
2. Replace the three screws (M2x3) that secure the battery to the palm-rest and keyboard assembly.
3. Connect the battery cable to the system board.
4. Adhere the tape that secures the battery cable to the battery.
Next steps
1. Install the base cover.
2. Follow the procedure in

Removing the 4-cell battery

Prerequisites
1. Follow the procedure in
2. Remove the base cover.
About this task

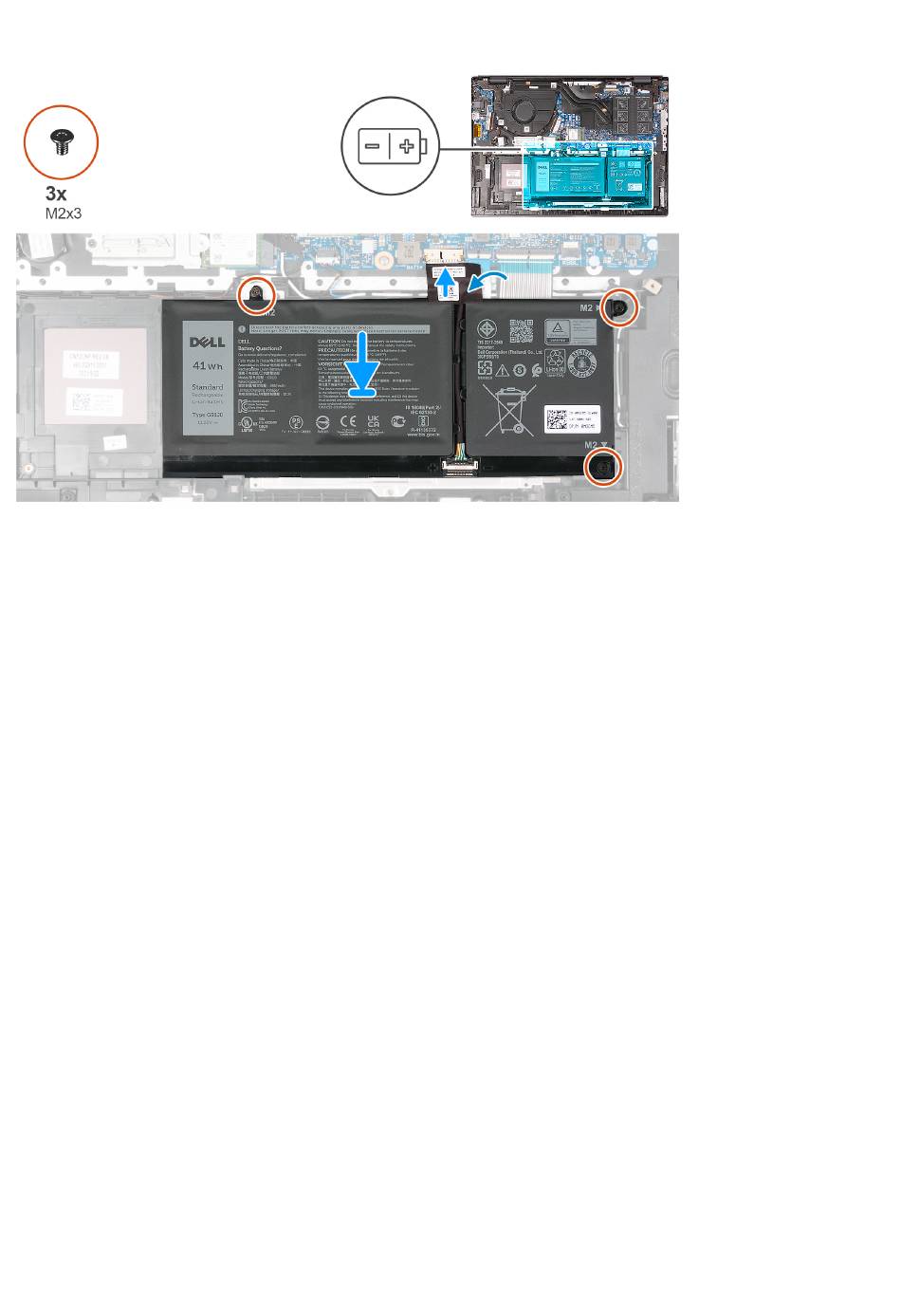

The following image(s) indicate the location of the 4-cell battery and provides a visual representation of the removal procedure.
After working inside your
Before working inside your
computer.
computer.
Removing and installing components 19
