Dwyer Instruments WSM-10 Installation And Operating Instructions

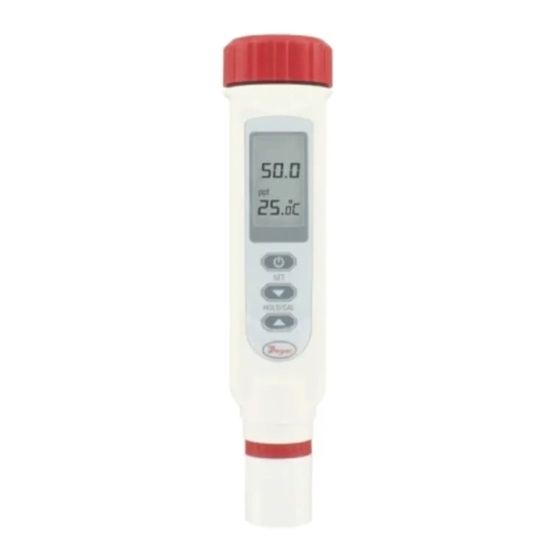

The Model WSM-10 Salinity Testing Pen can measure salt concentration of
saltwater aquariums, determine the suitability of drinking water, and be used for
ecological monitoring of aquatic habitats. This pocket sized tester is constructed of
a durable ABS plastic waterproof housing and 316 SS electrodes to protect against
corrosion. A large LCD display is easy to read and shows both the salinity and
temperature measurements simultaneously. Since change in temperature can
affect accuracy, the WSM-10 has automatic temperature compensation to achieve
±1% accuracy. Batteries (four Alkaline LR44) are included in packaging.
OPERATING INSTRUCTIONS
Introduction
Please read the manual completely before using this meter. Filing and keeping the
manual for future reference is recommended. It is also recommended to soak the
electrode for at least 30 minutes before using the meter to clear anything affecting
the probe.
Power Supply
The meter is powered by 4 LR44 button cell batteries. Check the batteries if it is
your first time use, if the battery symbol appears on the LCD, or if the meter cannot
power on.
To install the batteries:
1. Turn off the meter.
2. Loosen the battery cover in the counterclockwise direction (DON'T discard the
black washer!).
3. Replace the old batteries with four new button cell LR44 batteries.
4. Make sure the batteries are in place and the polarity is correct.
5. Put the battery cover back and turn it tightly in the clockwise direction.
NOTICE Remove the batteries from instruments that you do not plan to
use for a month or more. Do not leave batteries in the
instrument.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
Waterproof Salinity Testing Pen
Specifications - Installation and Operating Instructions
Phone: 219/879-8000
Fax: 219/872-9057
1-31/64
[37.80]
LCD SCREEN
PROBE
SPECIFICATIONS
Wetted Materials: ABS plastic and 316 SS.
Range: 0 to 10 ppt (NaCl) or 10.1 to 70 ppt (NaCl).
Accuracy: ±1% FS.
Display: 30(H) x 18(W) mm LCD dual display.
Resolution: .01 ppt or .1 ppt for 0 to 10 ppt range, and 10 to 70 ppt range
respectively.
Temperature Range: 32 to 122°F (0 to 50°C).
Power Requirements: 4 LR44 batteries, 1.5 V ea.
Enclosure Rating: IP65.
Weight: 4.3 oz (115 g).
Agency Approval: CE.
www.dwyer-inst.com
e-mail: info@dwyer-inst.com
Bulletin TE-WSM-10
6-11/32
[161.21]
