Dwyer Instruments EC2-10 Installation And Operating Instructions

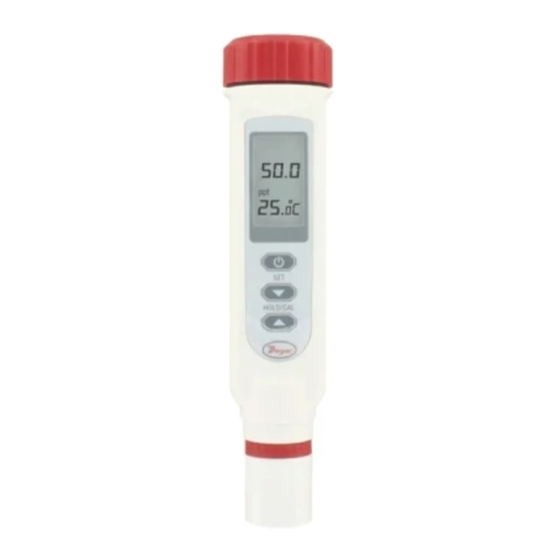

The Model EC2-10 Conductivity Testing Pen can monitor conductivity levels by
determining the resistance between the electrodes. Conductivity of water is useful
in monitoring the quality of public drinking water and deionized water for industrial
applications. This pocket sized tester is constructed of a durable ABS plastic
waterproof housing and 316 SS electrodes to protect against corrosion. A large
Lcd Display is easy to read and shows both the conductivity and temperature
measurements simultaneously. Since change in temperature can affect accuracy,
the EC2-10 has automatic temperature compensation. Batteries (four Alkaline
LR44) are included in packaging.

OPERATING INSTRUCTIONS

Introduction

Please read the manual completely before using this meter. Filing and keeping the
manual for future reference is recommended. It is also recommended to soak the
electrode for at least 30 minutes before using the meter to clear anything affecting
the probe.

Power Supply

The meter is powered by 4 LR44 button cell batteries. Check the batteries if it is
your first time use, if the battery symbol appears on the LCD, or if the meter cannot
power on.
To install the batteries:
1. Turn off the meter.
2. Loosen the battery cover in the counterclockwise direction (DON'T discard the
black washer!).
3. Replace the old batteries with four new button cell LR44 batteries.
4. Make sure the batteries are in place and the polarity is correct.
5. Put the battery cover back and turn it tightly in the clockwise direction.
NOTICE Remove the batteries from instruments that you do not plan to
use for a month or more. Do not leave batteries in the
instrument.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
Waterproof Conductivity Testing Pen
Specifications - Installation and Operating Instructions
Phone: 219/879-8000
Fax: 219/872-9057
1-31/64
[37.80]
LCD SCREEN
PROBE

SPECIFICATIONS

Wetted Materials: ABS plastic and 316 SS.
Range: 0 to 1999 μS or 0 to 19.99 mS.
Accuracy: ±1% FS.
Display: 30(H) x 18(W) mm LCD dual display.
Resolution: 1uS or .01 mS.
Temperature Range: 32 to 122°F (0 to 50°C).
Power Requirements: 4 alkaline LR44 batteries, 1.5V ea.
Enclosure Rating: IP65.
Weight: 4.3 oz (115 g).
Agency Approval: CE.
www.dwyer-inst.com
e-mail: info@dwyer-inst.com
Bulletin TE-EC2-10
6-11/32
[161.21]
