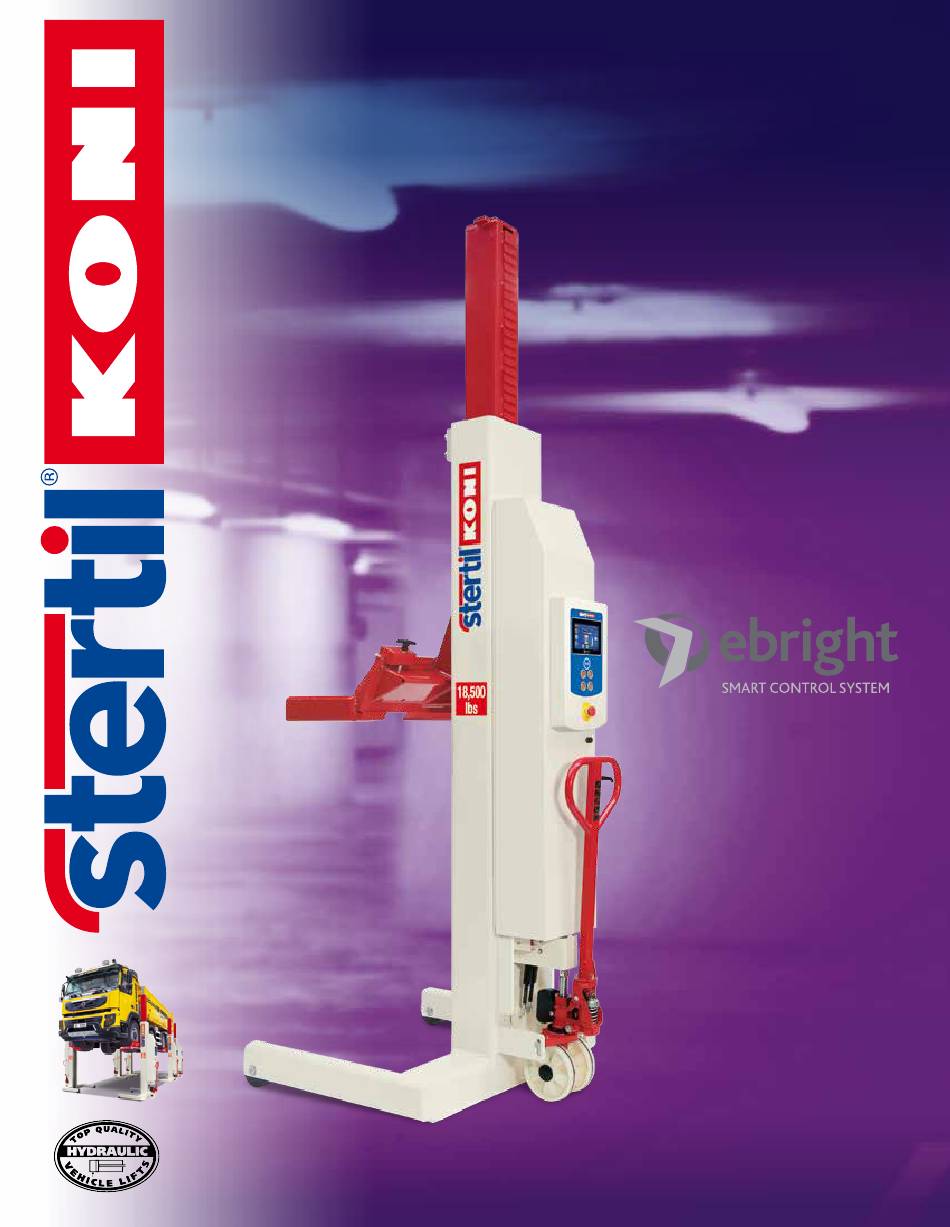

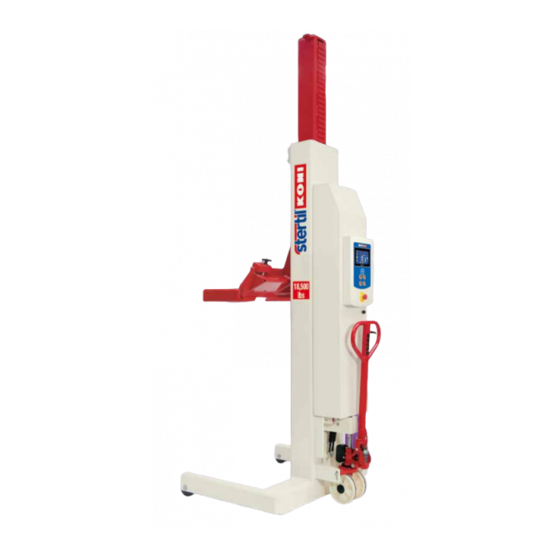

- Page 1 MOBILE COLUMN LIFT ST 1085 - ST 1100 Capacity 18,500 lbs. or 22,000 lbs. S T E R T I L S U P E R I O R S O L U T I O N S...
- Page 2 Thanks to its quality people, its total in-house production process and its international organization, Stertil-Koni is the world leader in the field of heavy-duty vehicle lifting systems. Wireless… Our wireless mobile column lifts with the ebright Smart Control System represent the latest in mobile column lifting technology.
-
Page 3: Control System
Wireless mobile column lifts with ebright Smart Control System TOUCH SCREEN WIRELESS … or cabled, it’s up to you Full color touch screen control If you predominantly work in a fixed location the cabled The revolutionary ebright Smart Control System mobile column lifts could be the best solution for you. - Page 4 Both the wireless and the cabled mobile column lifts are available with retractable wheels. This unique Stertil-Koni The Stertil-Koni wireless mobile column lifts operate on design is the best available on the market. This prevents 24 VDC and are easily recharged by means of a 110 VAC high point loading on the floor and reduces the floor wall receptacle.
-
Page 5: Lifetime Guarantee
SYSTEM Easy to move Unique synchronization Stertil-Koni mobile column lifts are indeed mobile, thanks The synchronization system is activated at a height to the synthetic roller wheels and hydraulic pallet jack difference of just 9/16". This ensures a safe and smooth mechanism with patented overload protection. - Page 6 High resolution 7" touch screen Intuitive controls Features • Tracking of specific operations and information codes • High resolution 7” touch screen • Intuitive controls with actual data about the lift: • Owner/User configurable system with user ID key - Indication for Single, All or Pair operation mode - Individual user settings for setting language - Information about how many columns are and units of measure...
- Page 7 Overview of ST 1085 – ST 1100 wireless wireless cabled cabled models ST 1085-FWA ST 1085-RWA ST 1085-FSA ST 1085-RSA ST 1100-FWA ST 1100-RWA ST 1100-FSA ST 1100-RSA • • • • ebright Smart Control System with a control box on each individual mobile column •...
-
Page 8: Technical Specifications
More information? & options tailored to fit your specific needs. For more information about the ST 1085, ST 1100, or any of Stertil-Koni's other top products, please do not hesitate to contact us. We will be pleased to assist you. -
Page 9: Quality Assurance
DIVISION 14 45 00 VEHICLE LIFTS(ST 1085 FWA ebright) PART 1 GENERAL SECTION INCLUDES Mobile column lifts. RELATED SECTIONS Section 03 30 00 - Concrete: Footings and foundations. Section 26 05 00 - Common Work Results for Electrical. SUBMITTALS Submit under provisions of Section 01 30 00 - Administrative Requirements. Product Data: Manufacturer's data sheets on each product to be used, including: Preparation instructions and recommendations. -
Page 10: Warranty
Guide rollers shall have a lifetime warranty; this extended warranty covers parts only. PART 2 PRODUCTS MANUFACTURERS Acceptable manufacturer: Stertil-Koni USA, Inc., which is located at: 200 Log Canoe Circle; Stevensville, MD 21666; Toll Free Tel: 800-336-6637; Tel: 410-643-9001; Email: request info (lifts@stertil-koni.com);... - Page 11 The main power shall be fused between the primary power switch and the motor/control circuits to protect against overload. When fully charged, the on board battery power system shall be capable of 19 lifting/lowering cycles at 100% of lifting capacity and 28 lifting/lowering cycles at 50% of lfiting capacity .
- Page 12 pulsation, jerks, or unsteady lifting. Lifting shall be smooth. The hydraulic power unit shall be an electrically-powered pump, flow control valves, and a fluid reservoir. Lifting carriage shall ride on durable, oil filled nylon guide rollers. Guide rollers shall require no lubrication and no maintenance. Each hydraulic cylinder shall be equipped with a hose burst check valve to prevent decent in the event of a major fluid leak.
- Page 13 iii. Manufacturer information viii. One-touch access to the Settings screen which displays 5 options which allows management of : i. Settings screen option (1): On this screen, operators shall have the ability to change the language displayed on the screen as well as the units of measure for height and weight (imperial or metric units).
- Page 14 a fixed value for the height monitoring device in a particular column. This system is only for use by the lift system maintainer during repair procedures. This system option will automatically be disabled and the control system returned to default operating parameters after 2 minutes.
-
Page 15: Installation
present on each column. This safety device shall be totally independent from the lifting drive system. Increments on lifting carriage locking profile shall not be greater than 1.375 inches (35 mm) and the first locking position shall engage after no more than 5.0 inches (120 mm) of lifting. A locking “pawl and ratchet”...
