- Page 1 INSTRUCTION MANUAL – EN Home Advanced Edition 7 Home Advanced Edition 11...
-
Page 3: Product Description And Intended Use
The charge point is connected to the electricity grid and are not mentioned in our manual. NewMotion is not even if the equipment is switched off, hazardous voltag- responsible for any loss or damage whatsoever caused es may be present at the input terminals. - Page 4 2. CHARGE POINT OPERATION This selected charge point can be connected to a Charge Point Operator (CPO) backoffice via WiFi or ethernet. In case of an error or issue, on site support is needed from a ZE-Ready certified installer. Your Renault dealer should be able to provide you a list of ZE-Ready certified installers.
-
Page 5: Product Overview

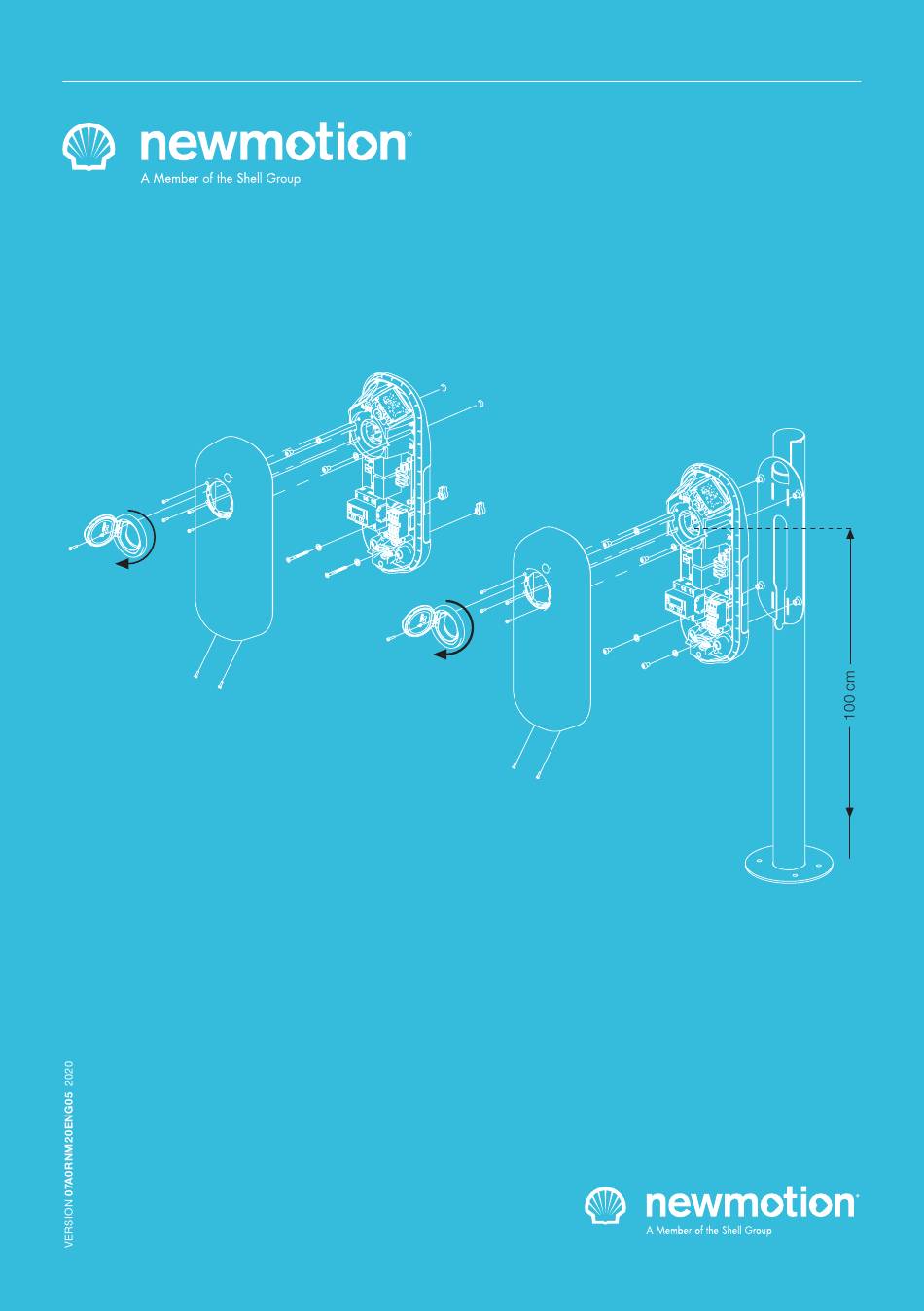

3. PRODUCT OVERVIEW 3.1 MOUNTING, PACKAGE CONTENTS AND REQUIRED TOOLS Package contents with charge point Required tools & additional materials (not provided) Wall mounting - Charge point; - 4x 6.3mm x 70mm Self Tapping pan - Rubber grommets (various sizes); head Torx screws (DIN 7981C) stainless - 2x Plastic spacers;... -
Page 6: Technical Specifications
3. PRODUCT OVERVIEW 3.2 TECHNICAL SPECIFICATIONS Serial number format Home Advanced 7 07A _ _ _ _ _ Serial number format Home Advanced 11 07B _ _ _ _ _ Maximum charge capacity Home Advanced 7: single phase 32A* Home Advanced 11: triple phase 16A* Standard configured charge capacity Home Advanced 7: 3,7 kW - single phase 16A** Home Advanced 11: 11 kW - triple phase 16A**... - Page 7 3. PRODUCT OVERVIEW 3.2 TECHNICAL SPECIFICATIONS (CONTINUED) Backoffice protocol OCPP protocol Stand-by consumption 3-5W Operating temperature range -30℃ to +50℃ Operating humidity range 5% to 95% Operating air pressure range 860 hPa to 1060 hPa Maximum mounting height socket 1.5 meter above ground Advised mounting height socket 1 meter above ground Mounting position...
-
Page 8: Overview Of Product

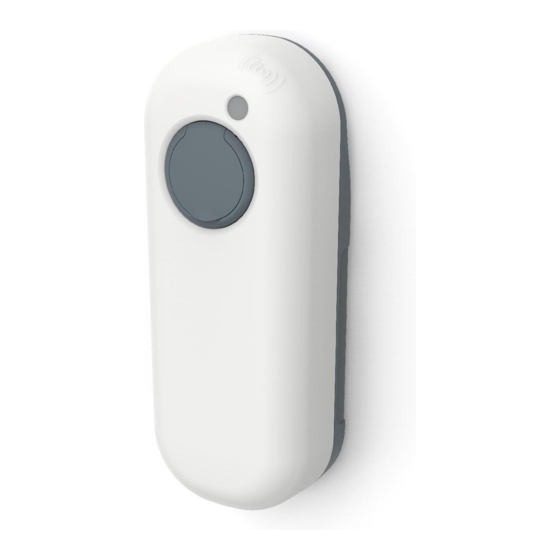

3. PRODUCT OVERVIEW 3.3 OVERVIEW OF PRODUCT RFID Reader LED Status indicator Type 2S shutter EV Plug socket & Cover lid Identification label with serial number INSTALLATIEHANDLEIDING – P8 VERSION 0129NM02INT01 INSTRUCTION MANUAL – P8 | P8 07A0RNM20ENG05... -
Page 9: Overview Of Connections
3. PRODUCT OVERVIEW 3.4.1 OVERVIEW OF CONNECTIONS Ethernet port Phase 1 Neutral Earthing Phase 3 Phase 2 Earthing pole Power cables clamps UTP data cable inlet INSIDE with rubber seal Inlets for power cables INSTALLATIEHANDLEIDING – P9 VERSION 0129NM02INT01 INSTRUCTION MANUAL – P9 | P9 07A0RNM20ENG05... - Page 10 3. PRODUCT OVERVIEW 3.4.2 OVERVIEW INSTALLING ACCESSORIES P1 Port for Load Shedding ON/OFF Peak Shunt connection connection (L1 & N from (L2 & L3 from accessories cable) accessories cable) INSIDE Cable clamp 5 wires Ø 1,5mm UTP data cable inlet accessories cable inlet with rubber seal for Load Shedding...
-
Page 11: Installation Details
4. INSTALLATION DETAILS The installer is responsible for selecting a cable thickness & safety components appropriate for the specific situation and according to local regulations Wiring advice* - Wire for the maximum hardware amperage under continuous load; - Calculate with a COS-Phi of 0.8; - Calculate with a max allowed voltage drop over the cable of 2%;... -
Page 12: Installation Procedure
5. INSTALLATION PROCEDURE 5.4 LOAD SHEDDING MODULE Thank you for installing this charge point. Make sure there is enough space to properly do the work. The Load Shedding Module package contains one Load Ensure to work safely and take the safety of others into Shedding module, one power adapter and three current consideration as well, always work according to local transformers (CT’s). - Page 13 5. INSTALLATION PROCEDURE Step 10: Check if the RJ12 connectors are OKAY with a Step 5: Install the 3-way switch on the DIN Rail in the network cable tester; fuse box; Step 11: Plug the RJ12 cable in the black P1 dongle, which is included in the box.
-
Page 14: Internet Connection
Charge point configuration should be done after the charge point is powered on, using the Home Charging by NewMotion app. To configure charge point features such as Load Shedding, please follow the instructions as desribed in chapter 6 of this installation manual. -
Page 15: Local Configuration
- Use the QR Code for WiFi connection, which is included in the charge point package, when the Home Charging by NewMotion app requests to scan a QR Code 6.1 POWER SETTING Select the maximum allowed current for the installed circuit. - Page 16 7. USER MANUAL 7.1 REGULAR USE Position C Charging will only happen in Off peak. When the switch The first step is to connect your car to the charge to On peak occurs while the car is charging, the charge point by plugging in the charge cable.
