JBL Control Control 128W Technical Manual

Technical Manual
JBL Control 128W/T

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance: 8 ohms
• Power Capacity: 240 Watts Peak
120* Watts Continuous Program
60 Watts Continuous Pink Noise
• Frequency Response: 30 Hz – 20 kHz (–10 dB)
• System Sensitivity: Passive Mode 90 dB SPL (2.83V @ 1 meter)
• Crossover Freq.: 2,500 Hz
SYSTEM COMPONENTS:
• Cabinet: (Not For Sale)
• Grille: 353952-001
• Low Frequency 200 mm (8 in) polymer-coated aluminum cone,
Transducer: pure butyl rubber surround
• DC Resistance: 5.7 ohms ±10%
• High Frequency 25 mm (1 in) pure titanium dome with cloth
Transducer: suspension on low-diffraction swiivel-mount with
-10 degree aimability.
• DC Resistance: 5.5 ohms ± 10%
• Crossover Network 353967-001
PACKAGE
Carton
353962-001
JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

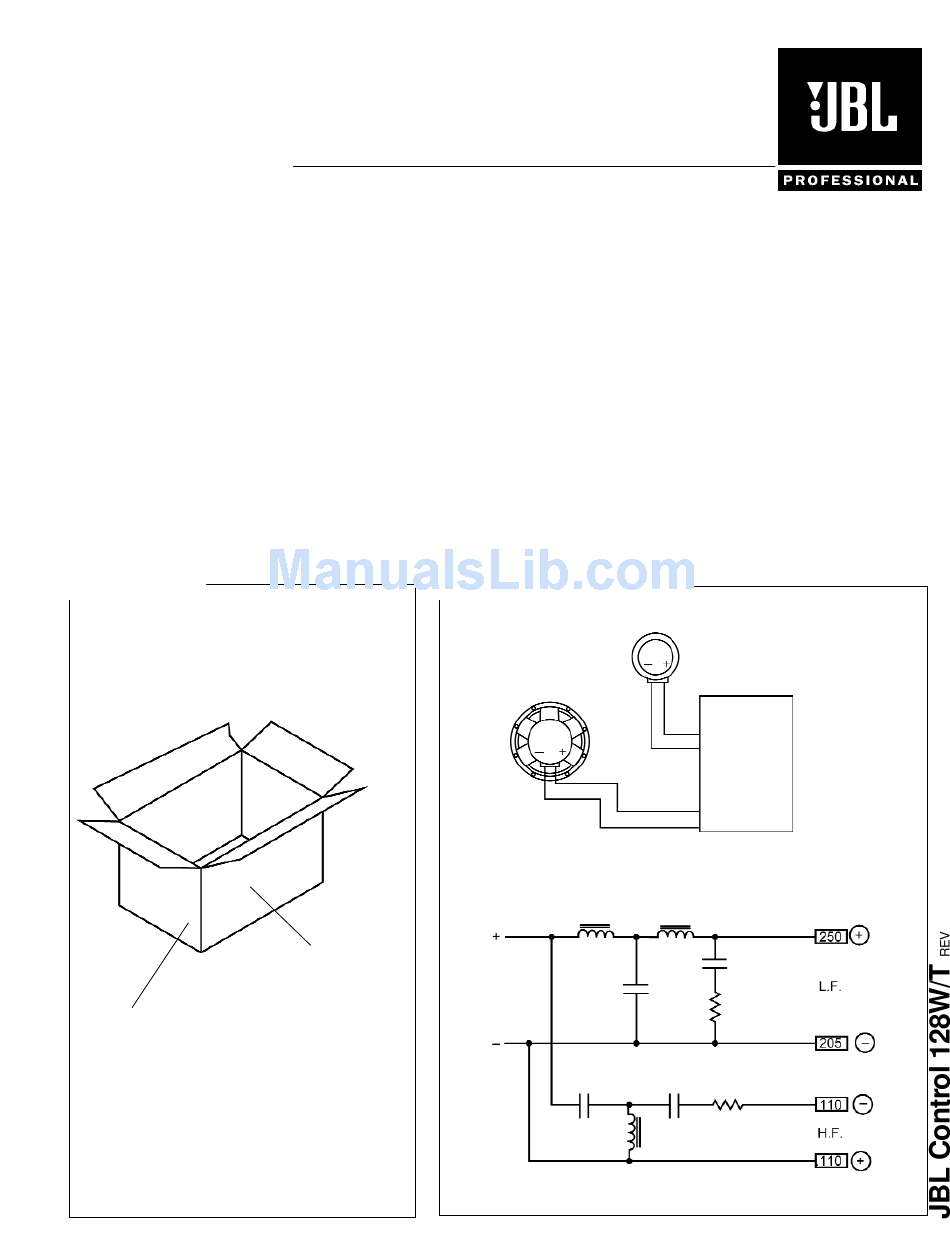

WIRING DIAGRAM

Warranty 59660
Driver,
Low Freq
353966-001
Transformer
363224-001
Poly Bag
353958-001
Manual
353358-001
AURAL SWEEP TEST SPECIFICATIONS:
• System Aural Sweep Test:
• L.F. Aural Sweep Test:
• H.F. Aural Sweep Test:
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions:
• Net Weight (ea):
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.
* The maximum recommended amplifier power rating will ensure
proper system headroom to allow for ocasional peaks. We do not
recommend sustained operation at these maximum power levels.
SCHEMATIC (353967-001)
0.6nH 0.6nH
INPUTS
16µF
100V
7.5 ohms
5 watts
3µF
3µF
250V
250V
0.5mH
6.0V Input 30 Hz to 20 kHz
5.0V Input, 30 Hz to 3 kHz
2.83V Input, 2 kHz to 20 kHz
334 mm x 257 mm x 110 mm D
(113.1 in. x 10.1 in. x 4.3 in. D)
102 mm (4 in) front of wall to back
of speaker
5.5 lbs. (2.6 kg.) Sold in Pairs
Driver,
High Freq
353965-001
Network
353967-001
GREEN
20µF
100V
BLACK
1.2 ohms
5 watts
YELLOW
BLACK
08-06
