JBL Control Control 126W Technical Manual

Technical Manual
JBL Control 126W/T

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance: 8 ohms
• Power Capacity: 200 Watts Peak
100* Watts Continuous Program
50 Wats Continuous Pink Noise
• Frequency Response: 38 Hz – 20 kHz (–10 dB)
• System Sensitivity: Passive Mode 88 dB SPL (2.83V @ 1 meter)
• Crossover Freq.: 2,500 Hz
SYSTEM COMPONENTS:
• Cabinet: (Not For Sale)
• Grille: 353934-001
• Low Frequency 165 mm (6.5 in) polymer-coated aluminum cone,
Transducer: pure butyl rubber surround
• DC Resistance: 5.7 ohms ±10%
• High Frequency 25 mm (1 in) pure titanium dome with cloth
Transducer: suspension on low-diffraction swiivel-mount with
-10 degree aimability.
• DC Resistance: 5.5 ohms ± 10%
• Crossover Network 353948-001
PACKAGE
Carton
353943-001
JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

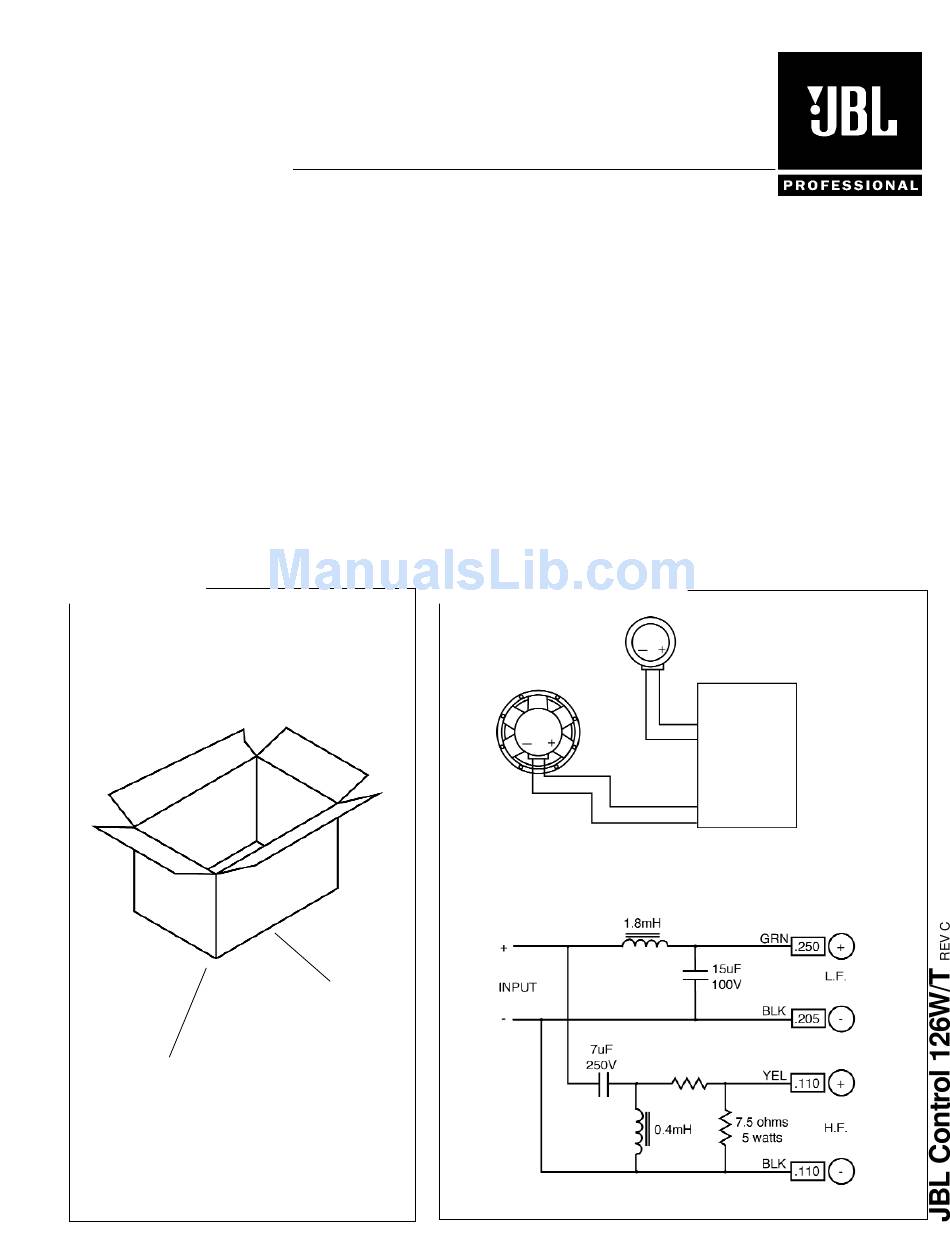

WIRING DIAGRAM

Warranty 59660
Driver,
Low Freq
353947-001
Transformer
363222-001
Poly Bag
353939-001
Manual
353358-001
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test: 6.0V Input 30 Hz to 20 kHz
B. L.F. Aural Sweep Test: 5.0V Input, 30 Hz to 3 kHz
C. H.F. Aural Sweep Test: 2.83V Input, 2 kHz to 20 kHz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions: 280 mm x 215 mm x 105 mm D
(11.0 in. x 8.5 in. x 4.1 in. D)
• Net Weight (ea): 4.5 lbs. (2.1 kg.) Sold in Pairs
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.
* The maximum recommended amplifier power rating will ensure
proper system headroom to allow for ocasional peaks. We do not
recommend sustained operation at these maximum power levels.
SCHEMATIC (353948-001)
Driver,
High Freq
353946-001
Network
353948-001
08-06
