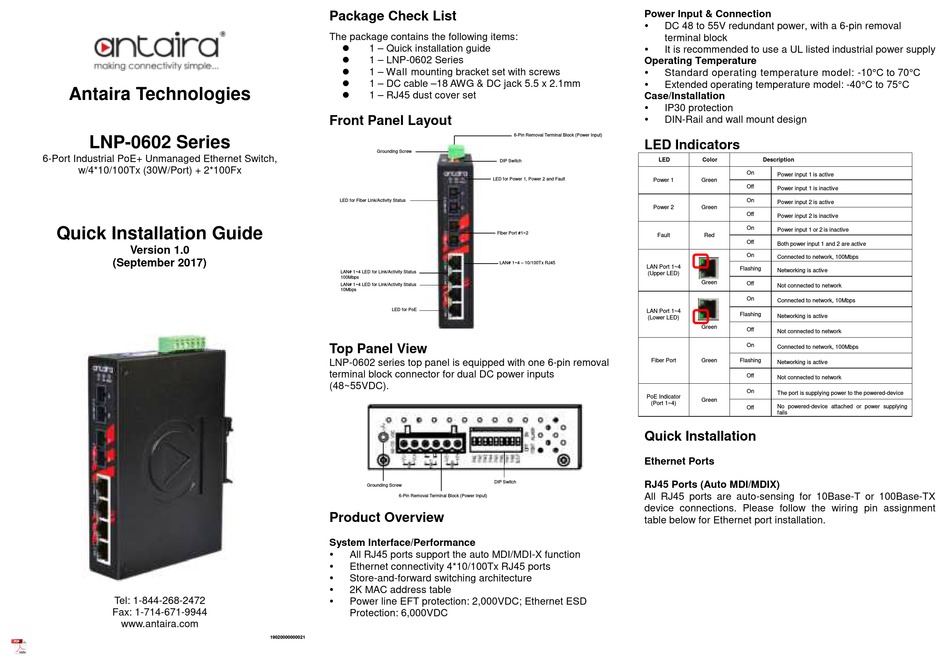

ANTAIRA LNP-0602 Series Quick Installation Manual

Antaira Technologies
LNP-0602 Series
6-Port Industrial PoE+ Unmanaged Ethernet Switch,
w/4*10/100Tx (30W/Port) + 2*100Fx
Quick Installation Guide
Version 1.0
(September 2017)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:

1 – Quick installation guide

1 – LNP-0602 Series

1 – Wall mounting bracket set with screws

1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm

1 – RJ45 dust cover set

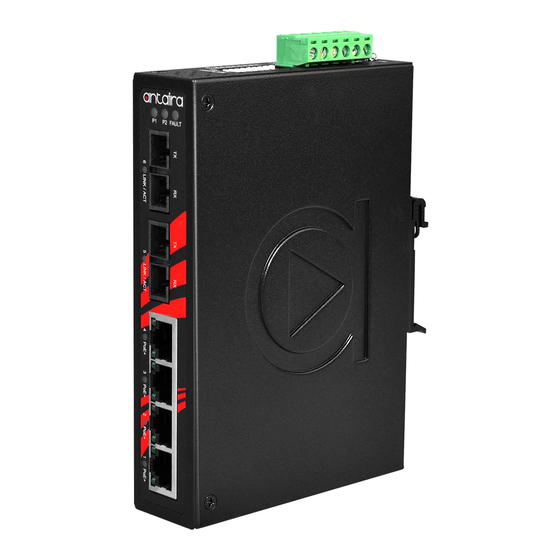

Front Panel Layout
Grounding Screw
LED for Fiber Link/Activity Status
LAN# 1~4 LED for Link/Activity Status
100Mbps
LAN# 1~4 LED for Link/Activity Status
10Mbps
LED for PoE
Top Panel View
LNP-0602 series top panel is equipped with one 6-pin removal
terminal block connector for dual DC power inputs
(48~55VDC).
Grounding Screw
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Ethernet connectivity 4*10/100Tx RJ45 ports

Store-and-forward switching architecture

2K MAC address table

Power line EFT protection: 2,000VDC; Ethernet ESD
Protection: 6,000VDC
19020000000021
Power Input & Connection

DC 48 to 55V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection

DIN-Rail and wall mount design
6-Pin Removal Terminal Block (Power Input)
LED Indicators
LED
DIP Switch
LED for Power 1, Power 2 and Fault
Power 1
Power 2
Fiber Port #1~2
Fault
LAN# 1~4 – 10/100Tx RJ45
LAN Port 1~4
(Upper LED)
LAN Port 1~4
(Lower LED)
Fiber Port
PoE Indicator
(Port 1~4)
Quick Installation
Ethernet Ports
DIP Switch
RJ45 Ports (Auto MDI/MDIX)
All RJ45 ports are auto-sensing for 10Base-T or 100Base-TX
device connections. Please follow the wiring pin assignment
table below for Ethernet port installation.
Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Both power input 1 and 2 are active
On
Connected to network, 100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 10Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 100Mbps
Green Flashing
Networking is active
Off
Not connected to network
On
The port is supplying power to the powered-device
Green
No powered-device attached or power supplying
Off
fails
