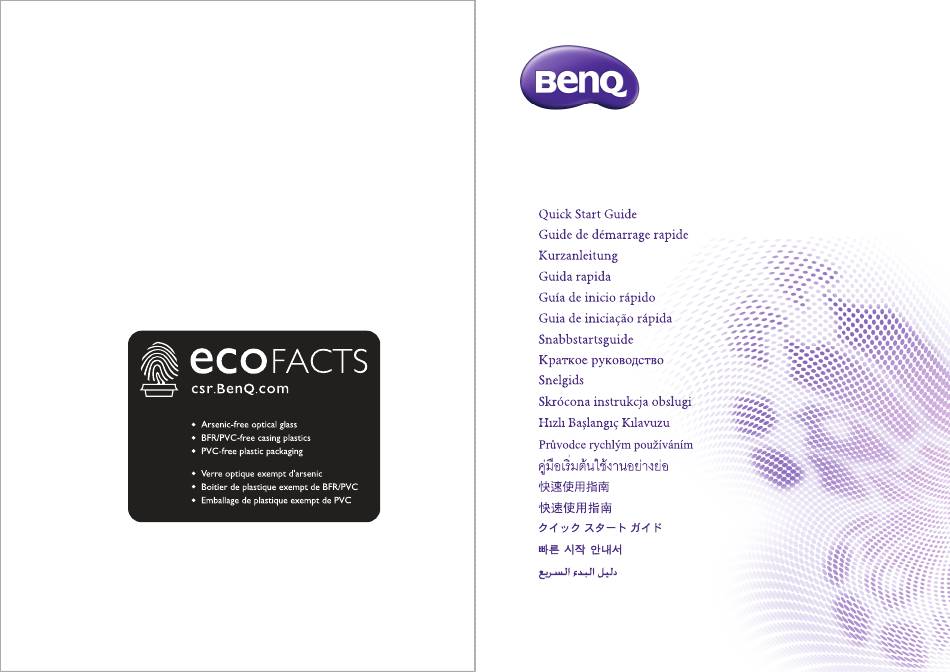

- Page 1 MX852UST+ / MW853UST+ Digital Projector Quick Start Guide BenQ.com © 2014 BenQ Corporation. All rights reserved. Rights of modification reserved. P/N: 4J.J8M01.001...
- Page 3 WXGA 16:10 (2.5mm)
- Page 4 Source selection buttons Source selection buttons NETWORK NETWORK Keystone/Arrow keys Keystone/Arrow keys ▲ ▲ AUTO AUTO MENU/EXIT MENU/EXIT ► Right/ ► Right/ ◄ Left/ ◄ Left/ MODE/ENTER MODE/ENTER ECO BLANK SOURCE ECO BLANK SOURCE Keystone/Arrow keys Keystone/Arrow keys Down) LASER Down) LASER (No available in Japan region)
- Page 5 PointWrite Kit...
-
Page 6: Projection Dimensions
Projection dimensions MX852UST+ The screen aspect ratio is 4:3 and the projected picture is 4:3. Distance between Screen size Screen width Screen height Projection Offset (H) Wall plate & distance (D) (Diagonal) projection screen inch inch inch inch inch 1727 1382 1036 11.16... -
Page 7: Limited Lens Shift Specification
Limited lens shift specification Hx4% Hex Key (2.5mm) Hx4% To shift up the projection image, To shift down the projection image, twist the adjuster counter twist the adjuster clockwisre. clockwisre. -
Page 8: Ceiling Mount Installation
Ceiling Mount Installation (For wall mount installation information, please refer to the wall mount installation guide in the wall mount box.) 287.5 mm (W) x 201 mm (H) x 373.3 mm (D) 373.3 130.2 227.9 287.5 Wall Mount Installation 287.50 137.0 55.0 55.0 OPTICAL AXIS... - Page 9 Using the quick install The projector provides a hot key to set Projector Installation, Test Pattern, and Keystone quickly. Press Quick Install on the remote control and press ▲/▼ to select: QUICK INSTALL Projector Test Pattern Keystone MENU Exit...
- Page 10 It is recommended to adjust focus 15 minutes after powering on due to the slight shifting of the lens from temperature changing.
- Page 12 Table of contents English..................... 12 Français ..................13 Deutsch ..................14 Italiano ................... 15 Español................... 16 Português ..................17 Svenska ................... 18 ..................19 Nederlands ..................20 Polski ..................... 21 Türkçe ................... 22 Čeština..................23 ไทย ....................24 繁體中文 ..................25 简体中文...
-
Page 13: Specifications
Specifications All specifications are subject to change without notice. Optical Control Resolution MX852UST+ Type-B mini USB 1024 x 768 XGA (Optional PointWrite kit) MW853UST+ Type-A power supply 5V /1A 1280 x 800 WXGA (Optional PointWrit Touch module) Display system RS-232 serial control Single-chip DLP system 9 pin x 1... -
Page 14: Caractéristiques
Caractéristiques Toutes les caractéristiques peuvent être modifiées sans notification préalable. Caractéristiques optiques Contrôle Résolution MX852UST+ Mini USB type B 1024 x 768 XGA (Optionnel pour le kit PointWrite) MW853UST+ Alimentation électrique type A 5 V /1 A 1280 x 800 WXGA (Optionnel pour le module tactile PointWrite) Système d’affichage... -
Page 15: Technische Daten
Technische Daten Änderungen aller technischen Daten sind vorbehalten. Optische Daten Steuerung Auflösung MX852UST+ Typ-B-Mini-USB 1024 x 768 XGA (Optional beim PointWrite-Kit) MW853UST+ Typ-A-Stromversorgung 5 V/1 A 1280 x 800 WXGA (optional beim PointWrite-Sensormodul) Anzeigesystem Serielle RS-232-Steuerung Einzel-Chip-DLP™-System 9-polig x 1 F-Wert des Objektivs Infrarotempfänger x 1 F = 2,5;... -
Page 16: Specifiche Tecniche
Specifiche tecniche Tutte le specifiche sono soggette a modifiche senza preavviso. Ottica Controllo Risoluzione MX852UST+ Mini USB tipo B 1024 x 768 XGA (Kit PointWrite opzionale) MW853UST+ Alimentazione Tipo-A 5V /1A 1280 x 800 WXGA (Opzionale per il modulo Touch PointWrite) Sistema di visualizzazione Controllo seriale RS-232 Sistema single-chip DLP™... -
Page 17: Especificaciones
Especificaciones Todas las especificaciones están sujetas a cambio sin previo aviso. Ópticas Control Resolución MX852UST+ Mini-USB tipo B 1024 x 768 XGA (Opcional para el kit PointWrite) MW853UST+ Fuente de alimentación de tipo A 5 V /1 A 1280 x 800 WXGA (opcional para el módulo táctil PointWrite) Sistema óptico Control de serie RS-232... - Page 18 Especificações Todas as especificações estão sujeitas a alteração sem aviso prévio. Ópticas Controlo Resolução MX852UST+ Mini USB Tipo B 1024 x 768 XGA (Kit PointWrite opcional) MW853UST+ Fonte de alimentação Tipo A 5V /1A 1280 x 800 WXGA (opcional para o módulo táctil PointWrite) Sistema de visualização Controlo de série RS-232 Sistema DLP™...
- Page 19 Specifikationer Alla specifikationer kan ändras utan föregående meddelande. Optik Kontroll Upplösning MX852UST+ Typ B mini-USB 1024 x 768 XGA (Extra tillbehör för PointWrite-sats) MW853UST+ Typ A strömförsörjning 5V/1A 1280 x 800 WXGA (Extra tillbehör för PointWrite pekmodul) Visningssystem RS-232-seriekontroll Single-chip DLP™-system 9 stift x 1 Linsens f-nummer IR-mottagare x 1...
- Page 20 Технические характеристики Все характеристики могут изменяться без уведомления. Оптические характеристики Управление Разрешение mini USB Тип B MX852UST+ (Дополнительный комплект 1024 x 768 XGA PointWrite) MW853UST+ Источник питания тип А 5 В/1 А 1280 x 800 WXGA (Не обязателен для сенсорного блока...
- Page 21 Specificaties Alle specificaties kunnen zonder voorafgaande kennisgeving worden gewijzigd. Optische specificaties Besturing Resolutie MX852UST+ Type B mini-USB 1024 x 768 XGA (Optioneel voor PointWrite kit) MW853UST+ Type-A voeding 5 V /1 A 1280 x 800 WXGA (Optioneel voor PointWrite Touch-module) Weergavesysteem Seriële besturing via RS-232 Enkelchips DLP™...
-
Page 22: Parametry Techniczne
Parametry techniczne Wszystkie parametry mogą ulec zmianie bez wcześniejszego powiadomienia. Parametry optyczne Sterowanie Rozdzielczość MX852UST+ Mini USB typ B 1024 x 768 XGA (Opcjonalny zestaw PointWrite) MW853UST+ Zasilacz typ A 5V/1A 1280 x 800 WXGA (Opcjonalny dla modułu dotykowego PointWrite) Układ wyświetlania System Single-chip DLP™... - Page 23 Spesifikasyonlar Tüm spesifikasyonlar, haber verilmeden değiştirilebilir. Optik Denetim Çözünürlük MX852UST+ Tip B mini USB 1024 x 768 XGA (PointWrite takımı için isteğe bağlı) MW853UST+ Tip A güç kaynağı 5V /1A 1280 x 800 WXGA (PointWrite Touch modülü için isteğe bağlı) Görüntü...
-
Page 24: Technické Údaje
Technické údaje Veškeré technické údaje se mohou změnit bez předchozího upozornění. Optické parametry Ovládání Rozlišení MX852UST+ Mini USB typ B 1024 x 768 XGA (Volitelný pro sadu PointWrite) MW853UST+ Napájecí zdroj 5 V / 1 A s konektorem Typ A 1280 x 800 WXGA (volitelný... - Page 25 สำหรั บ การตั ง ้ ค่ า ชุ ด บนโปรเจคเตอร์ โปรดดู ค ู ่ ม ื อ PointWrite PointWrite ในกล่ อ งบรรจุ อ ุ ป กรณ์ ท ี ่ ค ุ ณ ซื ้ อ มา...
- Page 26 規 格 所有規格如有變更，恕不另行通知。 光學 控制 解析度 B 型迷你USB MX852UST+ (供 PointWrite 工具組選購) 1024 x 768 XGA A 型電源供應 5V /1A MW853UST+ (供 PointWrite 觸控模組選購) 1280 x 800 WXGA 顯示系統 RS-232 序列控制 單片式 DLP™ 系統 9 pin x 1 鏡頭焦距 / 編號 紅外線接收器...
- Page 27 规 格 所有规格如有更改，恕不另行通知。 光学 控制 分辨率 B 型Mini USB MX852UST+ （对于PointWrite套件为选购） 1024 x 768 XGA MW853UST+ A型电源5V /1A （对于PointWrite Touch模式为选购） 1280 x 800 WXGA 显示系统 RS-232串行控制 单片DLP™系统 9针 x 1 镜头光圈值 红外线接收器 x 1 F = 2.5, f = 5.1毫米 LAN 控制 清晰的焦距范围...
- Page 28 仕 様 すべての仕様は予告なしに変更することがあります。 光学 コントロール 解像度 タイプBミニUSB MX852UST+ (PointWriteキットのオプション) 1024 x 768 XGA タイプA電源供給5V/1A MW853UST+ (PointWriteタッチモジュールのオプション) 1280 x 800 WXGA RS-232 シリアルコントロール 表示システム 9 ピン x 1 単一チップDLP™ システム IR 受信装置 x 1 レンズ F/ 番号 LAN コントロール F = 2.5, f = 5.1 mm RJ45 x1 クリアなフォーカス範囲...
- Page 29 사 양 모든 사양은 사전 통보 없이 변경될 수 있습니다. 광학 사양 제어 해상도 MX852UST+ 타입 B 미니 USB 1024 x 768 XGA (PointWrite 키트용 옵션) MW853UST+ 타입 A 전원 공급장치 5V /1A 1280 x 800 WXGA (PointWrite 터치 모듈용 옵션) RS-232 직렬...
