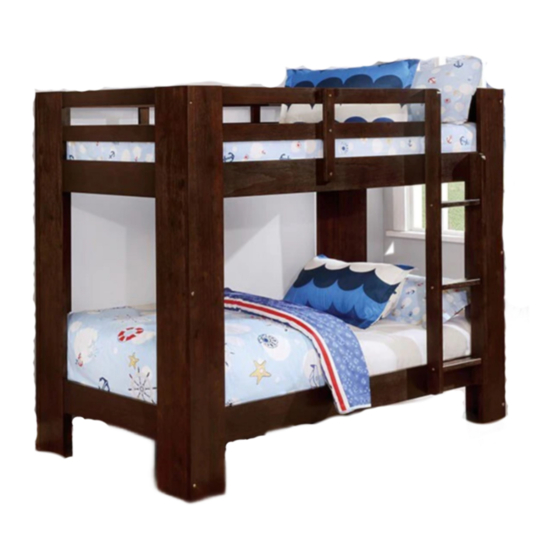

MODEL #
FOA-BK972
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America FOA-BK972
Summary of Contents for Furniture of America FOA-BK972

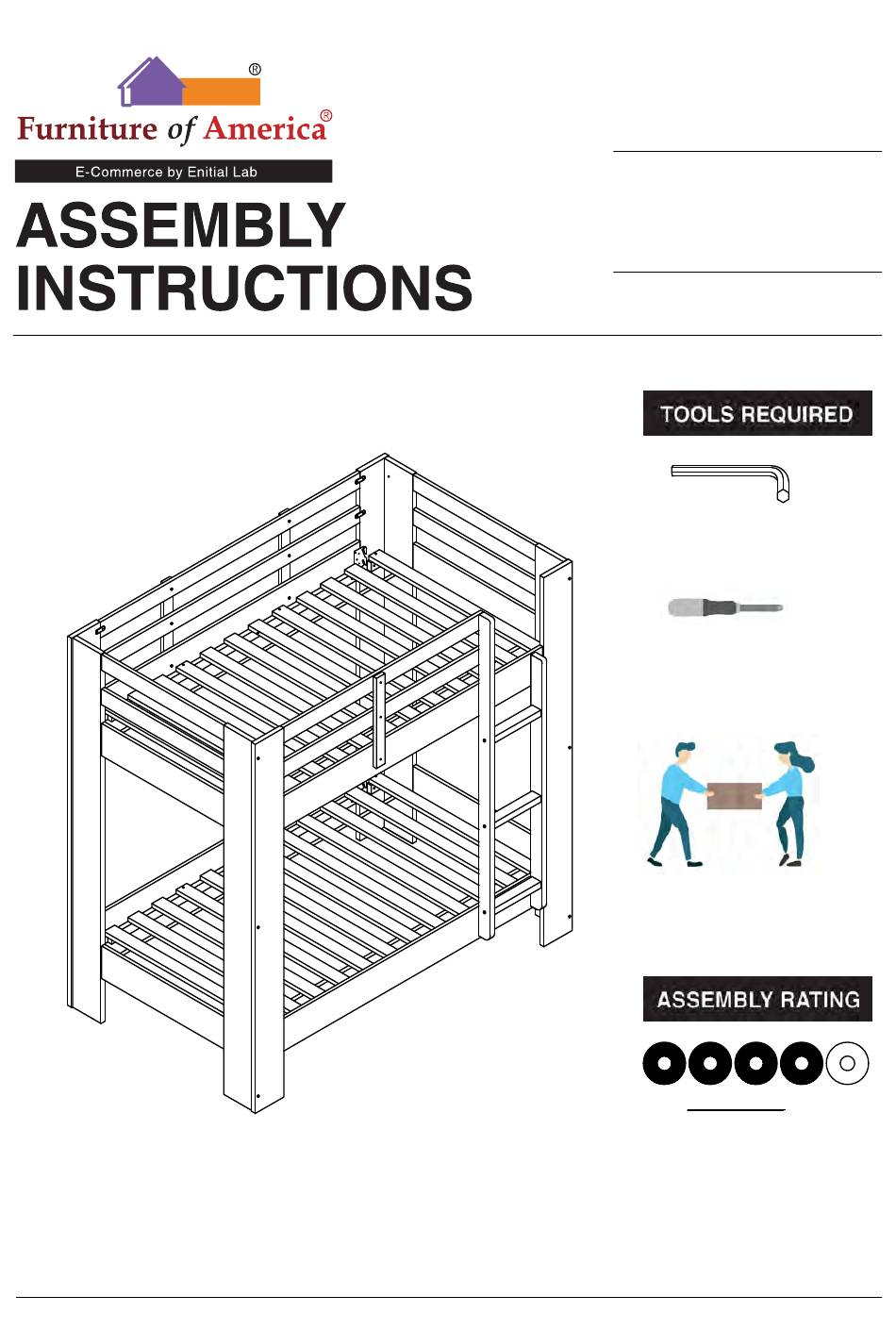

- Page 1 MODEL # FOA-BK972 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 14...
- Page 5 BUNK BED FOA-BK972 #1 2pcs #2 2pcs #3 1pc #4 1pc Headboard Foot Of The Bed Foot Of The Bed Foot Of The Bed #5 1pc #6 1pc #7 1pc #8 1pc Lower Front Lower Back Upper Front Upper Back...
- Page 6 #D 9pcs #A 12pcs #B 12pcs #C 6pcs Bolt Bolt Barrel Nut Bolt Ø1/4" x 1-3/16" Ø1/4" x 3-1/8" Ø1/4" x 1/2" Ø1/4" x 1-9/16" #H 24pcs #E 16pcs #F 9pcs #G 6pcs Bolt Hex Cap Screw Wood Dowel Ø1/4" x 3/4" Ø10x40mm Ø1/4"...
- Page 7 CM-BK972 is packed in 3 cases Carton Disignation Part Hardware Headboard (2pcs) Foot Of The Bed (2pcs) CM-BK972-1 Foot Of The Bed(L) Foot Of The Bed(R) Lower Front Side #A x 12pcs Rail Lower Back Side #B x 12pcs Rail #C x 6pcs Upper Front Side Rail...
- Page 8 ASSEMBLY INSTRUCTIONS Insert dowels (#H) to headboard (#1), then align HB legs (#2,3) to the headboard (#1). Secure by using bolts (#A) onto barrel nuts (#B). Part #1 x1pc Part #2 x1pc Part #3 x1pc Hardware #A x6pcs Hardware #B x6pcs Hardware #H x4pcs Insert dowels (#H) to headboard (#1), then...
- Page 9 ASSEMBLY INSTRUCTIONS Insert dowels (#H) onto back guardrails (#9), then align and attach rails (#5,6,7,8,9) to the headboard legs (#2,3,4). Part #5 x1pc Part #6 x1pc Part #7 x1pc Part #8 x1pc Part #9 x2pcs Hardware #H x8pcs Secure rails by using bolts (#E) with Hardware #E x16pcs screws (#K).
- Page 10 ASSEMBLY INSTRUCTIONS Insert dowels (#H) to guardrails (#10), then attach guardrails (#10) to HB leg. Part #10 x2pcs Hardware #H x4pcs Align guardrail supports (#11) to the guardrails, then secure by using bolts (#D) onto hex caps (#F). Part #11 x3pcs Hardware #D x9pcs Hardware...
- Page 11 ASSEMBLY INSTRUCTIONS Align ladder rungs (#14) to the ladder rails (#12,13), then secure by using screws (#G). Part #12 x1pc Part #13 x1pc Part #14 x3pcs Hardware #G x6pcs Insert dowels (#H) to ladder, then align ladder to bunk bed. Secure by using bolts (#C).
- Page 12 ASSEMBLY INSTRUCTIONS Align brackets (#I) to the guardrails and HB legs, then secure by using screws (#K). Hardware #I x6pcs Hardware #K x12pcs Align slats (#15) to the bunk bed, then Part #15 x2set secure by using screws (#J). Hardware #J x16pcs 12 / 14...
- Page 13 ASSEMBLY INSTRUCTIONS 13 / 14...
- Page 14 13 / 14 1 4 / 14...
