Summary of Contents for Furniture of America Rianna FOA-BT8343

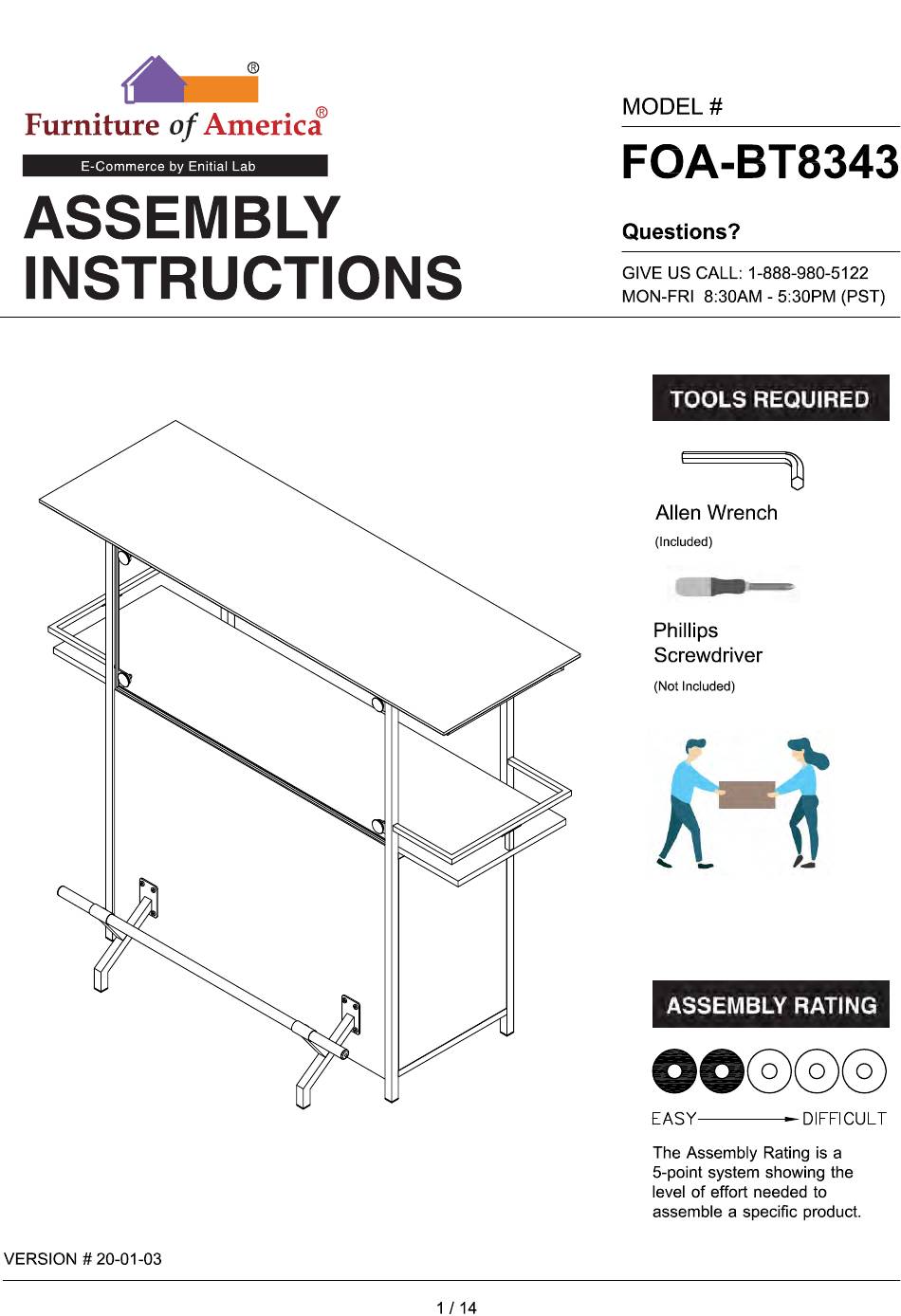

- Page 1 2 - People Recommended...
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 4...
- Page 5 CAM LOCK FASTENER ASSEMBLY INSTRUCTIONS Note : Every cam lock bolt must have a cam lock connector in order to fasten the cam bolt parts together. cam lock screwdriver Screw the cam Insert the cam bolt into the bolt into panel. bolt hole of joint panel.
- Page 7 HARDWARE...
- Page 8 HARDWARE...
- Page 9 Align bottom crossbars (#5) and top panel (#11) to the frames (#1,2), then secure by using bolts (#J). Attach caps (#B) to the bottom of the frame (#1,2). Secure bottom panel (#16) to the crossbars by using bolts (#I). Align small middle panel (#17) to the bottom panel (#16), then secure by using screws (#N).
- Page 10 Secure cam bolts (#I) onto large middle panel (#13), then align the large middle panel (#13) to small middle panel (#17). Secure middle panels (#13,17) by using cam locks (#G). Secure middle panel (#13) to frames by using screws (#K). Align side panels (#14,15) to the frames, then secure by using screws (#M).
- Page 11 Align glass holders (#9) to top panel, then secure by using screws (#M). Align front panel (#12) to the frame, then secure by using bolts (#J).
- Page 12 Align bottle racks (#8) to the unit, then secure by using screws (#M). Align support crossbars (#4) to the decoration frame (#3), then secure by using bolts (#J). Align decoration frame (#3) to the unit, then secure by using screws (#K).
- Page 13 Align front glass (#10) to the unit, then secure by using cylinder nuts (#A) with washers (#D). Align foot rest legs (#6) to the unit, then secure by using screws (#J). Attach caps (#B) to the legs (#6). Slide the foot rest bar (#7) through the legs (#6), then secure by using bolts (#L).
- Page 14 Attach shelf bolts (#E) to the desires shelf (#18) height.
