Furniture of America Lillian FOA7925Q Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
VERSION # 20-03-1 6
1 / 10
MODEL #
FOA 7925Q
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
Wrench
( Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lillian FOA7925Q and is the answer not in the manual?

Questions and answers

Related Manuals for Furniture of America Lillian FOA7925Q

Summary of Contents for Furniture of America Lillian FOA7925Q

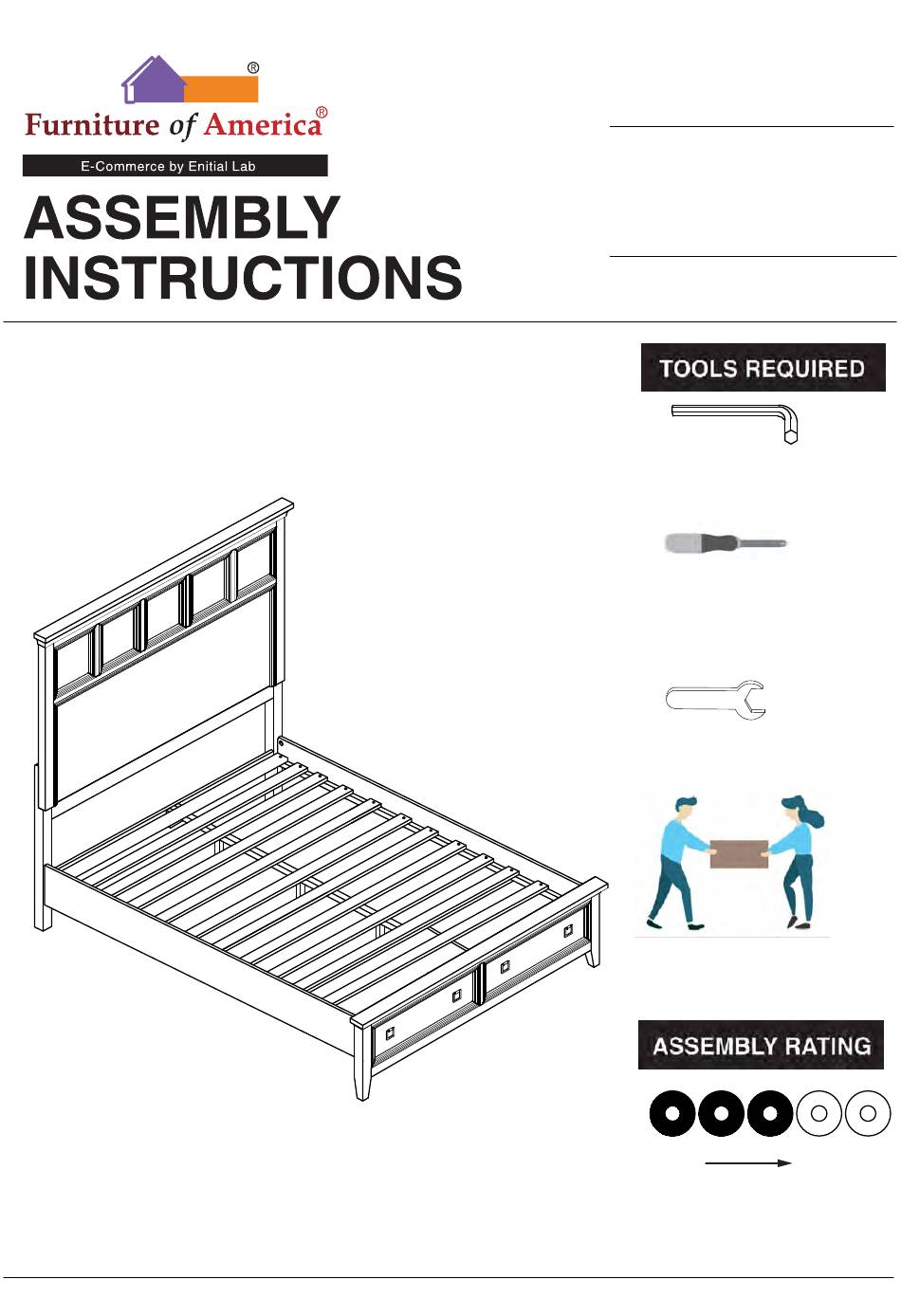

  • Page 1 MODEL # FOA 7925Q Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) Wrench ( Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to VERSION # 20-03-1 6 assemble a specific product.
  • Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
  • Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
  • Page 4 4 / X X X X X X X 1 0...
  • Page 5 QUEEN BED FOA 7925Q #5 1pc #1 1pc #2 1pc #3 1pc #4 1pc Headboard Right Headboard Leg Left Headboard Leg Stretcher Top Stretcher Middle #6 1pc #9 1 set #7 2pc #8 4pcs #10 1pc Storage Crossbar Slat Support Leg Slats(13pcs) Footboard Side Rail...
  • Page 6 FOA 7925Q is packed in 3 cases Disignation Part Hardware Carton Headboard #A 10pcs Right Headboard Leg #B 10pcs Left Headboard Leg #C 10pcs FOA 7925Q-HB Stretcher Top #D 1pc Stretcher Middle Storage Footboard FOA 7925Q-FB Slat Support Leg Slats(13pc) #E 8pcs Side Rail #F 8pcs...
  • Page 7 ASSEMBLY INSTRUCTIONS Exploded View Part #2 x1pc Part #3 x1pc Part #4 x1pc Align stretchers (#4,5) to the HB legs (#2,3), then secure by using bolts (#A) with washers Part #5 x1pc (#B,C). Hardware #A x4pcs Hardware #B x4pcs Hardware #C x4pcs 7 / 10...
  • Page 8 ASSEMBLY INSTRUCTIONS Align HB legs to the headboard, then secure by using bolts (#A) with washers (#B,C). Please ensure that the dowel on headboard (#1) is inserted to the top stretcher. Part #1 x1pc Hardware #A x6pcs Hardware #B x6pcs Hardware #C x6pcs #A #C Part #8 x 4pcs...
  • Page 9 ASSEMBLY INSTRUCTIONS Part #6 x1pc Part #7 x 2pcs Hardware #E x8pcs Hardware #F x8pcs Hardware #G x8pcs Hardware #H x8pcs Attach threaded bolts (#E) to the headboard and footboard (#6), then align side rails (#7) to the threaded bolts (#E).
  • Page 10 ASSEMBLY INSTRUCTIONS Part #9 x 1 set Hardware #J x14pcs Align slats (#9) to the bed, then secure by using screws (#J). 10 / 10...
  • Page 11 MODEL # FOA 7925CK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) Wrench ( Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
  • Page 12 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
  • Page 13 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
  • Page 14 4 / X X X X X X X 1 1...
  • Page 15 CAL.KING BED FOA 7925CK #1 1pc #4 1pc #5 1pc #2 1pc #3 1pc Right Headboard Leg Left Headboard Leg Headboard Stretcher Top Stretcher Middle #6 1pc #7 2pc #9 1 set #8 8pcs #10 2pcs Storage Crossbar Slats(13pcs) Side Rail Slat Support Leg Footboard 390x30x30...

  • Page 16: Exploded View

    #G 8pcs #H 8pcs #F 8pcs #I 10pcs #J 1pc Spring Washer Hex Nut 5/16'' U-Square Flat Bolt Ø 1 / 4 " x 1-3/8" Wrench x 12mm x 6mm 5/16'' x Ø11x1.1mm 12mm x 87mm Washer 5/16'' #K 22pcs Long Screw Ø8 x 30mm Exploded View...
  • Page 17 FOA 7925CK is packed in 3 cases Disignation Part Hardware Carton Headboard #A 10pcs Right Headboard Leg #B 10pcs Left Headboard Leg #C 10pcs FOA 7925CK-HB Stretcher Top #D 1pc Stretcher Middle Storage Footboard FOA 7925CK-FB Slat Support Leg Slats(13pc) #E 8pcs Side Rail #F 8pcs...
  • Page 18 ASSEMBLY INSTRUCTIONS Align stretchers (#4,5) to the HB legs (#2,3), then secure by using bolts (#A) Part #2 x1pc with washers (#B,C). Part #3 x1pc Part #4 x1pc Part #5 x1pc Hardware #A x4pcs Hardware #B x4pcs Hardware #C x4pcs Part #1 x1pc Hardware #A x6pcs Hardware #B x6pcs...
  • Page 19 ASSEMBLY INSTRUCTIONS Align and attacher support legs (#8) to the crossbars (#10). Part #8 x 4pcs Part x1pc Part #6 x1pc Part #7 x 2pcs Hardware #E x8pcs Hardware #F x8pcs Hardware #G x8pcs Hardware #H x8pcs Attach threaded bolts (#E) to the headboard and footboard (#6), then align side rails (#7) to the threaded bolts (#E).
  • Page 20 ASSEMBLY INSTRUCTIONS Align slats to the bed, then secure by using screws (#K). Hardware #K x 4pcs Hardware #I x 10pcs Align rail tops (#11) to the side rails, then secure by using bolts (#I). 10 / 11...
  • Page 21 ASSEMBLY INSTRUCTIONS Align slats (#9) to the side rails, then secure by using screws (#K). Part #9 x 1set Hardware #K x 18pcs 11 / 11...
  • Page 22 MODEL # FOA 7925EK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) Wrench ( Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
  • Page 23 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
  • Page 24 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
  • Page 25 4 / X X X X X X X 1 0...
  • Page 26 E.KING BED FOA 7925EK #5 1pc #1 1pc #2 1pc #3 1pc #4 1pc Headboard Right Headboard Leg Left Headboard Leg Stretcher Top Stretcher Middle #6 1pc #9 1 set #7 2pcs #8 8pcs #10 2pcs Storage Crossbar Slat Support Leg Slats(13pcs) Footboard Side Rail...
  • Page 27 FOA 7925EK is packed in 3 cases Disignation Part Hardware Carton Headboard #A 10pcs Right Headboard Leg #B 10pcs Left Headboard Leg #C 10pcs FOA 7925EK-HB Stretcher Top #D 1pc Stretcher Middle Storage Footboard FOA 7925EK-FB Slat Support Leg Slats(13pc) #E 8pcs Side Rail #F 8pcs...
  • Page 28 ASSEMBLY INSTRUCTIONS Exploded View Part #2 x1pc Part #3 x1pc Align stretchers (#4,5) to the HB legs (#2,3), Part #4 x1pc then secure by using bolts (#A) with washers Part #5 x1pc (#B,C). Hardware #A x4pcs Hardware #B x4pcs Hardware #C x4pcs 7 / 10...
  • Page 29 ASSEMBLY INSTRUCTIONS Align HB legs to the headboard, then secure by using bolts (#A) with washers (#B,C). Please ensure that the dowel on headboard (#1) is inserted to the top stretcher. Part #1 x1pc Hardware #A x6pcs Hardware #B x6pcs Hardware #C x6pcs #A #C Part #8 x 4pcs...
  • Page 30 ASSEMBLY INSTRUCTIONS Part #6 x1pc Part #7 x 2pcs Hardware #E x8pcs Hardware #F x8pcs Hardware #G x8pcs Hardware #H x8pcs Attach threaded bolts (#E) to the headboard and footboard (#6), then align side rails (#7) to the threaded bolts (#E). Secure by using hex nuts (#F) with washers (#H,G).
  • Page 31 ASSEMBLY INSTRUCTIONS Part #9 x 1 set Hardware #J x 18pcs Align slats (#9) to the bed, then secure by using screws (#J). 10 / 10...
