VERSION # 21-05-03
1 / 11

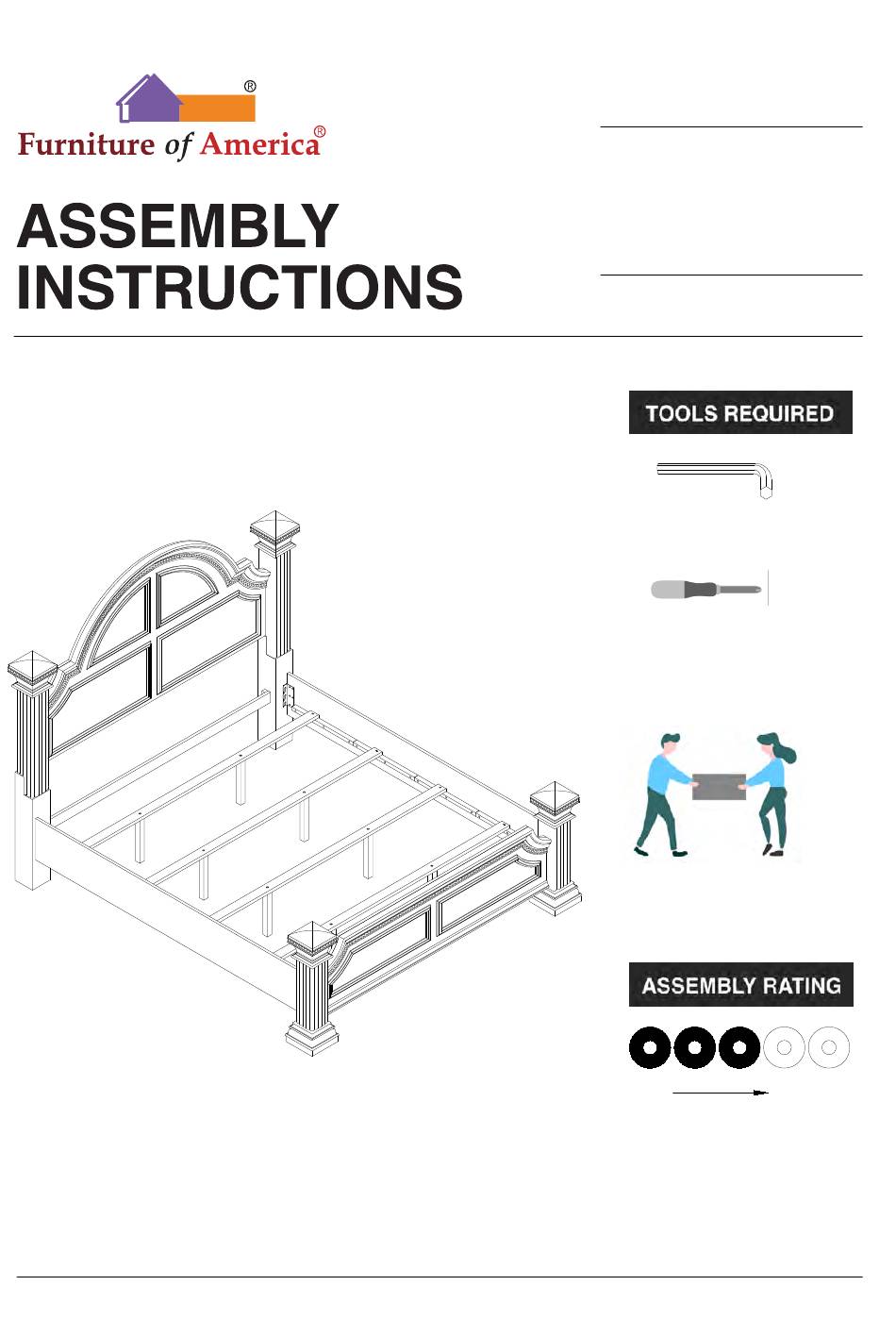

MODEL #
FOA7144EK
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America FOA7144EK
Summary of Contents for Furniture of America FOA7144EK
- Page 1 MODEL # FOA7144EK Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 11...
- Page 5 FOA7144EK #1 1pc #2 4pcs #3 2pcs #4 1pc Support Rail Headboard Finial HB Leg(L&R) #6 2pcs #5 1pc #7 2pcs #8 4pcs Footboard FB Leg FB Post(L&R) Slat #9 8pcs #10 2pcs Ø1/4" Slat Support Side Rail 35x35x300mm #C 12pcs...
- Page 6 #E 4pcs #F 4pcs #G 2pcs #H 12pcs Lock Washer Flat Washer Screw Allen Key M4 Ø1/4"x10mm #4 x 35mm Ø1/4"x13mm #I 12pcs #K 8pcs Screw Bolt #4 x 30mm Ø5/16" x 1" 6 / 11...
- Page 7 FOA7144EK is packed in 3 cases Disignation Part Hardware Carton #A x 12pcs Headboard #B x 4pcs #C x 12pcs Finial #D x 12pcs #E x 4pcs Headboard Leg (L&R) #F x 4pcs #G x 1pc Support Rail #H x 12pcs...
- Page 8 ASSEMBLY INSTRUCTIONS Attach finials (#2) to the HB legs (#3R/L). Part #1 x1pc Part #2 x2pcs Part #3 x2pcs Hardware #A x6pcs Hardware #C x6pcs Hardware #D x6pcs Hardware #H x4pcs Align HB legs (#3R/L) to the headboard (#1), then secure by using bolts (#A) with washers (#C,D).
- Page 9 ASSEMBLY INSTRUCTIONS Align finials (#2) to the FB legs (#6R/L), then secure by Part #2 x2pcs using screws (#H). Part #5 x1pc Part #6 x2pcs Hardware #A x6pcs Hardware #C x6pcs Hardware #D x6pcs Hardware #H x4pcs Align footboard (#5) to the FB legs (#6R/L), then secure by using bolts (#A) with washers (#C,D).
- Page 10 ASSEMBLY INSTRUCTIONS Align side rails (#10) to the headboard (#1) and footboard (#5), then secure by using bolts (#I). Part #10 x2pcs Hardware #I x12pcs Part #8 x1pc Part #9 x2pcs Attach support legs (#9) to the slats (#8). Turn right (clockwise) to tighten 10 / 11...
- Page 11 ASSEMBLY INSTRUCTIONS Turn right (clockwise) to tighten Hardware #K x8 pcs Align slats (#8) to the side rails, then secure by using screws (#K). 11 / 11...
