Summary of Contents for W&H Assistina One

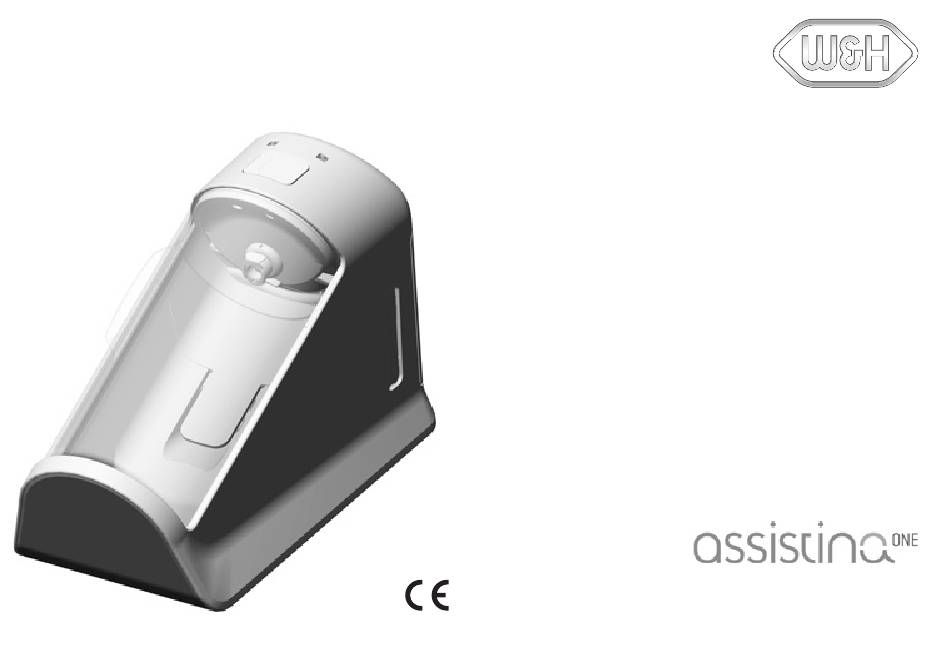

- Page 1 Instructions for Use MB-301...
-
Page 2: Table Of Contents
Contents Symbols .......................................... 4 1. Introduction ....................................... 7 2. Unpacking ........................................9 3. Scope of delivery ..................................... 10 4. Safety notes ......................................11 5. Description........................................12 Front panel ......................................12 Quick ISO/Quick RM adaptor ................................13 Rear panel/underside ..................................14 6. Start-up ........................................15 Inserting the swivel window ................................ - Page 3 Contents 8. Cleaning ........................................29 Preparation ......................................30 Swivel window ..................................... 31 Start-up after cleaning ..................................32 9. Maintenance ......................................33 Replacing O-rings ....................................33 Replacing the air filter ..................................34 10. W&H Accessories and spare parts ............................... 35 11. Servicing ........................................ 37 12.
-
Page 4: Symbols
Symbols in the Instructions for Use WARNING! ATTENTION! General explanations, (risk of injury) (to prevent damage occurring) without risk to persons or property CE mark Do not dispose of with domestic waste... - Page 5 Symbols on the medical device Catalogue number Consult Instructions Do not dispose of with for Use domestic waste Serial number Date of manufacture Data Matrix code for product information including UDI (Unique Device Identification) CE mark Manufacturer Medical Device...
- Page 6 Symbols on the packaging/cartridge This way up CE mark Consult Instructions for Use Trademark of RESY OfW GmbH Fragile, handle with care Keep away from for identification of recyclable heat transport and outer packaging of paper and cardboard Keep dry Use by “Der Grüne Punkt”...
-
Page 7: Introduction
1. Introduction For your safety and the safety of your patients Prior to initial use please read the Instructions for Use. These explain how to use your medical device and guarantee a smooth and efficient operation. Observe the safety notes. Intended use Unit for cleaning the spray channels and lubricating the moving parts of dental transmission instruments, turbines, air motors and air-driven dental scalers. - Page 8 Introduction Responsibility of the manufacturer The manufacturer can only accept responsibility for the safety, reliability and performance of the medical device when it is used in compliance with the following directions: > The medical device must be used in accordance with these Instructions for Use. >...
-
Page 9: Unpacking
2. Unpacking W&H packaging is environmentally friendly and can be Remove the inserts. disposed of by industrial recycling companies. However, we recommend that you keep the original packaging. Lift out the medical device and swivel window. Remove the cardboard box with the: >... -
Page 10: Scope Of Delivery
3. Scope of delivery W&H Assistina One (MB-301) REF 30398001 REF 30398002 REF 30398003 REF 02697000 Air connection hose REF 08064970 One Care SET MB-301: > W&H Activefluid cartridge, MC-302, 200 ml > W&H Service Oil F1 cartridge, MD-302, 200 ml >... -
Page 11: Safety Notes
4. Safety notes Please observe the following instructions under all circumstances > Only set up the product in sufficiently well ventilated rooms! > Always close the sliding window before you use the medical device! Place the medical device on a flat, level surface. Process fluids >... -
Page 12: Description
5. Description Front panel Cartridge compartment for Cartridge compartment for W&H Service Oil F1, MD-302 W&H Activefluid, MC-302 Viewing window for ball Viewing window for ball W&H Service Oil F1, MD-302 W&H Activefluid, MC-302 Quick Connect by W&H Start button Fill level indicator Fill level indicator W&H Service Oil F1, MD-302... -
Page 13: Quick Iso/Quick Rm Adaptor
Description Quick ISO/Quick RM adaptor Quick ISO adaptor Quick RM adaptor Release button Union nut O-rings O-rings... -
Page 14: Rear Panel/Underside
Description Rear panel/underside Abdeckung Filterfach Cartridge Connecting socket for Filter compartment cover air connection hose compartment cover... -
Page 15: Start-Up
6. Start-up Inserting the swivel window Insert the swivel window. -
Page 16: Inserting/Removing A Filter
Start-up Inserting/removing a filter > Check the filter for damage, e.g. vents, seal. > Only perform the maintenance process with a functional filter. Turn the medical device over. Push the filter in until the limit stop is reached. ... -
Page 17: Inserting/Removing A Cartridge
Start-up Inserting/removing a cartridge The cartridges must be at room temperature when they are inserted. The cartridge spike in the medical device is sharp. Be careful not to injure yourself on the projecting spike. Open the cartridge Removing a cartridge compartment cover Pull out the cartridge. -
Page 18: Connecting/Disconnecting The Air Connection Hose
Start-up Connecting/disconnecting the air connection hose Use only non-contaminated, oil-free, dry and filtered compressed air according to ISO 7494-2. Replace the filter if contaminated. Connect the air connection hose. Disconnect the air connection hose. ... -
Page 19: Initial Filling
Start-up Initial filling Carry out the initial filling without a Quick ISO/Quick RM adaptor and transmission instrument. Close swivel window. Press the Start button. > The start button returns to its initial position with an audible click. > Press the start button again after this. - Page 20 Start-up Initial filling Repeat the initial filling 40 – 50 times. > Take note of the position of the start button. 40 – 50 x > A green ball appears in each of the two viewing windows. > After a few seconds, both balls will sink again. >...
-
Page 21: Test Run
Start-up Test run > Place a disinfected transmission instrument onto the Quick Connect. > Start the Assistina One. The transmission instrument will be slightly moist when you take it out. It then needs to be manually disinfected and sterilized. In the event of operating malfunctions (e.g., vibrations, unusual noise, overheating, failure or leakage) stop the medical... -
Page 22: Operation
7. Operation General Wear protective clothing, safety glasses, face mask and gloves. Refer to the »hygiene and maintenance« instructions in the instructions for use of the transmission instruments. -
Page 23: Loading/Removing With Quick Iso Adaptor
Operation Loading/removing with Quick ISO adaptor Replace damaged or leaking O-rings immediately. Loading the transmission instruments with ISO connection Push the transmission instrument onto the adaptor, with the coolant outlet facing downwards. For air motors, set the direction of rotation via the switching ring to clockwise or anti-clockwise. - Page 24 Operation Loading/removing with Quick ISO adaptor Removing the transmission instruments with ISO connection Press the release button and pull off the transmission instrument with adaptor. Tip the release button on the adaptor forwards and remove the transmission instrument.
-
Page 25: Loading/Removing With Quick Rm Adaptor
Operation Loading/removing with Quick RM adaptor Loading of the transmission instruments and/or adaptors with fixed RM connection Push on the transmission Push on the Quick RM instrument and/or adaptor adaptor with transmission on the Quick RM adaptor and instrument or, if applicable, tighten the union nut the adaptor with... -
Page 26: Maintenance Process
Operation Maintenance process The amount of W&H Activefluid, MC-302 and W&H Service Oil F1, MD-302 used in the maintenance process is carefully metered. Close swivel window. Press the Start button. > The maintenance process runs automatically and takes approx. -
Page 27: Lubrication Of The Chucking System
Operation Lubrication of the chucking system > Remove the rotary instrument. > Use the Quick ISO adaptors REF 06422600 and REF 02693000. Insert the adaptor with the maintenance attachment facing downwards. Align the instrument with the outlet. - Page 28 Operation Lubrication of the chucking system Press the Start button. > The lubrication runs automatically and takes approx. 20 seconds. > A green ball appears in each of the two viewing windows. > The balls sink again. > The lubrication has completed successfully. Remove the adaptor.
-
Page 29: Cleaning
8. Cleaning the Assistina One > Follow your local and national laws, directives, standards and guidelines for cleaning and disinfection. > W&H recommends cleaning the medical device at least once daily or as required. Wear protective clothing, safety glasses, face mask and gloves. -
Page 30: Preparation
Cleaning the Assistina One Preparation Disconnect the air connection hose. Remove swivel window. Close swivel window. Remove swivel window. P ush swivel window upwards. ... -
Page 31: Swivel Window
Cleaning the Assistina One Manual cleaning of the interior and exterior Clean the chamber with a dry cloth. Wipe down the exterior and the chamber with disinfectant. Swivel window Manual cleaning of the interior and exterior Rinse the sliding window off with running tap water (<35°C / 95°F) and wipe down with disinfectant. -
Page 32: Start-Up After Cleaning
Cleaning the Assistina One Start-up after cleaning Position the swivel window. Connect the air connection hose. I nsert the swivel window. ... -
Page 33: Maintenance
9. Maintenance Replacing O-rings Replace damaged or leaking O-rings immediately. Do not use sharp tools! Firmly squeeze the O-ring between your thumb and index finger so that it forms a loop. Pull off the O-ring. Slide on a new O-ring. -
Page 34: Replacing The Air Filter
Maintenance Replacing the air filter Switch off the central air supply before replacing the air filter. > Replace the air filter whenever it is dirty or at least once per year. > Only use clean, filtered compressed air. Remove the air connection ... -
Page 35: W&H Accessories And Spare Parts
10. W&H Accessories and spare parts Use only original W&H accessories and spare parts or accessories approved by W&H! 06395100 06422600 02693000 Quick RM adaptor Quick ISO adaptor Adaptor for lubricating the chucking system For other adapters and a full system overview, scan the QR code... - Page 36 W&H Accessories and spare parts 02697000 08064970 02060100 Air connection hose 2 m One Care SET O-Ring, Roto Quick adaptor, large MB-301 02060200 O-Ring, Roto Quick adaptor, small 03006100 O-Ring, Quick RM and Quick ISO adaptor, large 01208300 O-Ring, Quick RM and Quick ISO adaptor, small 02695700 02675200...
-
Page 37: Servicing
11. Servicing Repairs and returns In the event of operating malfunctions immediately contact an authorized W&H service partner. Repairs and maintenance work must only be undertaken by an authorized W&H service partner. Always return equipment in the original packaging! -
Page 38: Technical Data
12. Technical data Assistina One MB-301 Air consumption: approx. 50 Nl/min. Operating pressure: 5 – 10 bar (controlled via an integrated, automatic pressure controller) Volume: 60 dB Dimensions in mm (WxDxH): 166 x 383 x 243 mm Weight: 2.2 kg Capacity: 200 ml W&H Activefluid, MC-302... -
Page 39: Disposal
13. Disposal Ensure that the parts are not contaminated on disposal. Follow your local and national laws, directives, standards and guidelines for disposal. > Medical device > Packaging... -
Page 40: Explanation Of Warranty Terms
E x p la na ti on o f war ranty ter ms This medical device has been manufactured with great care by highly qualified specialists. A wide variety of tests and controls guarantee faultless operation. Please note that claims under warranty can only be validated when all the directions in the instructions for use have been followed. -
Page 41: Authorized W&H Service Partners
Authorized W&H service partners Find your nearest W&H service partner at http://wh.com Simply go to the menu option »Service« for full details. Or simply scan the QR code. - Page 42 Manufacturer W&H Dentalwerk Bürmoos GmbH Ignaz-Glaser-Straße 53, 5111 Bürmoos, Austria Form-Nr. 51046 AEN Rev. 000 / 11.05.2022 t + 43 6274 6236-0, f + 43 6274 6236-55 wh.com office@wh.com Subject to alterations...
