Summary of Contents for W&H PROXEO HP-44M

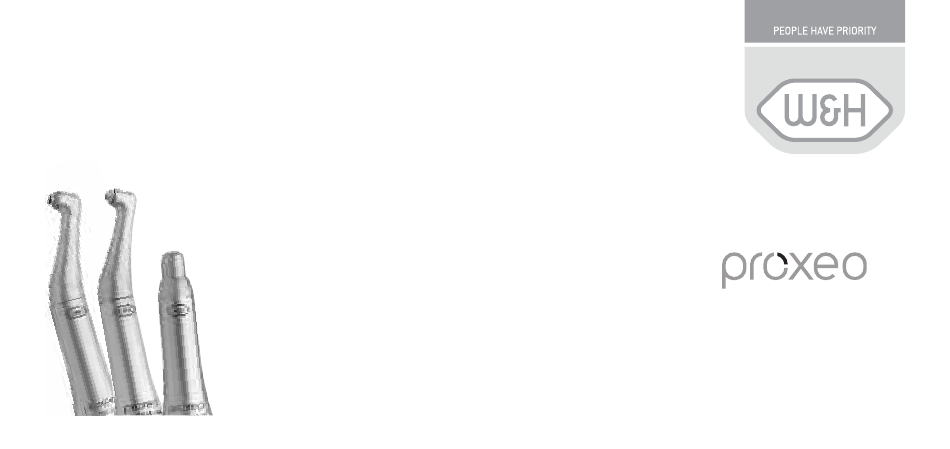

- Page 1 Instructions for Use Handpiece HP-44 M Contra-angle handpieces WP-64 M, WP-64 MU...
-
Page 2: Table Of Contents
Contents W&H Symbols ....................3 1. -
Page 3: W&H Symbols
W&H Symbols W RNING! TTENTION! General Thermo Sterilizable Disposable (risk of injury) (to prevent explanations, washer up to the stated article damage occurring) without risk to disinfectable temperature persons or objects Only for US Data Matrix Code for product identification, e.g. in Caution! Federal law restricts this device to hygienic maintenance process sale by or on the order of a dentist, physician or... -
Page 4: Introduction
1. Introduction Customer satisfaction is the main priority under the W&H quality policy. This W&H product has been developed, manufactured and subjected to final inspection according to legal regulations, quality norms and industry standards. For your safety and the safety of your patients Prior to initial use please read the Instructions for Use. - Page 5 Production according to EU directive This straight/contra-angle handpiece is a medical product according to the EU-directive 93/42/EEC. Skilled application This medical product is intended only for informed use in the medical dental field according to its purpose of use in compliance with the valid health and safety at work regulations, the valid accident prevention regulations as well as in compliance with these Instructions for Use.
-
Page 6: Before Use - Safety Notes
2. Before use – Safety notes > lways ensure operating conditions are correct. > Check the straight/contra-angle handpiece for damage and loose parts prior to use. Hygienic maintenance prior to initial use The straight/contra-angle handpiece is in a clean condition and sealed in PE-film when delivered. Lubricate prior to initial use and sterilise the straight/contra-angle handpiece. -
Page 7: Product Description
3. Product description System young: – Straight handpiece HP-44 M — Nose ˜ contra-angle handpiece WP-64 M ™ Thread System universal: š contra-angle handpiece WP-64 MU › Thread œ Snap-on dapter Key... -
Page 8: Operation
4. Operation ssembly and removal Do not assemble / remove during operation! – Fit the straight/contra-angle onto the motor until it snaps into place. — Check the connection to the motor is secure. ˜ Remove the straight/contra-angle handpiece from the motor by pulling in an axial direction. - Page 9 Disposable heads or cups and brushes > Use only disposable heads or cups and brushes in perfect condition and observe the manufacturer's information. > Only insert or remove the disposable heads or cups and brushes when the motor is at a standstill. >...
- Page 10 To change a disposable head Only use once! – Push the disposable head onto the handpiece axially. lign the groove of the disposable head with the nose of the handpiece. — Insert the disposable head as far as the stop. ˜...
- Page 11 System for Young contra-angle handpieces: WP-64 M The instrument head is fitted with the Young Dental Triple Seal. Only use cups and brushes from Young Dental for the screw-in system. System for Young handpiece: HP-44 M Only use disposable contra-angles with plastic shank for system Doriot. System for universal contra-angle handpieces: WP-64 MU The head of these handpieces is equipped with a sealing system from W&H.
- Page 12 ttaching cups and brushes – screw-in system Only use once. – Block the handpiece drive by inserting the key in the driver. — Screw the cup or brush clockwise as far as possible into the thread of the handpiece head until it is firmly seated.
- Page 13 Removing cups or brushes – screw-in system – Block the handpiece drive by inserting the key in the driver. — Screw the cup or brush anti-clockwise from the thread of the handpiece head. > Dispose of the cups and brushes according to the guidelines for disposable articles.
- Page 14 Screw in the snap-on adaptor Only use cups and brushes once. – Block the handpiece drive by inserting the key in the driver. — Screw the screw-in adapter clockwise as far as possible into the thread of the handpiece head until it is firmly seated.
- Page 15 Unscrew the snap-on adaptor – Block the handpiece drive by inserting the key in the driver. — Pull the cup or brush off the screw-in adapter. ˜ Unscrew the screw-in adapter from the thread of the handpiece head in an anti-clockwise direction. >...
- Page 16 Test run > Use the disposable head, cap or brush. > Start the straight/contra-angle handpiece. > If you observe problems (e.g. vibrations, unusual noise, overheating), stop the straight/contra-angle handpiece immediately and contact an authorized W&H service partner (see page 30).
-
Page 17: Hygienic Maintenance
5. Hygienic Maintenance > Follow your country-specific directives, standards and guidelines for cleaning, disinfection and sterilization. > The straight/contra-angle handpiece can be prepared manually or mechanically. > Wear protective clothing. > Remove the disposable head or cup or brush. > Remove the straight/contra-angle handpiece from the motor. >... - Page 18 Pre-disinfection > If heavily soiled: Clean first with disinfectant cloths. Only use disinfectants that have no proteinfixing effects.
- Page 19 Manual cleaning (internal and external) – Rinse under demineralized water (< 38 °C) with the aid of a brush (brush is not recommended in U.K.) — Then remove any liquid residues (absorbent cloth, blow dry with compressed air). Do not place the handpiece/contra-angle in liquid disinfectant or in an ultrasonic bath!
- Page 20 Manual disinfection > Disinfect using disinfectants, – application of disinfectant by wiping is recommended. > Use only disinfectants which do not contain chlorine and which are certified by officially recognized institutes. For US : Use EP registered disinfectants. > Observe the manufacturer's recommendations regarding the use of disinfectants.
- Page 21 Mechanical cleaning and disinfection internal and external Straight/contra-angle handpiece with this symbol can be cleaned and disinfected in a thermo washer disinfector W&H recommends processing with thermo washer disinfector. Follow the manufacturer’s recommendations for devices and cleaning agents. Lubricate straight/contra-angle handpiece immediately after thermo washer disinfection.
- Page 22 Daily oil service with W&H Service Oil F1, MD-400 > Follow the instructions for use of the oil spray can. Daily oil service with W&H ssistina > Please refer to the Instructions for Use of ssistina. Recommended lubrication cycles > Essential after internal cleaning >...
- Page 23 Test run following oil service – Place the straight/contra-angle handpiece with the instrument tip/head downwards. — Start the straight/contra-angle handpiece for 30 seconds to remove excess oil. > Repeat the entire hygienic maintenance process if dirt emerges. ˜ Wipe the straight/contra-angle handpiece with gauze or a soft cloth.
- Page 24 Sterilization and storage W&H recommends sterilization according to EN 13060, class B > Follow the operating instructions of the manufacturer. > Clean, disinfect and lubricate prior to sterilization. > Wrap the straight/contra-angle handpiece and accessories in sterile goods packaging according to EN 868-5. >...
- Page 25 pproved sterilization methods Observe your country-specific guidelines, standards and requirements. > Steam sterilization class B with sterilizers in accordance with EN 13060. Sterilization holding time a minimum of 3 minutes at 134 °C (273.2 °F) > Steam sterilization class S with sterilizers in accordance with EN 13060. The sterilizer manufacturer must give their express approval for the sterilization of handpieces/contra-angles.
-
Page 26: W&H Ccessories
6. W&H ccessories Use only original W&H accessories and spare parts! Suppliers: W&H partners W&H ssistina 10940021 W&H Service Oil F1, MD-400 (6 pcs) 02038200 Spray head with spray adapter 01957300 04530600 Screw-in adapter for snap-on system selection of cups and brushes will you find: on the homepage from Young Dental: www.youngdental.com from your dental dealer... -
Page 27: Technical Data
7. Technical Data HP-44 M / WP-64 M / WP-64 MU ISO 3964 Motor coupling acc. to standard Transmission ratio (rpm) 5.000 – 10.000 Max. motor speed... -
Page 28: Letter Of Indemnity
Le t te r o f i n d e m n it y This W&H product has been manufactured with great care by highly qualified specialists. wide variety of tests and controls guarantee faultless operation. Please note that claims under warranty can only be validated when all the directions in the instructions for use have been followed. -
Page 30: Uthorized W&H Service Partner
uthorized W&H service partner Visit W&H online at http://wh.com Under »Service«, you will be able to find your closest authorized W&H service partner. If you do not have Internet access, please contact W&H (UK) LIMITED, 6 Stroud Wood Business Centre, Park Street, St lbans, Herts L2 2NJ, United Kingdom t +44 1727 874990, f +44 1727 874628, E-Mail: technical.uk@wh.com W&H Impex Inc., 6490 Hawthorne Drive, Windsor, Ontario, N8T 1J9, Canada t + 1 800 2656277, t +1 519 9446739, f +1 519 9746121, E-Mail: service.ca@wh.com... - Page 32 Manufacturer W&H Dentalwerk Bürmoos GmbH Ignaz-Glaser-Straße 53, 5111 Bürmoos, ustria Form-Nr. 50659 EN ISO 13485, t +43 / 6274 / 6236-0, f +43 / 6274 / 6236-55 93/42/EEC – nnex II Rev. 001 / 02.12.2009 office@wh.com wh.com Subject to alterations...
