W&H Assistina 3x3 Quick Start Manual

Quick Start Manual for Assistina 3x3 / 3x2
This Quick Start Manual is NOT a substitute for the instructions for use Assistina!
If you have any questions or queries please always pull the instructions for use for help.

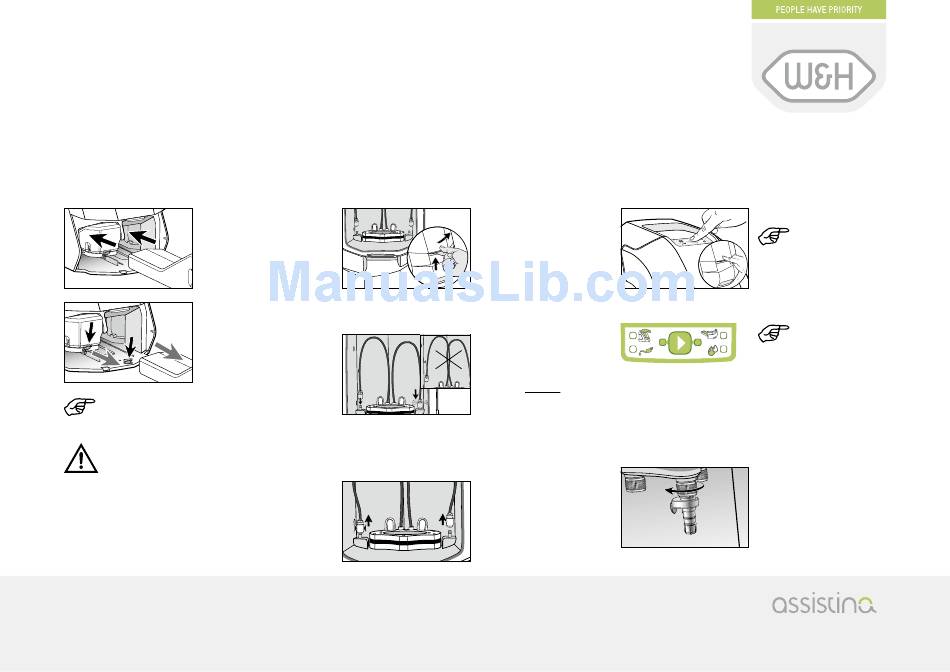

1. Insert / take out cartridge.

a)
I nsert the cartridge.
> Slide in the cartridge.
> You should hear the
cartridge engage.
b)
Take out the cartridge.
> Press the button for
releasing the cartridge.
> Pull out the cartridge.
The cartridges must be at room temperature
when they are inserted.
The cartridge spike is sharp.
Be careful not to injure yourself on the
projecting spike.
W&H Dentalwerk Bürmoos GmbH t + 43 6274 6236-0
Ignaz-Glaser-Straße 53, Postfach 1 f + 43 6274 6236-55
5111 Bürmoos, Austria office@wh.com wh.com

2. Open the cover.

a)
O pen the cover.
3. Insertion / removal of the external cleaning ring
(Assistina 3x3)
a)
I nsertion of the
external cleaning ring.
> Push the connecting
hoses parallel onto the
connection bushes.
> Clamp the connection
hoses into the hose
guides.
b)
R emoval of the
external cleaning ring
> Take out the
connecting hoses from
the hose guides.

4. Carry out initial filling after cartridge change.

a)
Close the cover. Press
If the Assistina unit has been out of use for an extended
period of time (approx. 14 days), repeat the initial filling
process.

5. General notice

a)
Firmly tighten the
union nut anti-
. clockwise by hand
(leak tightness).
the Start button
for approx. 5 sec..
The initial filling
process will take
approx. 2 minutes.
The Start LED light
up green. The
device is ready for
use.
