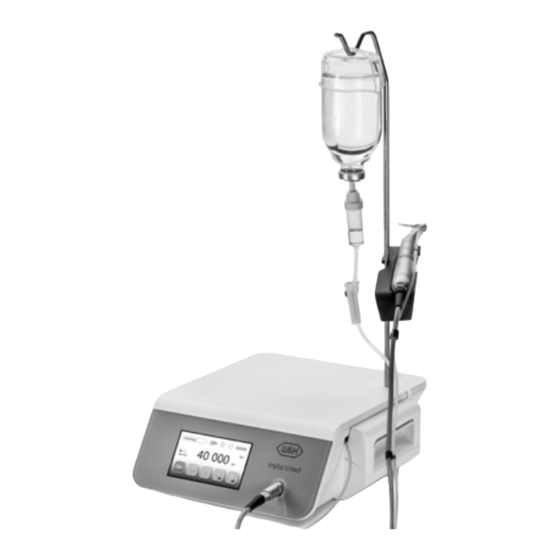

W&H Implantmed SI-1010 Quick Manual

Quick guide for Implantmed SI-1010 / SI-1015 / SI-1023
Start-up – General
S-N2
S-NW
Connect the mains cable Connect motor cable.
and foot control.
Open the pump cover. Close the pump cover.
Insert the irrigation tubing.
Hygiene and maintenance – Motor with cable
 Pre-disinfection
> If heavily soiled, clean first with disinfectant cloths.
 Mechanical cleaning and disinfection
> Use only thermo washer disinfectors with a drying
program for preparation.
Insert the irrigant support. Attach the universal
support and lock it.
Plug the mains cable into Switch on the control unit
a earthed power socket. at the power switch.
 Motor with cable
Do not twist or kink the motor cable! Do not coil it
too tightly!
 Sterilization
W&H recommends sterilization according to EN
13060, class B. Other sterilization methods may
reduce the life span of the motor.
Control unit operation – Main menu
 
Implantology 1
40 000
16
1:1
 
max. 50 Ncm

My favorites
 
Documentation (DOCU)
 
Setup
 
Forward/reverse operation mode
 
Set coolant volume

 Manual cleaning
> Rinse and brush off with demineralized water (< 38°C)
 storage
> Store sterile goods dust-free and dry.
  

rpm
Set program
Set speed / torque
Progress display mode
Programs 1 to 5
